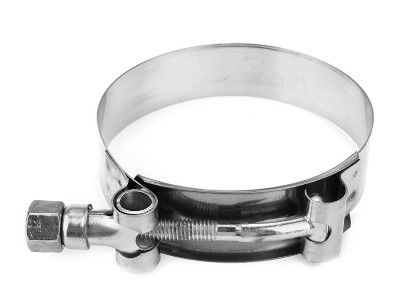

0.5mm Polished Heavy Duty 51-59mm Stainless Steel T Bolt Clamp
Product description: Heavy Duty T-Bolt Clamps provide leak-proof connections in applications that require increased installation torque and band load. Designed for heavy-duty applications, Heavy duty T-Bolt Clamp bolts and self-locking nuts are Zinc plated carbon steel. All other band components are manufactured from 300 series stainless steel with attention to quality craftsmanship to ensure high corrosion resistance. Heavy duty T-bolt clamp Properties: Heavy duty T-Bolt
59mm Stainless Steel T Bolt Clamp
,51mm Stainless Steel T Bolt Clamp
,0.5mm heavy duty t bolt clamps
Product description:
Heavy Duty T-Bolt Clamps provide leak-proof connections in applications that require increased installation torque and band load. Designed for heavy-duty applications, Heavy duty T-Bolt Clamp bolts and self-locking nuts are Zinc plated carbon steel. All other band components are manufactured from 300 series stainless steel with attention to quality craftsmanship to ensure high corrosion resistance.
Heavy duty T-bolt clamp Properties:
- Heavy duty T-Bolt Clamps are designed to provide high tensile strength, durability and corrosion resistance. They are made with a rounded band edge to protect soft hose materials.

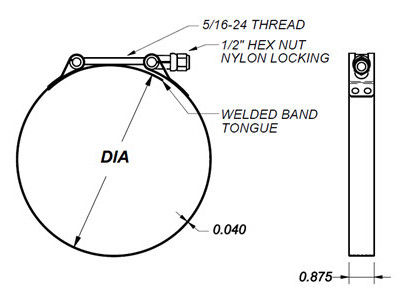

- Heavy duty T-Bolt Clamps provide considerably heavier duty construction than standard T-Bolt band clamps. The band is wider and thicker while the bolt is longer with a larger diameter. Compare the sizes below:
| Standard T-bolt | Heavy duty T-bolt |
| Band width – .75 inch | Band width – .875 inch |
| Band thickness – .025 inch | Band thickness – .04 inch |
| Bolt diameter – .25 inch | Bolt diameter – .3125 inch |
| Bolt length – 2.75 inches | Bolt length – 4.0inches |
The bolts used in our heavy tudy T-bolt clamps are bent to allow a better range along with a longer bolt length. Without this bend, the bolt would bottom out on the band.
Material Options for HD T-Bolt Clamp
Heat-treated alloy steel bolts and self-locking nuts are double-plated, clear chromate finished for high corrosion resistance. All other clamp components are 300 series bright-finished stainless steel. Bands are also available in 316 stainless steel by special order. All stainless steel used is made to AISI and other key global standards
Specification:
Installation:
Proper measurement is extremely important when it comes to selecting the proper size for your application. Please choose your T-Bolt Clamp based on your SILICONE HOSE. If a hose or piping outside diameter is 2-1/8" (54mm). You would need the T-bolt clamp effective size to be 51-59mm so the hose outside diameter would fall in between the effective size range.
|
|
|
| 1 |
|
| 2 |
|
| 3 |
|
| 4 |
|
|
5 |
|
Packing and delivery:
Package method:Separate carton for each, big carton outside or as clients's request
Delivery time:in 3 days if stocks available, new production time depends on ordered quantity
Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)
Shipping terms: FOB, CIF, CNF DDP etc.
Related clamps:
V band clamp, Butt jointed clamp, Sleeve connector, U bolt clamp, Lap jointed clamp, mounting bracket and straps, vertical stack rain cap etc.
Welcome OEM clamp inquiry.
Please contact Lily zhang for details. I am working here from 8:00 am to 5:00 pm on Monday~Friday.
