Product Details:
|
| Product: | 2.5" 63.5mm Chrome Plated Heavy Duty Double Side Open Saddle Muffler Clip | Materials: | Carbon Steel |
|---|---|---|---|
| Surface Finish: | Chrome Plated / Electro-galvanizing | Color: | Silver |
| Daimeter: | 2.5" / 63.5mm | Dimeter Scope: | From Diameter 25mm To 102mm, OEM Acceptable |
| Type: | Muffler Clamps | Intended Use: | Replacement Part |
| Subtype: | U Bolt Pipe Clamp | Packaging Way: | Seaworthy Carton |
| High Light: | 63.5mm Muffler Clip,2.5" Muffler Clip,Chrome Plated Muffler Clip |
||
Good description:

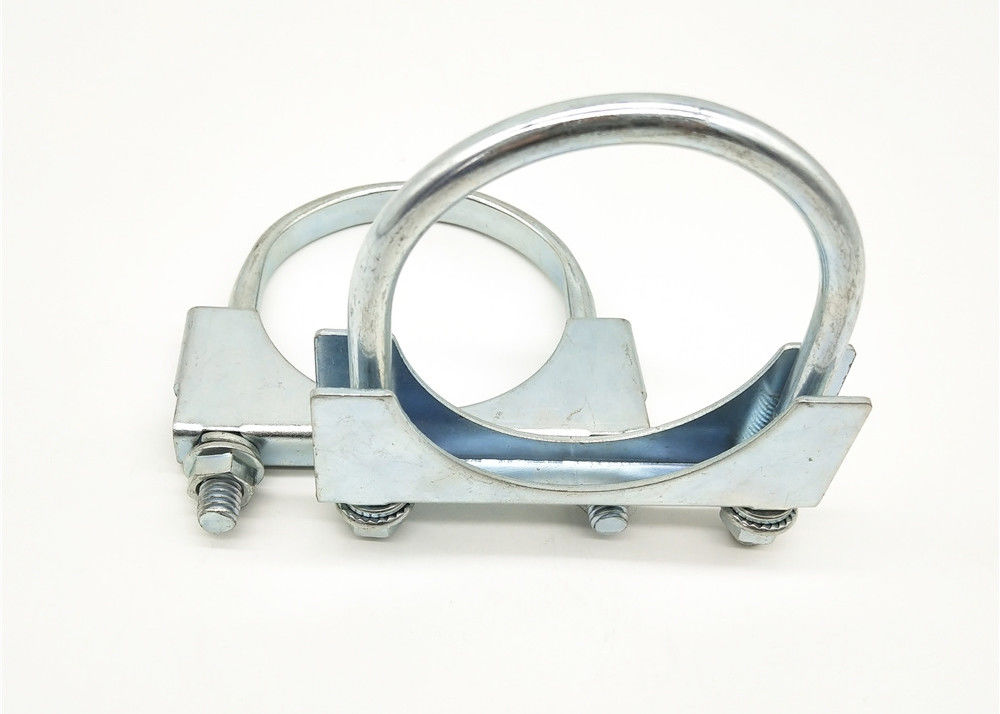

Chrome Plated Heavy Duty Double Side Open Saddle Muffler Clip
| Usage: | Heavy duty double side opening chrome plated saddle muffler clip |
| Surface treatement | Beautiful silver and chromium plating |
| Components | Saddle, U-bolt, 2 serrated flange nuts |
| Various sizes | 2 1 / 2 "(about 6.4 cm), 3" (about 7.6 cm), 3 1 / 2 "(about 8.9 cm), 4" (about 10.2 cm), 5 "(about 12.7 cm), 6" (about 15.2 cm) |
| Application |
A durable exhaust clamp or muffler clamp for trucks. |
| Advantages | This saddle clamp is designed to fit around the exhaust pipe and provide superior sealing capabilities and adjustability while giving you a long service life but low cost. |

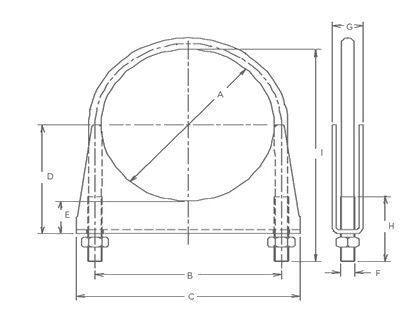

Specification:
| Part number | Pipe diameter(Inch) | Pipe diameter(metric) |
| C01 | 1.5" | 38mm |
| C02 | 1.75" |
44.5mm |
|
C03 |
2" | 50.8mm |
| C04 | 2.25" | 57mm |
| C05 | 2.5" | 63.5mm |
| C06 | 2.75" | 69.9mm |
| C07 | 3" | 76.2mm |
| C08 | 3.25" | 82.5mm |
| C09 | 4" | 101.6mm |
| C10 | 5" | 127mm |
| C11 | 5.5" | 139.7mm |
| C12 | 6" | 152.4mm |
| C13 | 7" | 177.8mm |
| C14 | 8" | 203.2mm |
| C15 | 9" | 228.6mm |
| C16 | 10" | 254mm |

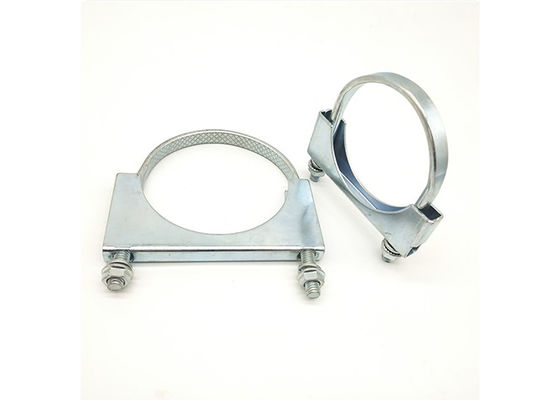

Designs: Two desings are the same price and specification for your choice.
We produce dozen designs of exhaust clamp for client's choice.According to different requirements, we can choose v band clamp, butt joint clamp, lap joint clamp, band clamp, U bolt clamp, Banjo Clamp Clip, etc.
OEM mounting bracket and straps are also availabe.
