Product Details:
|
Product Name: | 2 1/2" Chrome Heavy Duty Double Edge Open Saddle Muffler Clamp (2 1/2") | Type: | Muffler Clamp |
---|---|---|---|
Dimension Available: | 2" 2.25" 2.5" 2.75" 3" 3.5" 4" 4.5" 5" 6" | Band Materials: | Carton Steel |
Sureface Treatment: | Chrome Plated | Color: | Silver |
Sub-type: | U Bolt Clamp | Application: | Exhaust Pipe Clamp / Muffler Clamp |
Exhaust Clamp Type: | Pre-formed Strap Band Clamp | Style: | Band Clamp, Butt Joint |
Highlight: | Chrome Exhaust Saddle Clamp,2 1/2" Exhaust Saddle Clamp,Multiple Exhaust Saddle Clamp |

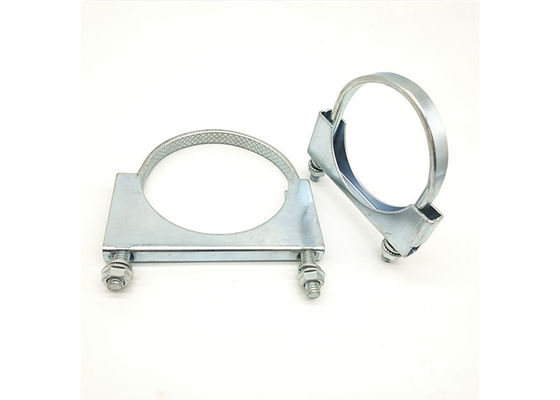

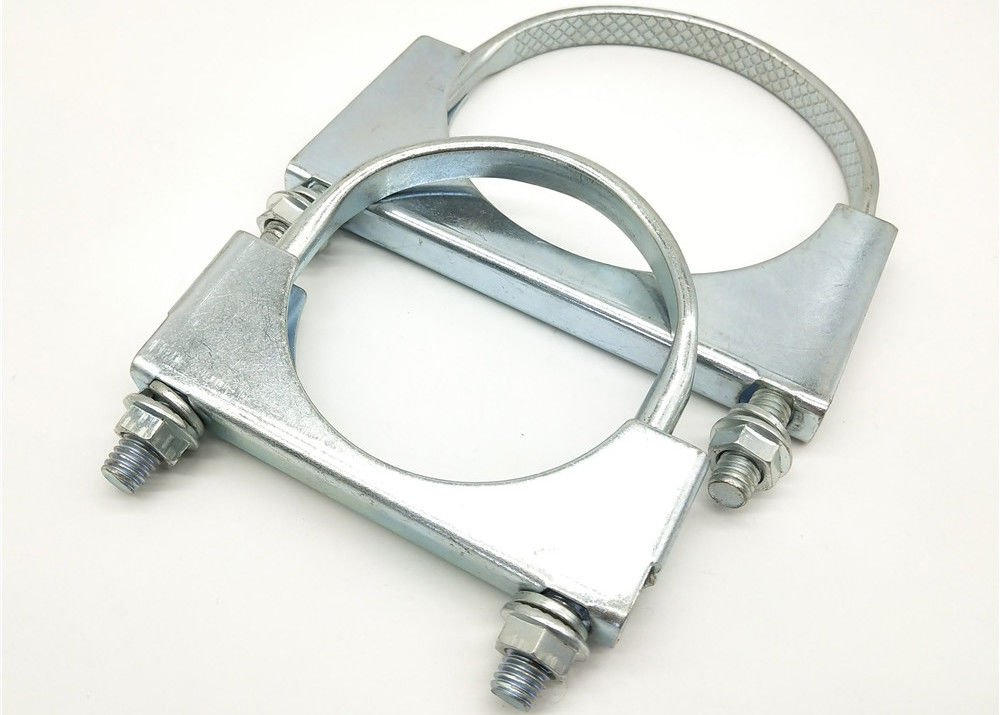

These superior quality muffler tube clamps/u-bolts are made with 100% stainless steel or carbon steel with chromed plated. They are ideal for any exhaust system and feature a saddle-type clamp for added strength. This U Bolt exhaust clamp equipped with bigger 3/8 U-Pole (equal M10) offers stronger, more reliable clamping force. Saddle- type substrate offers more reliable and stronger for applications.
Specification:
Part number | Pipe diameter(Inch) | Pipe diameter(metric) |
C01 | 1.5" | 38mm |
C02 | 1.75" | 44.5mm |
C03 | 2" | 50.8mm |
C04 | 2.25" | 57mm |
C05 | 2.5" | 63.5mm |
C06 | 2.75" | 69.9mm |
C07 | 3" | 76.2mm |
C08 | 3.25" | 82.5mm |
C09 | 4" | 101.6mm |
C10 | 5" | 127mm |
C11 | 5.5" | 139.7mm |
C12 | 6" | 152.4mm |
C13 | 7" | 177.8mm |
C14 | 8" | 203.2mm |
C15 | 9" | 228.6mm |
C16 | 10" | 254mm |
Application:
Heavy duty chrome plated u-bolt exhaust saddle style clamps. With many sizes to choose from with multiples uses, our heavy duty u-bolt exhaust clamps are easy to install and are made from steel with a beautiful chrome plating. Chrome plated helps with protecting from rust.
Packaging and delivery:
Related products:
As a leading producer of exhaust clamps and flexible pipe in China, we aim to supply best price and high-qualited products on the market to our clients.There are many designs and dimensions for your choice. For example, the exhaust clamp included stainless steel V band clamp kits, butt joint band clamp, galvanized U bolted clamp, and OEM bracket etc.
