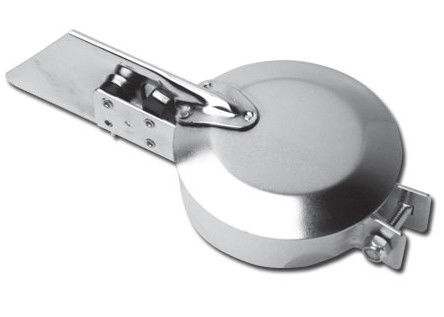

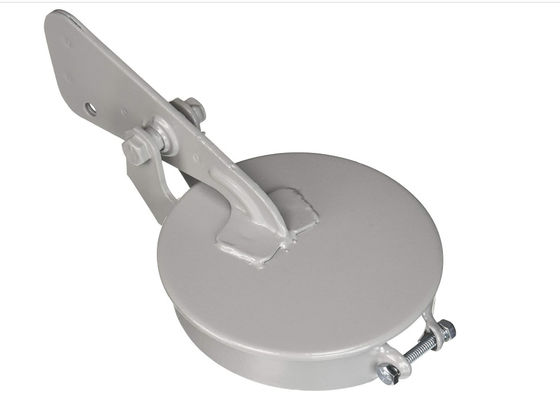

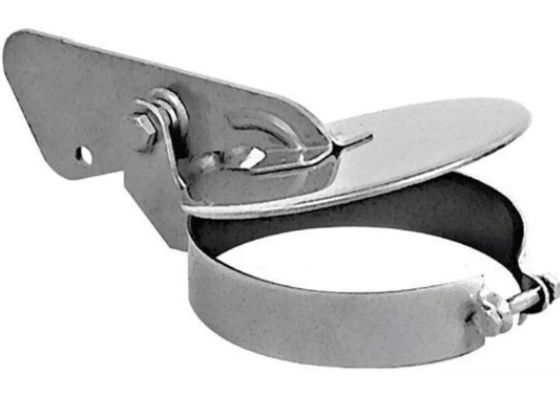

Aluminized Counter Balance Exhaust Stack Rain Cap With 3.0" Outside Diameter
Good Description: Aluminized Rain Cap Single Bolt Mounting Counter Balance Type Rain Cap Fits Exhaust Stack with 3.0" Outside Diameter Usage: After rolling down the road, dust, debris and precipitation can settle into exposed stack pipes, which can keep them from working probably. Rain caps are one of the simplest ways to stay protected. They are a two-piece mechanical device that includes a collar and flapper connected at a hinge point. The adjustable collar attaches to
3" exhaust stack rain cap
,Aluminized exhaust stack rain cap
,Counter Balance stack rain cap
Good Description:
- Aluminized Rain Cap
- Single Bolt Mounting
- Counter Balance Type Rain Cap
- Fits Exhaust Stack with 3.0" Outside Diameter
Usage: After rolling down the road, dust, debris and precipitation can settle into exposed stack pipes, which can keep them from working probably. Rain caps are one of the simplest ways to stay protected. They are a two-piece mechanical device that includes a collar and flapper connected at a hinge point. The adjustable collar attaches to the outside of the stack.
The exhaust stack flapper cap lays horizontally across the opening of the stack when no exhaust gas is being emitted and opens when there is pressure inside the stack. This allows the system to properly breathe, while also providing protection when not in use. Keeping harmful residues out of the exhaust can help keep your truck lasting longer and may help your gas mileage stay on track.
| Material: | Stainless Steel 304 or carton steel |
| Finishing: | Mirror polished , Zinc plated, Black Powder Coated, Chrome plated |
| MOQ: | 100 pcs per size |
| Port: | Tianjin port in China |
| Sample: | Free sample available, freight covered by customer |
| Packing: | PP bag+Carton+Pallet |
| Payment Terms: | T/T,L/C at sight,Western Union,Money Gram |
| Brand: | N/M or customer's brand |
| Delivery: | 5-8 work days after receipt of payment |
| Sizes | 2" 2 1/4" 2 1/2" 2 3/4" 3" 3 1/4" 3 1/2" 3 3/4" 4" 4 1/2" 4 3/4" 5" 5 1/4" 5 3/4" 6" etc |
Galvanized exhaust rain cap
Stainless steel exhaust weather cap
|
Specification sheet
|
|||
| Item Number | Min Exhaust OD | Max Exhuast OD | Color |
| EXRC020 | 2" | 2 3/16" |
Silver Gray Black etc |
| EXRC214 | 2 1/4" | 2 7/16" | |
| EXRC212 | 2 1/2" | 2 11/16" | |
| EXRC234 | 2 3/4" | 2 15/16" | |
| EXRC030 | 3" | 3 3/16" | |
| EXRC314 | 3 1/4" | 3 7/16" | |
| EXRC312 | 3 1/2" | 3 11/16" | |
| EXRC334 | 3 3/4" | 3 15/16" | |
| EXRC040 | 4" | 4 3/16" | |
| EXRC414 | 4 1/4" | 4 7/16" | |
| EXRC412 | 4 1/2" | 4 11/16" | |
| EXRC434 | 4 3/4" | 4 15/16" | |
| EXRC050 | 5" | 5 3/16" | |
| EXRC514 | 5 1/4" | 5 7/16" | |
| EXRC512 | 5 1/2" | 5 11/16" | |
| EXRC534 | 5 3/4" | 5 15/16" | |
| EXRC060 | 6" | 6 3/16" | |
| OEM | Availabe | Available | Available |
How do you select the material or finish of the rain cap?
|
|
|
There are several deciding factors on the type of rain cap finish you should select.
|
|
| Price |
If you're looking for the most economical type of rain flapper, choose the painted rain caps. The base material is carbon steel and paint is relatively inexpensive.
|
| Durability |
Will the rain cap be exposed to a corrosive environment such as a chemical plant? Or be see operation on a continuous basis such as a primary gen set?Consider a stainless steel rain cap as its base construction of 304 or 316 stainless steel can withstand a large degree of chemicals and operating conditions.
|
| Exhaust temperature |
Natural gas engines can have exhaust temperatures exceeding 1200 degrees Fahrenheit. In these applications, consider using a stainless steel rain cap made of 304 or 316. Aluminum rain caps can also be used on higher temperature exhaust systems of 1000 degrees Fahrenheit intermittent. Carbon steel, painted rain caps can operate at exhaust temperature up to 800 degrees Fahrenheit intermittently. The paint on these exhaust flappers are designed for higher operating temperatures. The chrome plating on the chrome rain caps can burn off at higher exhaust temperatures (i.e. above 500 degree Fahrenheit).
|
| Aesthetics: |
Rain cap going onto a show tractor? Go with a high luster finish such as chrome. A stainless steel rain cap can also be eye pleasing, but doesn't have the high luster finish of a chrome rain cap.
|
| Physical properties: |
Have an application that requires light weight material? Or need a rain cap that has a short counter weight dimension? Aluminum rain caps are lighter weight than their steel counterparts. And because of the lighter weight, the amount of material required for counter balance the lid is also smaller, leading to a shorter overall foot print.
|
Packaging and delivery:
- Packaging :Carton with pallet or Wooden crate
- In 7 days if dimension and quantitly available in stocks
- Usually 25-30 days for new mass production.
- Delivery method :By sea, By air, by Train, Ay Express. Any way customer prefered.
