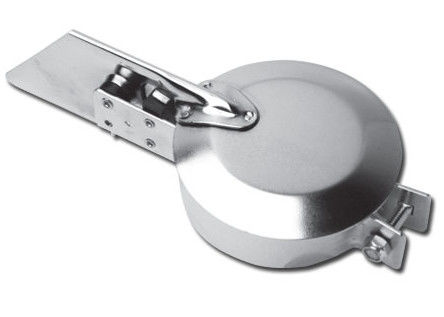

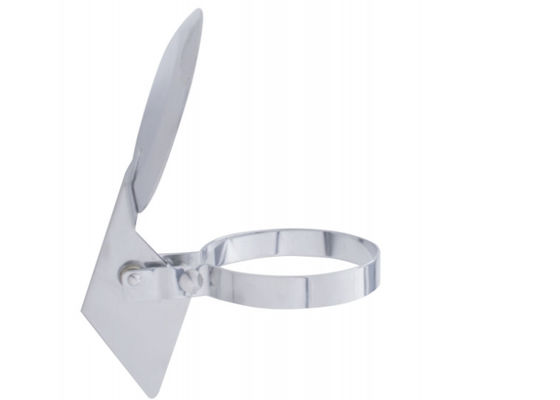

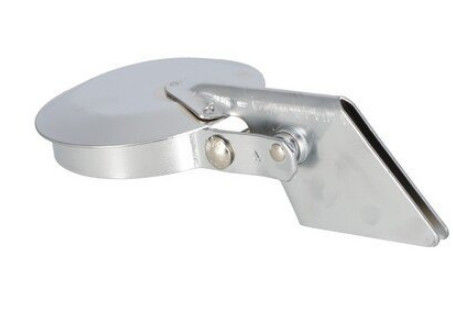

5.0" Aluminum Exhaust Rain Cap Flapper For Vertical Stack Pipe

5.0" Aluminum Exhaust Rain Cap Flapper For Vertical Stack Pipe
5.0" Aluminum Exhaust Rain Cap Flapper For Vertical Stack Pipe 5.0" Aluminum Exhaust Rain Cap Flapper For Vertical Stack Pipe 5.0" Aluminum Exhaust Rain Cap Flapper For Vertical Stack Pipe

Large Image :  5.0" Aluminum Exhaust Rain Cap Flapper For Vertical Stack Pipe

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YP-EXRC050
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: USD2.8
Packaging Details: Plastic bag + seaworthy carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION MONEYGRAM
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product: 5.0" Aluminum Rain Cap Weather Cover Flapper For Vertical Stack Pipe Diameter: 5.0 Inch
Materials: Aluminum Steel Thickness: 1mm 2mm1.5mm
Surface Finish: Chrome Plated Color: Silver
Usage: Keep Out Rain, Dirt, Dust, Debris And Objects From Entering Exhaust Pipe Block Materials: Steel / Bakelite
Application: Tractor MOQ: 50 Pieces
Package: Plastic Bag + Carton + Pallet
High Light:

Aluminum exhaust rain cap flapper

,

5.0" exhaust rain cap flapper

5.0" Aluminum Rain Cap Weather Cover Flapper For Vertical Stack Pipe



Good Description:



For enclosing vertical exhaust pipes to prevent rain water in the engine. The raincap is balanced in such a way that it will open when the engine starts and is closing when the engine stops. The raincap is made out of high quality aluminum. After assembly there is no need for maintenance on the cap anymore. The dimensions are the outside dimensions of the exhaust pipe (not inner sizes)



  • Aluminized Rain Cap
  • Single Bolt Mounting
  • Counter Balance Type Rain Cap
  • Fits Exhaust Stack with Outside Diameter

Standard Dimension:



Item Number Min Exhaust OD Max Exhuast OD Color
EXRC020 2" 2 3/16" Silver Light blue Grey Black
EXRC214 2 1/4" 2 7/16"
EXRC212 2 1/2" 2 11/16"
EXRC234 2 3/4" 2 15/16"
EXRC030 3" 3 3/16"
EXRC314 3 1/4" 3 7/16"
EXRC312 3 1/2" 3 11/16"
EXRC334 3 3/4" 3 15/16"
EXRC040 4" 4 3/16"
EXRC414 4 1/4" 4 7/16" Materials:
EXRC412 4 1/2" 4 11/16" Steel, Stainless Steel 304, Aluminum steel
EXRC434 4 3/4" 4 15/16"
EXRC050 5" 5 3/16"
EXRC514 5 1/4" 5 7/16"
EXRC512 5 1/2" 5 11/16"
EXRC534 5 3/4" 5 15/16" Customized dimension and model
EXRC060 6" 6 3/16" Available
OEM Availabe Available


What is a Rain Cap?



A rain cap is a protective covering or housing for the top of an exhaust pipe that is intended to prevent the entry of rain, snow, animals, birds as well as downdrafts back into the pipe.

What types of pipes do Raincaps go with?

  • Aluminized Steel Exhaust pipes – Straight Cut Top
  • Chrome Straight Exhaust pipes – Straight Cut Top

How to Install a Rain Cap?

Place the rain cap on the top of the Exhaust Pipe. The Rain cap should fit snug over the top of the exhaust pipe. Tighten the bolt snug. Make sure that the rain cap can move freely up and down to allow the exhaust gas to escape.
5.0" Aluminum Exhaust Rain Cap Flapper For Vertical Stack Pipe 05.0" Aluminum Exhaust Rain Cap Flapper For Vertical Stack Pipe 1

Packaging and delivery





Packaging



Plastic bag + carton + pallet / wooden crate
Lead time
  • In 7 days if dimension and quantitly available in stocks
  • Usually 25-30 days for new mass production.



Shipment terms



 EXW, FOB, CIF, CIF etc



Payment terms



T/T, western union, L/C at sight
