Product Details:
|

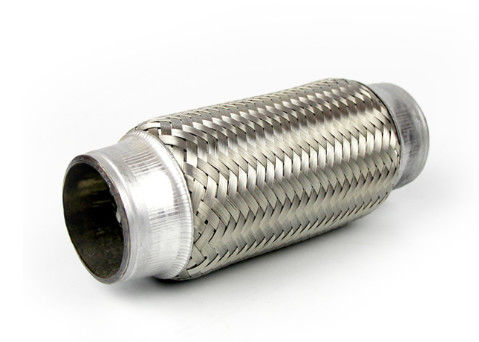

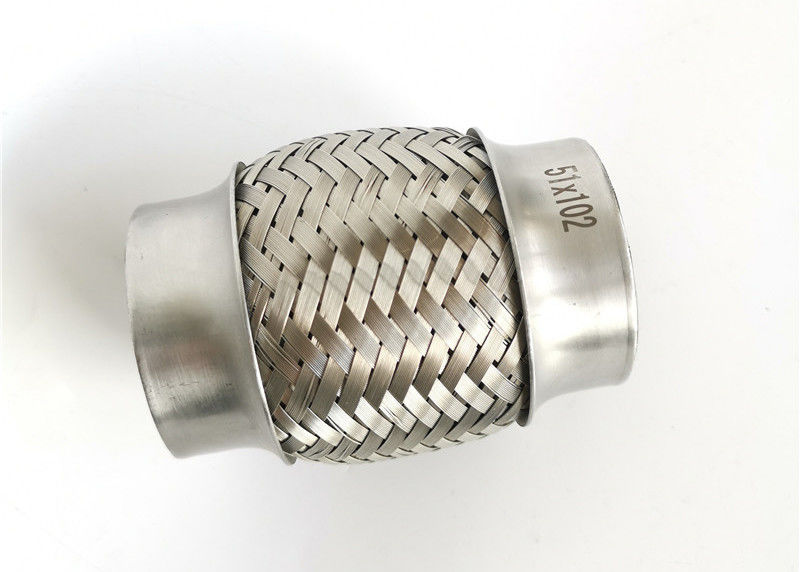

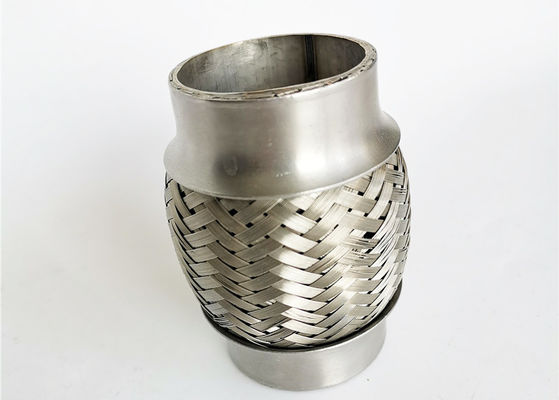

| Product Name: | Truck Usage ID 3 Inch Stainless Steel 304 201 Exhaust Flex Tube Braided | Tube Materials: | Stainless Steel 201 / 304 / 409 |
|---|---|---|---|
| Inside Diamter: | 3" | Body Lengh: | 4" 6" 8" 10" Or As Customer's Request |

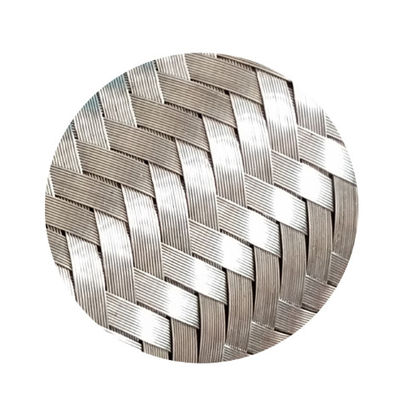

| Joint Cap Materials: | Stainless Steel Or Aluminized Steel | Structure: | Bellow Tube + Internal Wire Braid + External Wire Braid |
| Application: | Truck, Bus, Off-road, Frieght Liner Etc | Feature: | Duarable |
| Package: | Plastic Bag + Carton + Woven Bag | ||
| High Light: | braided flexible exhaust coupling,ss201 flexible exhaust coupling,ss201 exhaust pipe flexible coupling |
||
Flexible couplings are engineered to isolate vibration generated by your vehicle's engine, thereby relieving stress on the exhaust system. Flex couplings reduce premature cracking of manifolds and downpipes and help extend the life of other components. This coupling features a braided inner liner that protects the bellows from premature failure and is ideal for eliminating exhaust "whistle".
|
Materials:
|
Stainless steel 304,201,202 etc.
|
|
Cap materials:
|
Aluminum steel or stainless steel |
|
Structure choices: |
Bellows+Outer Braid+Nipple extension, Bellows + inner braided liner + external braided liner, bellows + interloc liner + external wire braided , bellow + wire mesh
|
| Features |
1.Automobile exhaust system component 2. Installed between engine and muffler 3. decrease vibration and engine noise 4.To compensate displacement and installation tolerances 5. Smooth inner surface to ensure waste gas to convey the back part 6.To Bear load |
|
Application: |
Truck, buses, off-road, industrial equipment etc. |
Specification
| Inner Diameter (ID) | Flex Length(L) | With nipple Overall Length(L) |
| 1-3/4” (45mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 48mm | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2”(50.8mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 54mm | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2-1/4”(57.2mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2-1/2”(63.5mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 3”(76.2mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| Note: Customized size are available | ||
Packing and delivery:
Plastic bag + seaworthy carton
Lead time: 5-8 days if stocks available, otherwise depends on the purchased quantity.
