Product Details:
|
| Other Name: | Car Exhaust System Stainless Steel Flex Exhaust Muffer Pipe ,Bellows | Material: | SS |
|---|---|---|---|
| Shipment Time: | 5 Days If Stock, 10-20 If No Stock | Wall Thickness: | 1.0-1.2mm |
| Application: | Vehicle Exhaust System | Model Number: | 1.5"-6" |
| Car Model: | Customized | Warranty: | 1 Year |
| MOQ: | 1pc | Length: | 4”-10” |
| Highlight: | 1.5" x 4" stainless steel flex pipe,1.2mm stainless steel flex pipe,1.2mm stainless flex pipe |
||

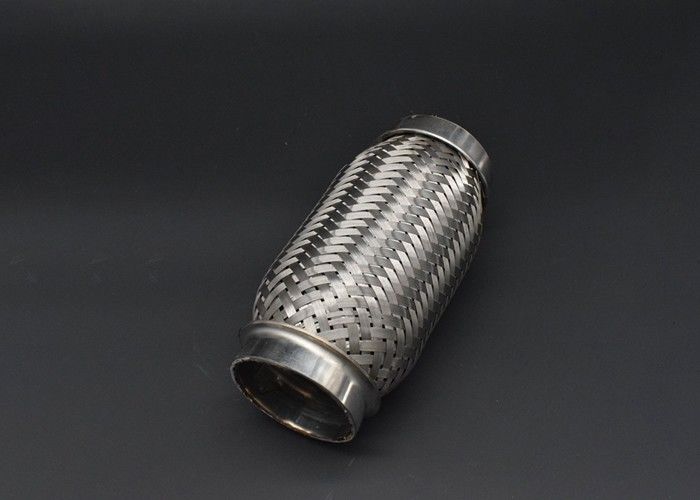

Car Exhaust System Stainless Steel Flex Exhaust Muffer Pipe ,Flexible Exhaust Bellows
Features:
|
Product Name |
Stainless Steel Exhaust Muffler Flexible Pipe |
|
Material |
Stainless Steel 409 / 304 / 316, Aluminum |
|
Quality |
Genuine / OEM |
|
Packing |
Bubble bag, Wooden Case, Neutral packing or negotiated |
|
MOQ |
1 pc |
|
Size / Inner Diameter |
1.5"-6" (1.5” / 1.75” / 2.0” / 2.25” / 2.5” / 3.0” / 3.5” / 4.0” ) |
|
Length |
4” - 10” |
|
Wall Thickness |
1.0mm , 1.2mm |
|
Color |
Silver |
|
Price Term |
EXW , FOB , CIF , C&F |
|
Car Model |
Universal |
|
Application / Usage |
Muffler , Car Exhaust System , Turbos , Waste-gates , Blow-off Valves |
|
Delivery time |
5 days if stock , 10-20 if no stock as per quantity |
|
Advantage |
|
|
Warranty |
6 months |
| Sample | Available |
Stainless steel exhaust flexible pipe is a common part for engine exhaust system of car. We supply many types, based on different construction and different material.
Types:
Type A : Braided Flexible pipe with inner bellow
Type B : Braided Flexible pipe with braided liner
Type C : Bellows with interlock
Type D: Stainless steel Bellows
Type E : Braided Flexible pipe with welded nipples
Specifications:
| Part No. | innner dia. inch | inner diamater mm | Length inch | Length mm |
| YP13404 | 1-3/4" | 45 | 4" | 102 |
| YP13406 | 1-3/4" | 45 | 6" | 152 |
| YP13407 | 1-3/4" | 45 | 7" | 178 |
| YP13408 | 1-3/4" | 45 | 8" | 203 |
| YP13409 | 1-3/4" | 45 | 9" | 230 |
| YP13410 | 1-3/4" | 45 | 10" | 254 |
| YP13411 | 1-3/4" | 45 | 11" | 280 |
| YP13412 | 1-3/4" | 45 | 12" | 305 |
| YP20004 | 2" | 50.8 | 4" | 102 |
| YP20006 | 2" | 50.8 | 6" | 152 |
| YP20008 | 2" | 50.8 | 8" | 203 |
| YP20009 | 2" | 50.8 | 9" | 230 |
| YP20010 | 2" | 50.8 | 10" | 254 |
| YP20011 | 2" | 50.8 | 11" | 280 |
| YP20012 | 2" | 50.8 | 12" | 305 |
| YP21404 | 2-1/4" | 57.2 | 4" | 102 |
| YP21406 | 2-1/4" | 57.2 | 6" | 152 |
| YP21408 | 2-1/4" | 57.2 | 8" | 203 |
| YP21409 | 2-1/4" | 57.2 | 9" | 230 |
| YP21410 | 2-1/4" | 57.2 | 10" | 254 |
| YP21411 | 2-1/4" | 57.2 | 11" | 280 |
| YP21412 | 2-1/4" | 57.2 | 12" | 305 |
| YP21204 | 2-1/2" / 3" | 63.5 / 76.2 | 4" | 102 |
| YP21206 | 2-1/2" / 3" | 63.5 / 76.2 | 6" | 152 |
| YP21208 | 2-1/2" / 3" | 63.5 / 76.2 | 8" | 203 |
| YP21209 | 2-1/2" / 3" | 63.5 / 76.2 | 9" | 230 |
| YP21210 | 2-1/2" / 3" | 63.5 / 76.2 | 10" | 254 |
| YP21211 | 2-1/2" / 3" | 63.5 / 76.2 | 11" | 280 |
| YP21212 | 2-1/2" / 3" | 63.5 / 76.2 | 12" | 305 |
Company Overview:
With rich experience and the date of art equipment in the field of exhaust system,our monthly production capability up to 80000 pcs. The products we manufactured are popular with their high quality in the overseas markets, such as North America, Africa and Southeast Asia. We can guarantee high quality and reliable quick delivery shipment for you.
Other car accessories like exhaust muffler, exhaust bend pipe, corrugated flexible pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle joint clamp and other exhaust accessories.
