Product Details:
|
| Item: | Stainless Steel Exhaust Flexible Connector Pipes & Bellows (Belows) | Warranty: | 1 Year |
|---|---|---|---|
| Material: | Stainless Steel 304 / 201 | Car Model: | Universal |
| ID: | 1.5"-3.5" | Usage: | Vehicle Exhaust System |
| OD: | 1.5"-3.5" | Color: | Silver |
| OL: | 4"-10" | OEM: | Standard |
| High Light: | oem stainless steel exhaust flex pipe,201 stainless steel exhaust flex pipe,304 stainless steel exhaust flex pipe |
||
Car Turbo Auto Engine Braid Stainless Steel Flexible Exhaust Pipe with Bellows
★Product Introduction
| Material | stainless steel 201 |
| Color | silver |
| Name | flexible bellows for car |
| Application | automotive exhaust system |
| Size | ID1.5"-3.5" OD1.5"-3.5" OL4"-10" |

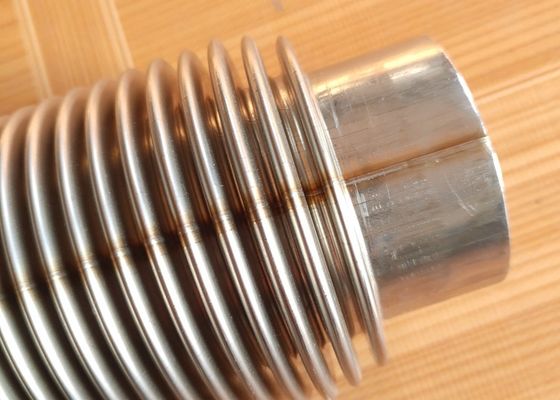

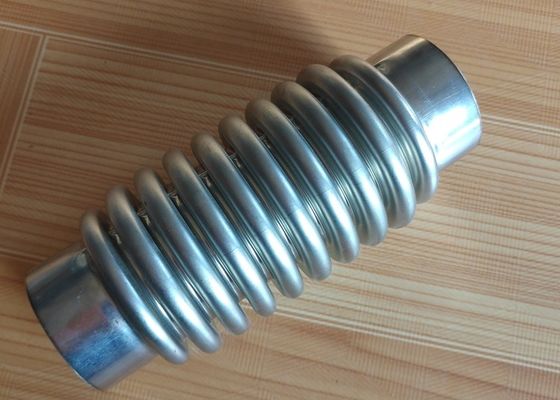

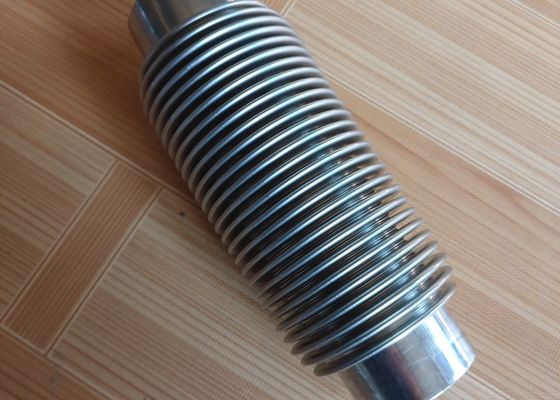

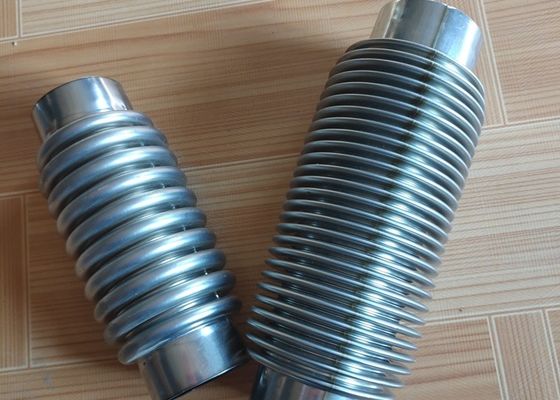

Stainless steel exhaust flexible pipes is a part of the engine exhaust system of the car. They're constructed with 1 or 2-ply bellows and together with a seamless, convoluted inner core—increasing flexibility in order to reduce vibrations and prevent exhaust leaks that allows your car to be more comfortable and enjoyable in use. Such flex pipes are provided in a variety of lengths, diameters, and many styles.
For example, the common one is a flex pipe with four layers. The outer and inner layers are made from the weaving stainless wire. Between these layers, there is a double layer bellow, also made of stainless steel. Standard Caps with connectors are installed on both sides of the exhaust flex pipe. They securely fasten all four layers and allow them to install this element using clamps or by the "pipe-to-pipe" welding method and accurately match the right size.
Many types of stainless exhaust flex pipe available at us, pls be free to tell us your requirement.
★Product Advantages:
★Product Specifications:
Usually, the bellows are fitted together with braided wire , inner braid, outer braid, or with interlock, see the picture, and the size form for these common exhaust flexible pipe:
| Part No. | innner dia. inch | inner diamater mm | Length inch | Length mm |
| YP13404 | 1-3/4" | 45 | 4" | 102 |
| YP13406 | 1-3/4" | 45 | 6" | 152 |
| YP13407 | 1-3/4" | 45 | 7" | 178 |
| YP13408 | 1-3/4" | 45 | 8" | 203 |
| YP13409 | 1-3/4" | 45 | 9" | 230 |
| YP13410 | 1-3/4" | 45 | 10" | 254 |
| YP13411 | 1-3/4" | 45 | 11" | 280 |
| YP13412 | 1-3/4" | 45 | 12" | 305 |
| YP20004 | 2" | 50.8 | 4" | 102 |
| YP20006 | 2" | 50.8 | 6" | 152 |
| YP20008 | 2" | 50.8 | 8" | 203 |
| YP20009 | 2" | 50.8 | 9" | 230 |
| YP20010 | 2" | 50.8 | 10" | 254 |
| YP20011 | 2" | 50.8 | 11" | 280 |
| YP20012 | 2" | 50.8 | 12" | 305 |
| YP21404 | 2-1/4" | 57.2 | 4" | 102 |
| YP21406 | 2-1/4" | 57.2 | 6" | 152 |
| YP21408 | 2-1/4" | 57.2 | 8" | 203 |
| YP21409 | 2-1/4" | 57.2 | 9" | 230 |
| YP21410 | 2-1/4" | 57.2 | 10" | 254 |
| YP21411 | 2-1/4" | 57.2 | 11" | 280 |
| YP21412 | 2-1/4" | 57.2 | 12" | 305 |
| YP21204 | 2-1/2" / 3" | 63.5 / 76.2 | 4" | 102 |
| YP21206 | 2-1/2" / 3" | 63.5 / 76.2 | 6" | 152 |
| YP21208 | 2-1/2" / 3" | 63.5 / 76.2 | 8" | 203 |
| YP21209 | 2-1/2" / 3" | 63.5 / 76.2 | 9" | 230 |
| YP21210 | 2-1/2" / 3" | 63.5 / 76.2 | 10" | 254 |
| YP21211 | 2-1/2" / 3" | 63.5 / 76.2 | 11" | 280 |
| YP21212 | 2-1/2" / 3" | 63.5 / 76.2 | 12" | 305 |
