Product Details:
|
| Name: | 2" X 4" X 8" Double Braid Stainless Steel Series Exhaust Flex Pipe | Car Make: | Universal |
|---|---|---|---|
| Diameter: | 2" | Warranty: | 1 Year |
| Body Length: | 4" | Type: | Double Braid |
| Overal Length: | 8" | Application: | Vehicle Exhaust System |
| MOQ: | 1pc | Finish: | Plain |
| High Light: | braided exhaust flex pipe,2x4x8 exhaust flex pipe,Plain braided exhaust flex pipe |
||

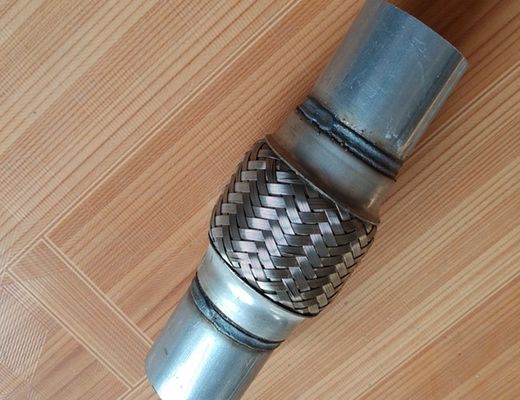

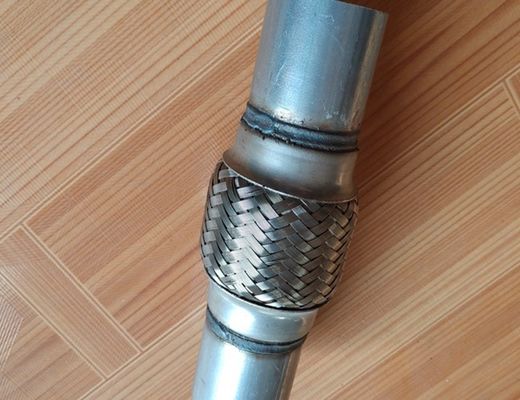

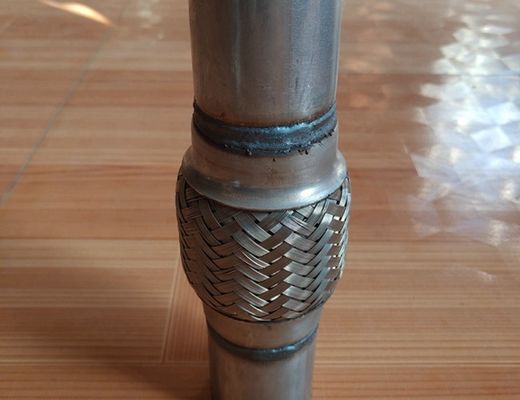

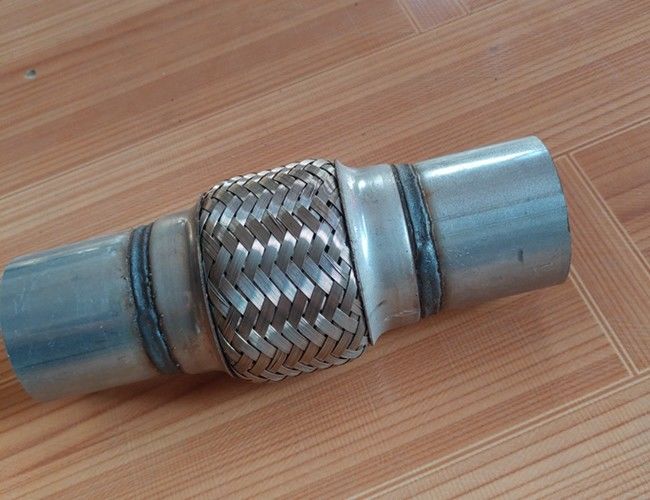

2" x 4" x 8" Double Braid Stainless Steel Series Exhaust Flex Pipe
Product Quick Details:
Stainless steel exhaust flexible pipes is a part of the engine exhaust system of the car. They're constructed with 1 or 2-ply bellows and together with a seamless, convoluted inner core—increasing flexibility in order to reduce vibrations and prevent exhaust leaks that allows your car to be more comfortable and enjoyable in use. Such flex pipes are provided in a variety of lengths, diameters, and many styles.
This one is welding tube, customer no need to weld them again after purchase.
Type : Braided Flexible pipe with welded nipples
Other types are like :
1. Exhaust Flexible Pipe I
Structure: consisted of an outer braid and an inner bellow , this is the simplest one, for light use.
2. Exhaust Flexible Pipe II
Structure: consisted of an outer braid, bellows in the middle and an inner braid, provide better flexibility and longer life
3. Exhaust Flexible Pipe III
Structure: consisted of an outer braid, and a interlock tube with bellows in the middle, the key is the interlock pipe, reduce vibration and noise and lasts the longest. There is an interlocked pipe visible when you look through the middle. This is the heavy duty one.
Specifications for common flexible exhaust pipe:
| Part No. | innner dia. inch | inner diamater mm | Length inch | Length mm |
| YP13404 | 1-3/4" | 45 | 4" | 102 |
| YP13406 | 1-3/4" | 45 | 6" | 152 |
| YP13407 | 1-3/4" | 45 | 7" | 178 |
| YP13408 | 1-3/4" | 45 | 8" | 203 |
| YP13409 | 1-3/4" | 45 | 9" | 230 |
| YP13410 | 1-3/4" | 45 | 10" | 254 |
| YP13411 | 1-3/4" | 45 | 11" | 280 |
| YP13412 | 1-3/4" | 45 | 12" | 305 |
| YP20004 | 2" | 50.8 | 4" | 102 |
| YP20006 | 2" | 50.8 | 6" | 152 |
| YP20008 | 2" | 50.8 | 8" | 203 |
| YP20009 | 2" | 50.8 | 9" | 230 |
| YP20010 | 2" | 50.8 | 10" | 254 |
| YP20011 | 2" | 50.8 | 11" | 280 |
| YP20012 | 2" | 50.8 | 12" | 305 |
| YP21404 | 2-1/4" | 57.2 | 4" | 102 |
| YP21406 | 2-1/4" | 57.2 | 6" | 152 |
| YP21408 | 2-1/4" | 57.2 | 8" | 203 |
| YP21409 | 2-1/4" | 57.2 | 9" | 230 |
| YP21410 | 2-1/4" | 57.2 | 10" | 254 |
| YP21411 | 2-1/4" | 57.2 | 11" | 280 |
| YP21412 | 2-1/4" | 57.2 | 12" | 305 |
| YP21204 | 2-1/2" / 3" | 63.5 / 76.2 | 4" | 102 |
| YP21206 | 2-1/2" / 3" | 63.5 / 76.2 | 6" | 152 |
| YP21208 | 2-1/2" / 3" | 63.5 / 76.2 | 8" | 203 |
| YP21209 | 2-1/2" / 3" | 63.5 / 76.2 | 9" | 230 |
| YP21210 | 2-1/2" / 3" | 63.5 / 76.2 | 10" | 254 |
| YP21211 | 2-1/2" / 3" | 63.5 / 76.2 | 11" | 280 |
| YP21212 | 2-1/2" / 3" | 63.5 / 76.2 | 12" | 305 |
Warehouse and Packing:
Company Overview:
With rich experience and the date of art equipment in the field of exhaust system,our monthly production capability up to 80000 pcs. The products we manufactured are popular with their high quality in the overseas markets, such as North America, Africa and Southeast Asia. We can guarantee high quality and reliable quick delivery shipment for you.
Other car accessories like exhaust muffler, exhaust bend pipe, corrugated flexible pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle joint clamp and other exhaust accessories.
