4.500" Quick Release Exhuast V Band Clamp
4.500" V-Band Clamp 304 Stainless Steel - Quick Release Exhuast V Band Clamp Description This specific V-band clamp is intended to be used with 4.5" ID V-band flanges (matching tube size: 4.5" OD) and will accept V-band flanges with an overall OD of 5.24".Our V-Band Clamp sizing is in reference to the intended matching tube size diameter, not the clamping range of the clamp itself. 304 Stainless Steel V-Band Clamps are manufactured in an ISO 9001 certified facility and
4.500" Exhuast V Band Clamp
,4.500" stainless v band clamp
4.500" V-Band Clamp 304 Stainless Steel - Quick Release Exhuast V Band Clamp
Description
This specific V-band clamp is intended to be used with 4.5" ID V-band flanges (matching tube size: 4.5" OD) and will accept V-band flanges with an overall OD of 5.24".Our V-Band Clamp sizing is in reference to the intended matching tube size diameter, not the clamping range of the clamp itself.
304 Stainless Steel V-Band Clamps are manufactured in an ISO 9001 certified facility and feature a "Quick Release" T-Bolt style clamping mechanism to ensure a tight, leak-free seal. A major benefit of the "Quick Release" style clamp is the quick release latch that is used to secure the clamp in place. The latch allows for quick assembly and disassembly in applications where frequent removal is required. The T-Bolt and Nut section of the "Quick Release" V-Band clamp is also removable and replaceable, should the user need to do so. V-Band Clamps and V-Band Flanges are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, marine and industrial applications.
| Clamp Material Type | 304 Stainless steel |
| Compatible V-Band Flange OD |
|
|
|
4.500" |
| Clamp Bandwidth | 0.750" |
| Clamp Type | V-Band, Quick Release T-Bolt |
| Fastener Size | 5/16"-24 |

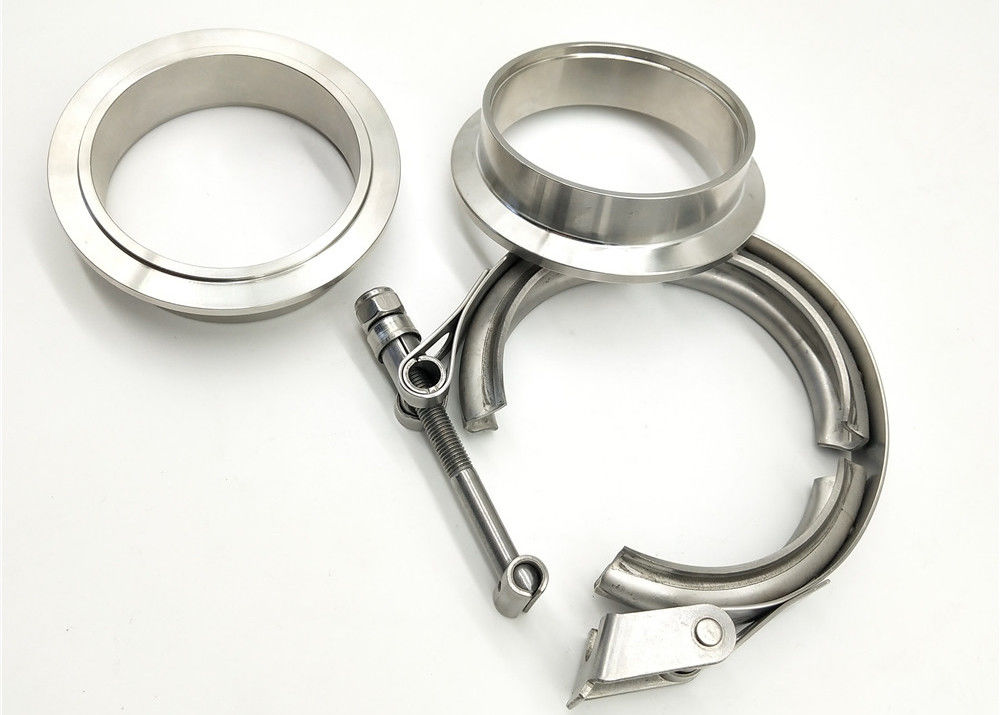

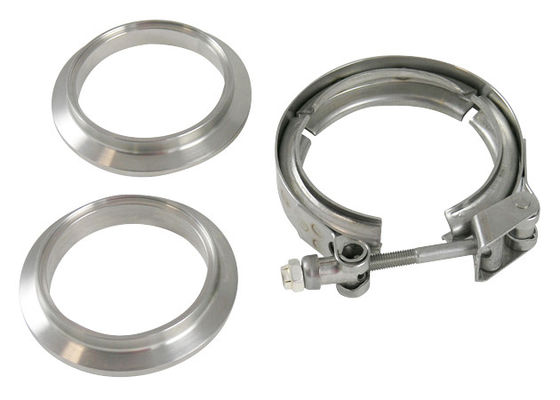

V-Band clamps with T-Bolt quick release style latches.
Advantages of V-band clamps:
When compared to 2 or 3-bolt flanges, the V-band connections are lighter, quicker and easier to take apart. In most cases the V-band clamps are economical when you consider the cost of time in installation and reassembly. V-band connections require a smaller fitment envelope as compared with multi-bolt flanges, and the biggest advantage, the design of the V-band clamp applies uniform force around the flange which maximizes the seal potential of the flanges.
- Reduces assembly cost, saves time and ease of accessibility
- Ideal for applications requiring frequent access for cleaning, inspection or replacement of internal components
- Smaller envelop dimensions, weight savings and improved appearance
- Provides additional strength by absorbing circumferential load

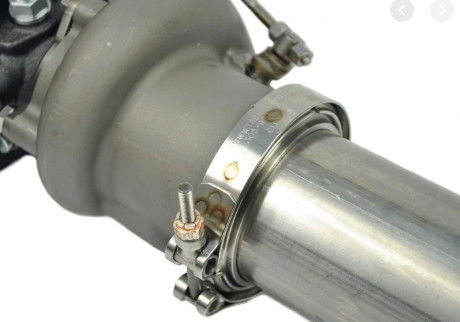

Installation:
For a V-band clamp to work optimally, proper installation is critical. Tubes and components of the coupling must be joined and aligned before installing the coupling. The flanges must also be aligned correctly prior to coupling installation for good joint performance.
Tighten the nut to approximately 70% of the required torque (on double-latch assemblies, torque both latches equally). Check to assure the coupling has seated over flanges equally around the periphery. Also, check for correct flange alignment. Radial flange alignment can be checked visually in the gap between adjacent retainer segments.
Specifications:
| Size(Inch) | Flange ID(mm) | Exhaust pipe OD(mm) | Materials |
| 1.5 | 38.9 | 38.1 | Stainless steel 304 |
| 1.75 | 45.3 | 44.5 | |
| 2 | 51.6 | 50.8 | |
| 2.25 | 57.9 | 57.1 | |
| 2.5 | 64.3 | 63.5 | |
| 2.75 | 70.6 | 69.8 | |
| 3 | 77 | 76.2 | |
| 3.25 | 83.3 | 82.5 | |
| 3.5 | 89.7 | 88.9 | |
| 3.75 | 96.4 | 95.6 | |
| 4 | 102.4 | 101.6 | |
| 4.5 | 115.1 | 114.3 | |
| 5 | 127.8 | 127 | |
| 6 | 153.2 | 152.4 |
Packing and delivery:
Package method:Separate carton for each, big carton outside or as clients's request
Delivery time:in 3 days if stocks available, new production time depends on ordered quantity
Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)
Shipping terms: FOB, CIF, CNF DDP etc.
-
