3" Aluminized O Single Bolt Narrow Band exhaust Clamp Muffler clamp

3" Aluminized O Single Bolt Narrow Band exhaust Clamp Muffler clamp
3" Aluminized O Single Bolt Narrow Band exhaust Clamp Muffler clamp 3" Aluminized O Single Bolt Narrow Band exhaust Clamp Muffler clamp 3" Aluminized O Single Bolt Narrow Band exhaust Clamp Muffler clamp 3" Aluminized O Single Bolt Narrow Band exhaust Clamp Muffler clamp

Large Image :  3" Aluminized O Single Bolt Narrow Band exhaust Clamp Muffler clamp

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YP-EXBC030
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1.2~$1.5/PC FOB TIANJIN, CHINA
Packaging Details: Plastic bag + seaworthy carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION MONEYGRAM
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: 3" Aluminized O Single Bolt Narrow Band Exhaust Clamp Muffler Clamp Dimension: 3"
Size Choice: 2.0" - 5.0" Materials: Aluminized Steel Or Stainless Steel
Surface Treatment: Zinc Plated / Chrome Plated / Powder Coating / Polishing Type: Exhaust System Clamp
Feature: 360 Degree Clamping And Sealing Color: Silver
Structure: O Clamp Band Thickness: 1.8mm
Fitment: Universal Auto Exhaust Pipe

Product description:



Accuseal exhaust clamps provide optimal seal and joint retention performance. They are a simple, effective way to connect exhaust system components, pipes, mufflers, and converters. Accuseal clamps provide a unique seal and high clamp loads without permanent distortion.



Materials:



Band: SS 304, SS201, Aluminized steel

Bolt:10.9 class T type

Nut: 10 Class Lock Nut

Washer: Steel, Zinc plate

H Block: Q235 Cold Drawn Steel

D Block: Zinc Alloy Die Cast.



1). The mild steel semi-circular gasket parts, it can hold the pipe tightly without loosening.

2). The I-shape block again enhances the sealing of the joined exhaust components and prevents pipes from distorting.
3). The semi-circular gasket and I-block cooperate with each other, this makes the whole structure tighter, and no leakage
4). This material has excellent resistance to a wide range of atmospheric environments and many corrosive media. We have galvanized bolts, nuts and washers at the same time. Therefore, users no longer have to worry about rust. All the work we do is to prevent rust and leakage.



Product Specs:



Diameter inch Metric dimension Materials
2" 51mm SS, aluminized steel
2.25" 57mm
2.5" 63mm
2.75" 70mm
3" 76mm Band width:31.8mm
3.5" 89mm
4.0" 102mm
4.5" 114mm Band thickness: 1.8mm or as request
5.0" 127mm



Charactors:



1.High-strength fastener hardware with corrosive resistant coating

2.Easy to assemble only one assembly torque point

3.Exclusive reaction block, the reaction block provides a full 360°equal distribution of stretching forces, prohibiting pipe distortion while completing a seal around the joined exhaust components.

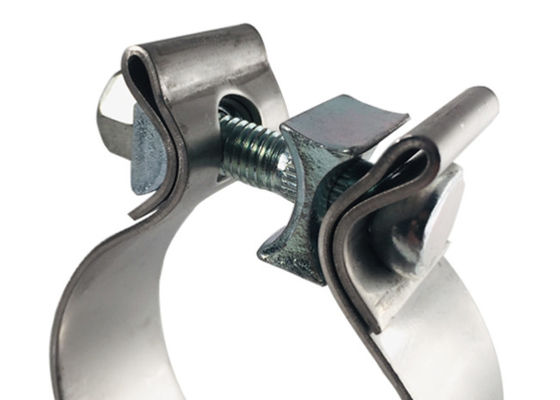

3" Aluminized O Single Bolt Narrow Band exhaust Clamp Muffler clamp 0

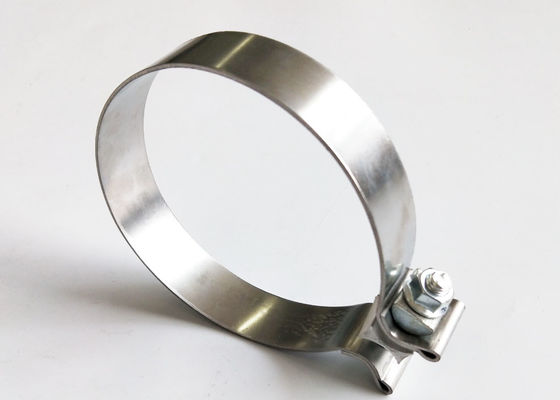

3" Aluminized O Single Bolt Narrow Band exhaust Clamp Muffler clamp 1



Package and delivery:



Packaging:plastic bag for each item, master carton outside. pallet can be supplied as request
Delivery time: depends on order quantity, but not more than 30 day after order confirmed
Shipment port: Tianjin, china
Shipment method: By expres(DHL, FEDEX, TNT, UPS etc), by air, by sea

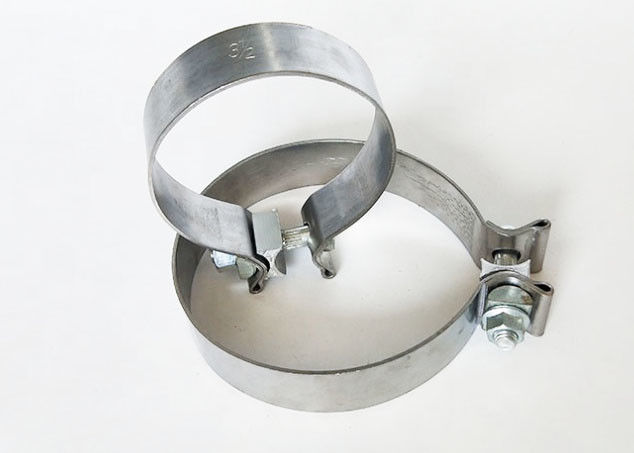

3" Aluminized O Single Bolt Narrow Band exhaust Clamp Muffler clamp 2

Related products: Universal muffler, performance muffler, resonator, flex pipe, exhuast clamp, catalytic converser etc.
Materials can be stainless steel and aluminized steel. Installation imensions from 2" up to 6", and fit for all universal exhaust pipe.

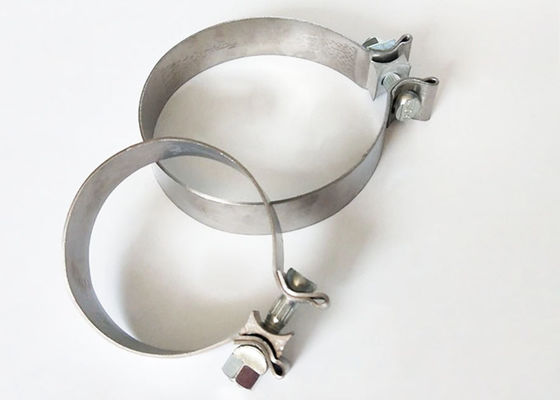

3" Aluminized O Single Bolt Narrow Band exhaust Clamp Muffler clamp 3
We are your one-shop source offering a wide secliton of exhaust system components to satify customer's exhuast need.
Welcome your inquiry for details.  ep source offering a wide selection of elbow designs and styles to fit all your exhaust neds
