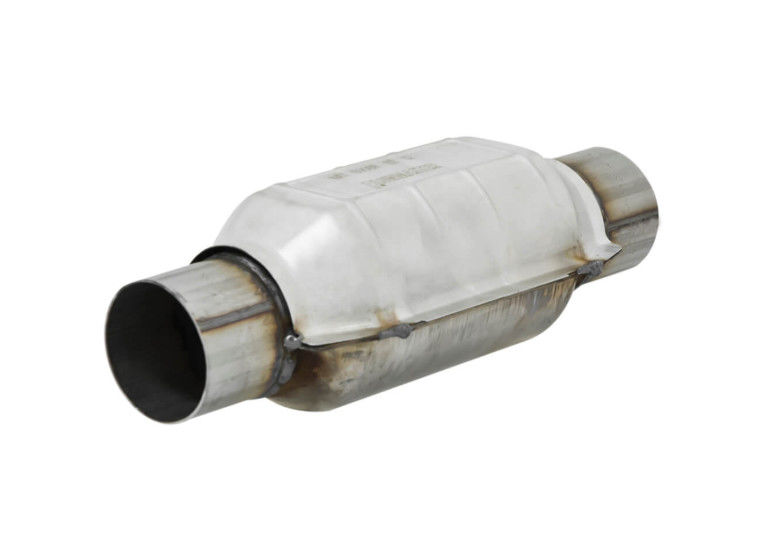

ISO9001 Certification SUS409 12.75" Car Catalytic Converter

ISO9001 Certification SUS409 12.75" Car Catalytic Converter

12.75" Car Catalytic Converter

SUS409 Car Catalytic Converter

12.75" automobile catalytic converter

Place of Origin:

China

Certification:

ISO

CONTACT US
Request A Quote
Product Details
Product:
Stainless Steel Auto Universal Performance Catalytic Converter
Type:
Three- Way
Car Make:
Universal
Materials:
SUS409 / 304 Stainless Steel
Inlet/outlet:
2"
Body Length:
12.75"
Connection Type:
Slip-fit
Max Engine Size:
5.9L
Substrate Materials:
Ceramic
Quality:
ISO 9001 TS 16949 Quality Control System
Ceramic Honeycomb Substrate:
120*80*50mm 2 Pcs
Payment & Shipping Terms
Minimum Order Quantity
50
Price
Negotiable
Packaging Details
Plastic bag + seaworthy carton
Delivery Time
5-8 days if stocks available
Payment Terms
L/C T/T WESTERN UNION MONEYGRAM
Supply Ability
10000 Pieces Per Month
Product Description

Good introduction:



Universal catalytic converters are designed to meet emissions requirements on a wide variety of applications. These high quality catalytic converters feature stainless steel outer shell construction for maximum durability. The internal substrate material and precious metal loading have been carefully engineered for maximum efficiency. Universal catalytic converters require welding and/or fabrication and should be installed by qualified technicians.
Features:
  • Stainless Steel Construction
  • Available for a wide variety of applications
  • Excellent flow characteristics



Spcification:



Product type Calatylic converter
Body length 12.75 inches
Body shape Round shape
Body width 5"
Emission Code 2"
Heat shield Yes
Inlet diameter  2"
Inlet quantity 1
Inlet connection type Slip-fit
Materials Stainless steel 409 / 304
Max engine size 5.9 L
Max gross vehicle weight  5500kgs
Outlet diamter 2"
Outlet quantity 1
Type Three-way
Substrate materials Ceramic



ISO9001 Certification SUS409  12.75" Car Catalytic Converter 0



A three-way catalytic converter has three simultaneous tasks.

  • Reduction of nitrogen oxides to nitrogen and oxygen: 2NOx → xO2 + N2
  • Oxidation of carbon monoxide to carbon dioxide: 2CO + O2 → 2CO2
  • Oxidation of unburnt hydrocarbons (HC) to carbon dioxide and water: CxH2x+2 + [(3x+1)/2]O2 → xCO2 + (x+1)H2O.

These three reactions occur most efficiently when the catalytic converter receives exhaust from an engine running slightly above the stoichiometric point. Three-way catalysts are effective when the engine is operated within a narrow band of air-fuel ratios near stoichiometry, such that the exhaust gas oscillates between rich (excess fuel) and lean (excess oxygen) conditions. Three-way catalytic converters can store oxygen from the exhaust gas stream, usually when the air-fuel ratio goes lean.





ISO9001 Certification SUS409  12.75" Car Catalytic Converter 1



Application



Although catalytic converters are most commonly applied to exhaust systems in automobiles, they are also used on electrical generators, forklifts, mining equipment, trucks, buses, locomotives, and motorcycles. They are also used on some wood stoves to control emissions. This is usually in response to government regulation, either through direct environmental regulation or through health and safety regulations.



Catalytic converters require a temperature of 800 degrees Fahrenheit (426 °C) to efficiently convert harmful exhaust gases into inert gases, such as carbon dioxide and water vapor. Therefore, they are placed as close to the engine as possible.



Packaging and delivery



ISO9001 Certification SUS409  12.75" Car Catalytic Converter 2



Package 1pc/white paper box, 10pcs/master carton
Delivery method By express, By air, By sea
Delivery time Depends on order quantity
Shipment terms EXW, FOB CHINA, CNF CHINA, CIF CHINA



Related products



Stainless steel / aluminized exhaust resonator and muffler, exhuast flex pipe and clamps in dozen models and dimensions for customer's choice.



ISO9001 Certification SUS409  12.75" Car Catalytic Converter 3



Welcome your inquiry if you are interested in our products.
