152mm 30 Degree 1/2" Stainless Steel Mandrel Bends

152mm 30 Degree 1/2" Stainless Steel Mandrel Bends
152mm 30 Degree 1/2" Stainless Steel Mandrel Bends 152mm 30 Degree 1/2" Stainless Steel Mandrel Bends 152mm 30 Degree 1/2" Stainless Steel Mandrel Bends 152mm 30 Degree 1/2" Stainless Steel Mandrel Bends 152mm 30 Degree 1/2" Stainless Steel Mandrel Bends 152mm 30 Degree 1/2" Stainless Steel Mandrel Bends

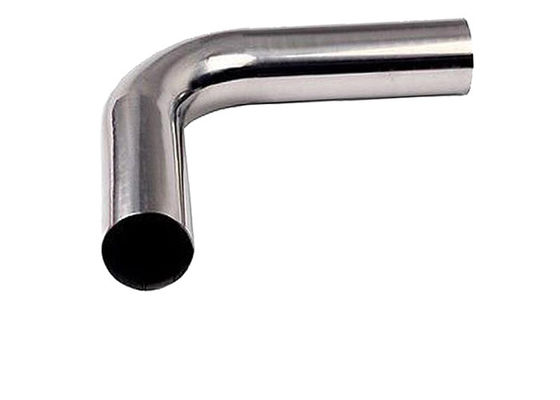

Large Image :  152mm 30 Degree 1/2" Stainless Steel Mandrel Bends

Product Details:
Place of Origin: Hebei , China
Brand Name: YP
Model Number: YPb13404-YPb70200
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$ 1.5--20.01 /PC
Packaging Details: carton , pallet, wooden case
Delivery Time: 5-25 DAYS
Detailed Product Description
Item Name: Stainless Steel Mandrel Bends Aluminum Mandrel Bends For Car Exhaust System Leg Length: 152mm Or As Customer Requirement
Pipe Material: Stainless Steel 304 Or Aluminum OD: 1/2" - 8"
OEM: Available Thickness: 1.2mm
Bend Angle: 30 Degree Feature: No Ripples , No Crimping
High Light:

1/2" stainless steel mandrel bends

,

152mm stainless steel mandrel bends

,

152mm exhaust mandrel bends

Stainless steel mandrel bends Aluminum mandrel bends for Car Exhaust System



YP mandrel bends have the tightest bend radius on the market.They have been specifically designed to avoid the issue of wrinkling along the inside of pipes and tubing, during their manufacturing process with our up to date mandrel bending machines. Mandrel bending is a method where a steel rod is inserted into the tubing as it is bent. This technique perfects the tube bend without wrinkling or breaking it at the bending point. Many details as below. If you have any bend pipe demand, pls feel free to contact Yunpeng, your inquiry will be replied within 24hours.



Mandrel bends introduction:



Application: Car accessories

Material: Aluminum

Length: 152mm or customized

Angle: 30,45,60,75,90,135,180,0 degree

Diameter: 1/2 inch - 8 inch

Technique: Forge, welding

Shape: Round



Material Choice

Different materials, such as carbon steel, aluminum, stainless steel, titanium alloy, aluminum plated pipe, galvanized pipe are available in Yunpeng.



Size and Diameter

we can also make the pipe diameter from 1/2 to 6 inches

Bending radius minimum 1.0D, others like 1.2D, 1.3D,1.5D,2Detc.

The length of the foot we can make is 152mm

Wall thickness

Stainless steel commonly used wall thickness is 1.5,1.25, liner muffler is 1.0,1.2;

Aluminum is from 1.2-2.5mm, elbow is usually 1.5-2.5mm.

Angle

From 0 degrees to 180 degrees, like 15°,30°,45°,60°,75°,90°,135°,180°

Surface treatment

We can do raw,polishing,brush, antirustoil, plating including zinc plating,chrome plating, anodize,spray paint,powder coating.

Aperture processing

We can do beaded rolled,beaded ends,swaged,expanding,cut

Welding

we use the tig welding and mig weiding

Feature

1.Constructed using 100% aluminum and stainless steel

2.Variety radius,many applications;

3.Many tube diameters and lengths;

4.Easy Installation;

5.Smooth, anti-rust.

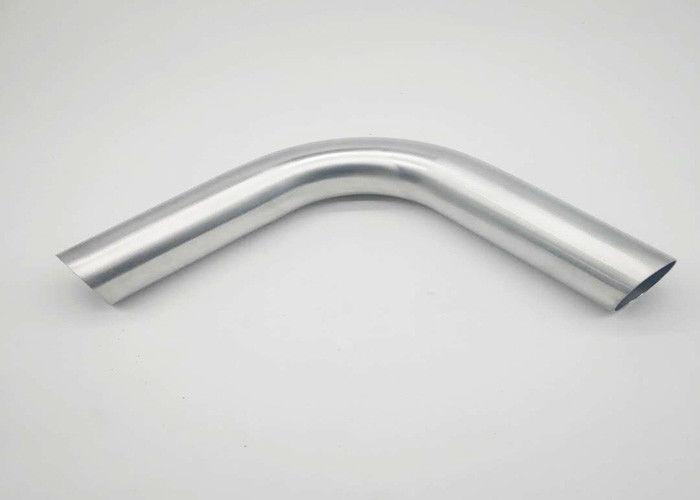

152mm 30 Degree 1/2" Stainless Steel Mandrel Bends 0

Packing and Delivery Time:



Packing:

Inner: Foam bag+Carton



    Pallet : Sea-Worthy Packing or Air-Worthy Packing
Delivery:

5 work days after receipt of payment if stock available

7-20 Days for mass production

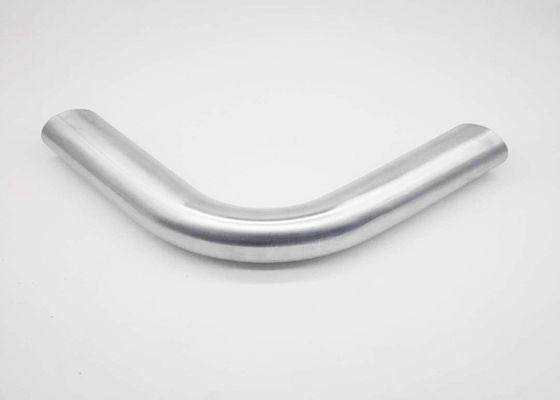

152mm 30 Degree 1/2" Stainless Steel Mandrel Bends 1

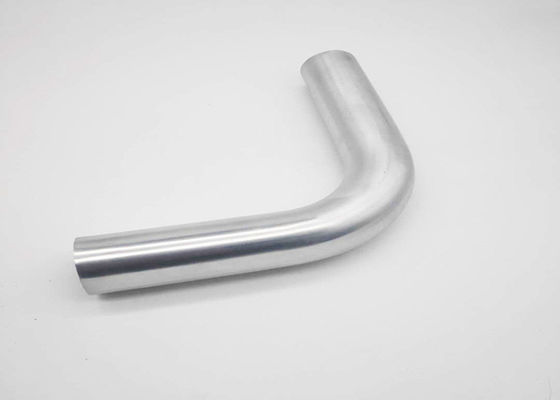

152mm 30 Degree 1/2" Stainless Steel Mandrel Bends 2



Contact Me:



Contact: Becky Shao

Email becky@ypmachinery.com

WhatsappWechatMobile +86-15933316077



Quality assurance:


1.Every production process has a special person to test to ensure quality
2.Have professional engineers to check the quality
3.All defective products because of us, will be replaced for free.

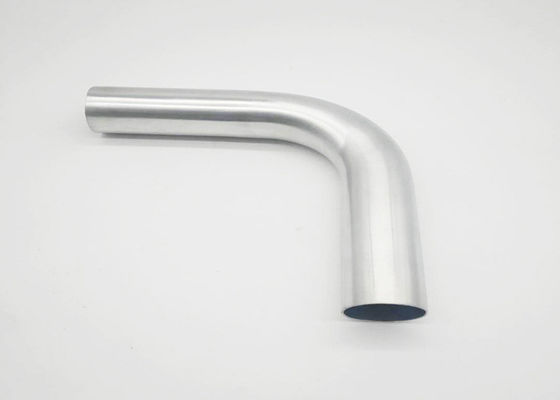

152mm 30 Degree 1/2" Stainless Steel Mandrel Bends 3
