Product Details:
|
| Material: | 304 Stainless Steel | Application: | Vehicle Engine Exhaust System |
|---|---|---|---|
| Fitment: | Universal | Name: | Double Layers Exhaust Flexible Pipe With Inner Braid |
| Inlet/Outlet: | 1.5"-6" | Type: | Inner Braided |
| Function: | Decrease Engine Noise And Vibration | Cap: | Stainless Or Aluminized |
| High Light: | 1.5mm Stainless Steel Exhaust Flex Pipe,1.5mm flexible steel exhaust pipe,1.5mm 6 inch stainless steel flex pipe |
||

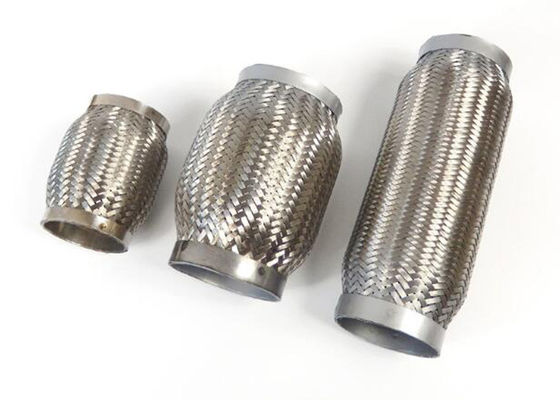

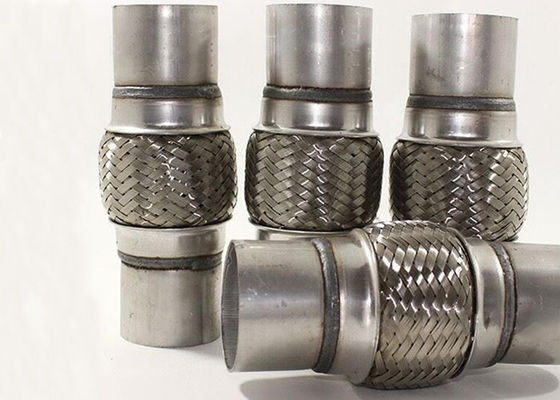

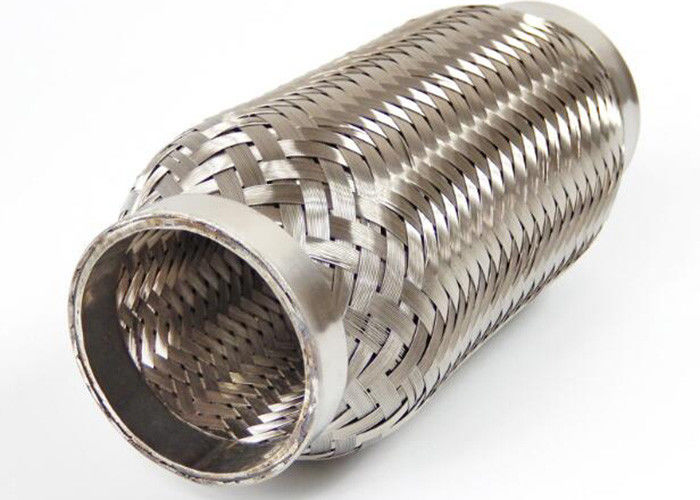

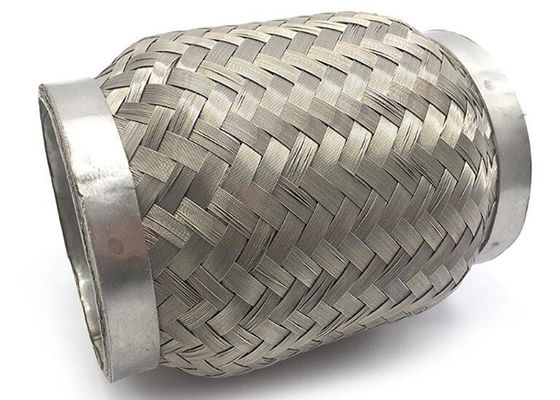

Double Layers Exhaust Flexible Pipe with Inner Braid
Product Description:
Tube made of 304ss ;
Wall thickness:1.5mm;
Flange:201ss,10mm thick;
TIG welding,the welding deeper and stronger,never crack and break;
Mirror polished /brush/non-polish optional;
No burr inside, much smooth;
Very Easy to install, clean and maintenance;
Each exhaust pipe is inspected strictly before shippment.
This one is the type with inner braided liner, much stronger for midium use, more flexibility.
Sizes of exhaust pipe at YP:
| Nominal Inside Diameter I.D. |
Overall Length O/L |
Nominal Inside Diameter I.D. |
Overall Length O/L |
Nominal Inside Diameter I.D. |
Overall Length O/L |
| 1-3/4(45mm) | 4”(102mm) | 2-1/2”(63.5) | 4”(102mm) | 43mm | 120mm |
| 6”(152mm) | 6”(152mm) | 165mm | |||
| 8”(203mm) | 8”(203mm) | 180mm | |||
| 9”(230mm) | 9”(230mm) | 50mm | 120mm | ||
| 10”(254mm) | 10”(254mm) | 165mm | |||
| 11”(280mm) | 11”(280mm) | 54.5mm | 120mm | ||
| 12”(305mm) | 12”(305mm) | 150mm | |||
| 2”(51mm) | 4”(102mm) | 3”(76.2mm) | 4”(102mm) | 180mm | |
| 6”(152mm) | 6”(152mm) | 200mm | |||
| 8”(203mm) | 8”(203mm) | 250mm | |||
| 9”(230mm) | 9”(230mm) | 60mm | 160mm | ||
| 10”(254mm) | 10”(254mm) | 200mm | |||
| 11”(280mm) | 11”(280mm) | 240mm | |||
| 12”(305mm) | 12”(305mm) | 65mm | 150mm | ||
| 2-1/4”(57.2mm) | 4”(102mm) | 3-1/2”(89mm) | 6”(152mm) | 200mm | |
| 6”(152mm) | 8”(203mm) | 70mm | 100mm | ||
| 8”(203mm) | 9”(230mm) | 120mm | |||
| 9”(230mm) | 10”(254mm) | 150mm | |||
| 10”(254mm) | 12”(305mm) | 200mm | |||
| 11”(280mm) |
Other Sizes are available upon request. ID32, ID36, ID38, ID40,ID46,ID48,ID115,ID125... |
||||
| 12”(305mm) | |||||
Detailed Pictures and Drawing:
More Types:
Main product:
1. Exhaust system .performance exhaust pipe .
2. Catback , manifold , resonator , catalytic converter .
3. universal exhaust muffler / silencer .
4. Dedicated / universal muffler tip .
5. Silencer stuff / exhast valve cutout / flexible pipe / flange / hanger rubber / fireproof belt .
6. Various Exhaust Clamps
