2.5 Inches 19mm SUS304 Turbo Exhaust Clamp
Basic Properties
Trading Properties
| Item name: | Stainless Steel Turbo Exhaust System Pipe V Band Clamp Assembly Kit | Size: | 2.5 Inches |
| Materials: | SUS304 | Band width: | 3/4"(19mm) |
| Flange: | Male And Female | Surface: | Polished |
| Package: | Individual Packaging | Type: | Exhaust Clamp |
| Application: | Turbo Exhaust System | ||
| High Light: | SUS304 Turbo Exhaust Clamp,19mm Turbo Exhaust Clamp,19mm turbo v band clamp |
||

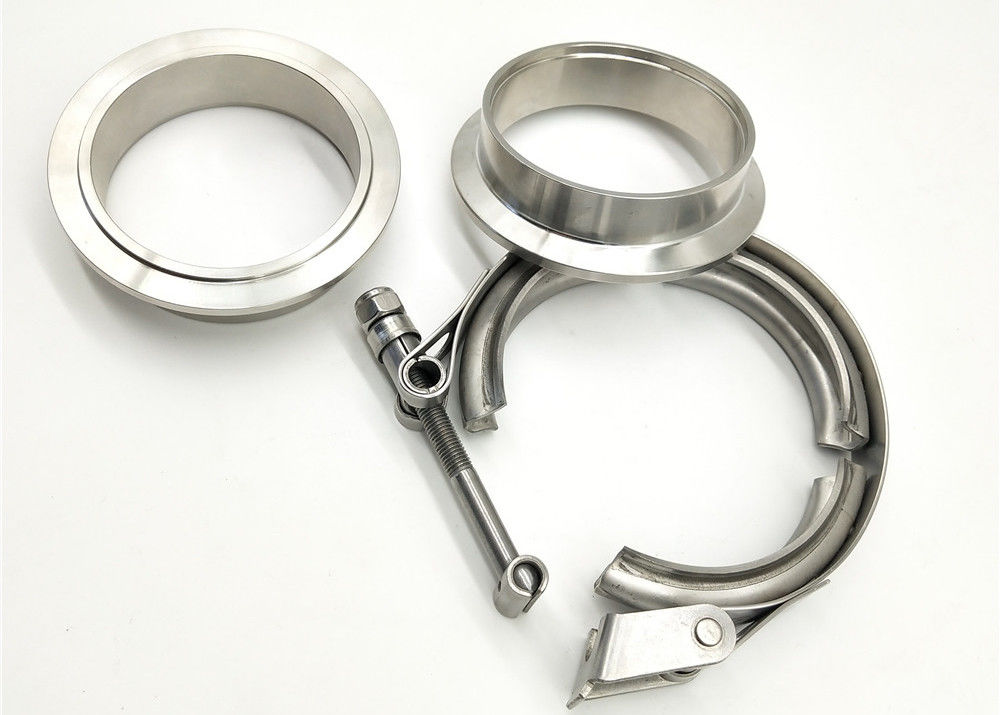

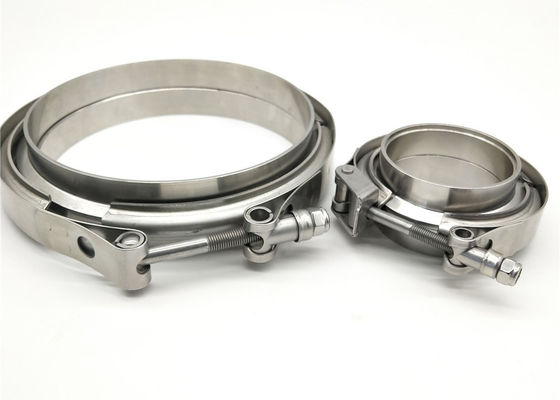

Stainless Steel Turbo Exhaust System Pipe V Band Clamp
Stainless steel exhaust clamp kit - Complete V-band kit is ideal for performance exhaust systems, downpipes, catback exhausts, turbo back exhausts and more. High quality CNC stainless steel flanges provide a leak free exhaust seal with no gasket required. The V-band clamp allows you to quickly connect and disconnect exhaust pipes without having to fumble with nuts or bolts.
|
VBK |
Includes1 V band clamp and 2 Flanges (Flanges can be M/F style or FF style) Quick release model and Standard Model |

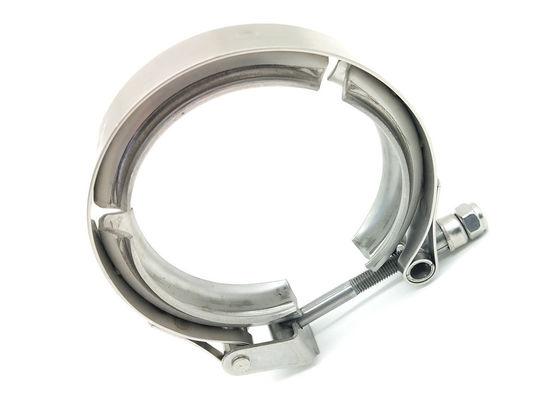

| VBC | Includes 1 V band clamp |
| M/F | Male and Femal Flanges with Grooves |
| FF | Flat flanges |
Specification:
| Size(Inch) | Flange ID(mm) | Exhaust pipe OD(mm) | Materials |
| 1.5 | 38.9 | 38.1 | Stainless steel 304 |
| 1.75 | 45.3 | 44.5 | |
| 2 | 51.6 | 50.8 | |
| 2.25 | 57.9 | 57.1 | |
| 2.5 | 64.3 | 63.5 | |
| 2.75 | 70.6 | 69.8 | |
| 3 | 77 | 76.2 | |
| 3.25 | 83.3 | 82.5 | |
| 3.5 | 89.7 | 88.9 | |
| 3.75 | 96.4 | 95.6 | |
| 4 | 102.4 | 101.6 | |
| 4.5 | 115.1 | 114.3 | |
| 5 | 127.8 | 127 | |
| 6 | 153.2 | 152.4 |
Application & Feature:
When you're making a downpipe, catback exhaust, turbo back exhaust, mid pipe, or up pipe for your car, truck, or other vehicle this V-band kit is ideal for connecting different pipe sections. Conventional exhaust flanges multiple nuts, bolts, washers and a gasket. A V-band kit eliminates all of these and allows for a connection with a single nut.
EASY ON, EASY OFF - A V-band kit allows you to connect or disconnect sections of your exhaust by removing a single nut. Conventionally exhaust flanges involve multiple bolts, washers, nuts, and gaskets. Save time and have piece of mind that your exhaust sections will stay sealed and secured with a 3" V-band kit.
Installation of V-band Clamp:
Packaging and delivery:
Package method: Plastic bag + carton or as clients's request
Delivery time:in 3 days if stocks available, new production time depends on ordered quantity
Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)
Shipping terms: FOB, CIF, CNF DDP etc.
