2.5 Inch 2 1/2 Butt Joint Stainless Steel Exhaust Clamps

Recommedation is good. Reception is professional. Wish to place more orders with flexible exhaust pipe.

—— Rodrigo Favaro

Good company with nice service and high quality for exhaust muffler.

—— John Hermans

Thanks for your good after-sale service. Popular design for the exhaust pipe and muffler system.

—— Aidyn Hadiev

Good support. High quality of exhaust clamps. We'll reorder soon.

—— OAKANTSE Lucas

I'm Online Chat Now

2.5 Inch 2 1/2 Butt Joint Stainless Steel Exhaust Clamps

2.5 Inch 2 1/2 Butt Joint Stainless Steel Exhaust Clamps
2.5 Inch 2 1/2 Butt Joint Stainless Steel Exhaust Clamps 2.5 Inch 2 1/2 Butt Joint Stainless Steel Exhaust Clamps 2.5 Inch 2 1/2 Butt Joint Stainless Steel Exhaust Clamps

Large Image :  2.5 Inch 2 1/2 Butt Joint Stainless Steel Exhaust Clamps

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YP-EXFBC040
Payment & Shipping Terms:
Minimum Order Quantity: Individual
Price: $1.2~$1.5 PER PIECE
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION MONEYGRAM
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: 2.5 Inch 2 1/2 Butt Joint Exhaust Band Clamp Sleeve Stainless Steel Model Number: YPEXBC025
Dimension Scope: 2.5 Inch Materials: Stainless Steel 304
Type: Butt Joint Band Clamp Application: Automotive Aftermarket
Standard Or Nonstandard: Standard Surface Treatment: Polished
Related Clamp: V Band Clamp, U Bolt Clamp, Slim Band Clamp
High Light:

Butt Joint Stainless Steel Exhaust Clamps

,

2 1/2 Butt Joint 2.5 exhaust band clamp

,

2 1/2 Butt Joint 2.5 inch exhaust clamp

Product description:

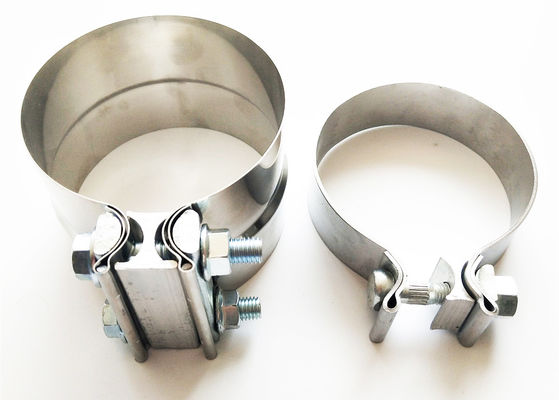

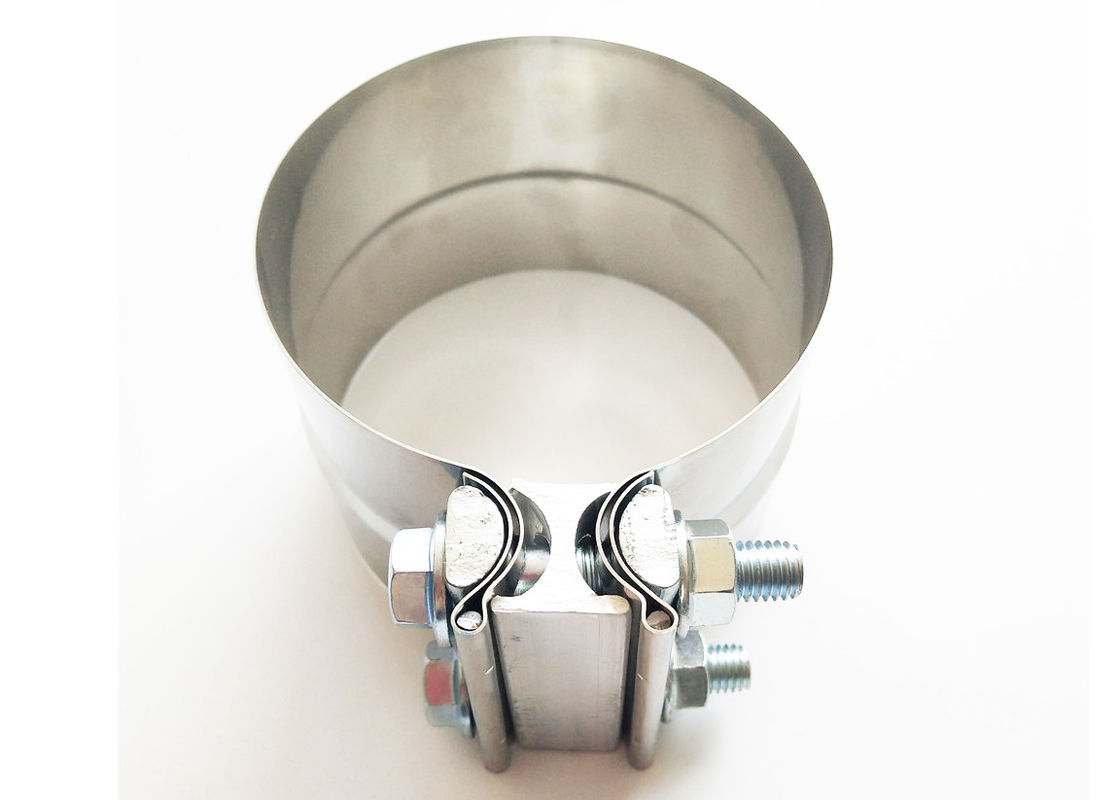

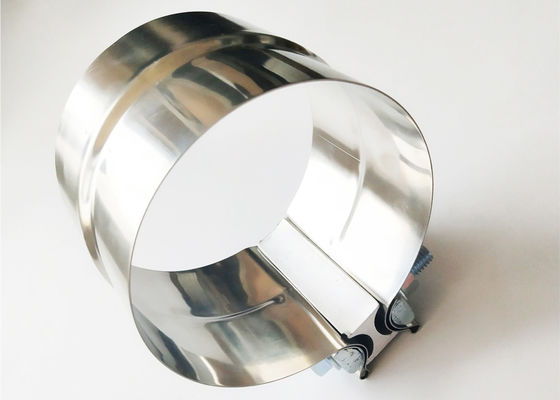

2.5 Inch Butt Joint Exhaust Band Clamp Sleeve Stainless Steel



  • Joins 2.5" OD pipe to 2.5" OD pipe. These butt clamps feature unitized construction which minimized part number complexity and maximizes material efficiency for reduced weight. Width of strap: 3inch (76.2mm).
  • Distributes the clamping force evenly over the entire 360° to prevent leaks and control material distortion. No welding design makes easy and less time consuming to install or remove. The 2 1/2 exhaust clamp come with an I-block which creates a complete "Inner-circle Seal" when clamping. Can create a better seal, helping prevent exhaust gas and noise leaks.
  • Material: 304 stainless steel band, zinc-plated M10 flange bolt and nut, steel gasket, aluminum alloy I-block. The exhaust clamp has strong strength, good durability, great appearance and anti-corrosion advantage. Torque: 63 N·m.



2.5 Inch 2 1/2 Butt Joint Stainless Steel Exhaust Clamps 0



Specification as followed:



MODEL NUMBER

Dia(mm)

Dia(in)

YP-EXFBC020

51

2"

YP-EXFBC225

57

2.25"

YP-EXFBC250

64

2.5“

YP-EXFBC275

70

2.75”

YP-EXFBC300

76

3“

YP-EXFBC350

89

3.5”

YP-EXFBC400

102

4“

YP-EXFBC450

114

4.5”

YP-EXFBC500

127

5“

YP-EXFBC600

152

6”



Application:



Application: Butt joint band 2.5" exhaust clamp is a simple, effective way to connect exhaust system components such as pipes, mufflers and catalytic converters. Unique seal and high clamp loads are provided without distorting your exhaust components, allowing the flexibility to disassemble for service. Aslo can be used to repair exhaust pipes.

Note: There is a flat face and arc curved face on the I-block , please put the arc curved face toward to the exhaust pipe make sure to get the tight close.



2.5 Inch 2 1/2 Butt Joint Stainless Steel Exhaust Clamps 1









Packing and delivery:



Package method:Plastic bag +carton or as clients's request

Delivery time:in 3 days if stocks available, new production time depends on ordered quantity

Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)

Shipping terms: FOB, CIF, CNF DDP etc.



2.5 Inch 2 1/2 Butt Joint Stainless Steel Exhaust Clamps 2
