Product Details:
|
| Product Material: | Stainless Steel 304 | Parts: | Auto Engine Parts |
|---|---|---|---|
| Delivery Time: | 5 Days If Stock, 10-20 If No Stock | Inlet Diameter: | 51mm |
| Type: | Single Braided , Double Braided , | Overal Length: | 150mm |
| Application: | Vehicle Exhaust System | Finish: | Plain |
| High Light: | 51 * 150mm Exhaust Bellow Pipe,51 * 150mm flexible exhaust bellows,SS304 Exhaust Bellow Pipe |
||

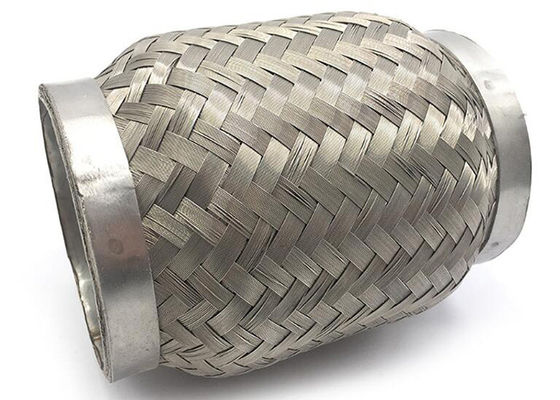

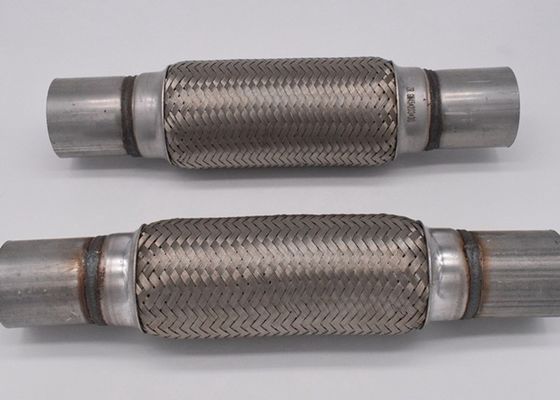

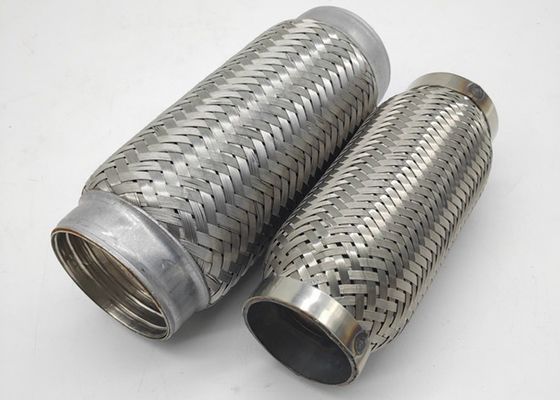

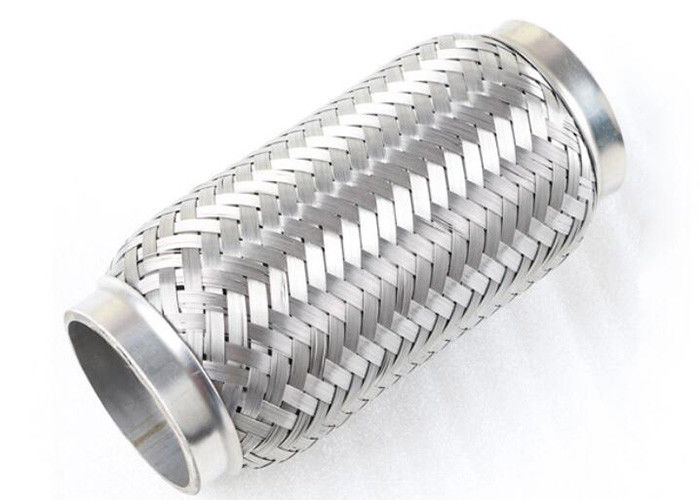

51 * 150 Stainless Steel Exhaust Bellow Pipe , flexible Bellows Pipe
Product Quick Information:
|
Product Name |
51 * 150 Stainless Steel Exhaust Bellow Pipe , flexible Bellows Pipe |
|
Material |
Stainless Steel 409 / 304 / 316, Aluminum |
|
Packing |
Bubble PE bag, Wooden Case, Neutral packing or negotiated |
|
Size / Inner Diameter |
51mm (2 inch) , with braided length 150mm (6inch) , and overall length 250mm (10inch) , other sizes are available too. |
|
Wall Thickness |
1.0mm , 1.2mm |
|
Color |
Silver |
|
Price Term |
EXW , FOB , CIF , C&F |
|
Car Model |
Universal |
|
Application / Usage |
Muffler , Car Exhaust System , Turbos |
| Sample | Available |
Specification Introduction:
1. ID:1"~6" Length:4"~17" or as requirement
2. To resolve minor deviation because of piping connection and eliminate the pipeline residual stress;
3.Metal bellows to absorb large axial displacement between straight tube and support frame , and small horizontal displacement;
4 Very.Easy to install, clean and maintenance.
5. More types are available
6. Outer braid stainless steel,knitted by 12 units
7. Cap stainless steel or aluminized
8. Working pressure 0~5 Mpa
9. Packaging each one with a PE bag , usually 25 pieces in a carton box as usual or as requirement
Available Types :
Standard Sizes:
| Nominal Inside Diameter I.D. |
Overall Length |
Nominal Inside Diameter I.D. |
Overall Length |
Nominal Inside Diameter I.D. |
Overall Length |
|
1-3/4(45mm) |
4”(102mm) | 2-1/2”(63.5) | 4”(102mm) | 43mm | 120mm |
| 6”(152mm) | 6”(152mm) | 165mm | |||
| 8”(203mm) | 8”(203mm) | 180mm | |||
| 9”(230mm) | 9”(230mm) | 50mm | 120mm | ||
| 10”(254mm) | 10”(254mm) | 165mm | |||
| 11”(280mm) | 11”(280mm) | 54.5mm | 120mm | ||
| 12”(305mm) | 12”(305mm) | 150mm | |||
| 2”(51mm) | 4”(102mm) | 3”(76.2mm) | 4”(102mm) | 180mm | |
| 6”(152mm) | 6”(152mm) | 200mm | |||
| 8”(203mm) | 8”(203mm) | 250mm | |||
| 9”(230mm) | 9”(230mm) | 60mm | 160mm | ||
| 10”(254mm) | 10”(254mm) | 200mm | |||
| 11”(280mm) | 11”(280mm) | 240mm | |||
| 12”(305mm) | 12”(305mm) | 65mm | 150mm | ||
| 2-1/4”(57.2mm) | 4”(102mm) | 3-1/2”(89mm) | 6”(152mm) | 200mm | |
| 6”(152mm) | 8”(203mm) | 70mm | 100mm | ||
| 8”(203mm) | 9”(230mm) | 120mm | |||
| 9”(230mm) | 10”(254mm) | 150mm | |||
| 10”(254mm) | 12”(305mm) | 200mm | |||
| 11”(280mm) |
Other Sizes are available upon request. ID32, ID36, ID38, ID40,ID46,ID48,ID115,ID125... |
||||
| 12”(305mm) | |||||
