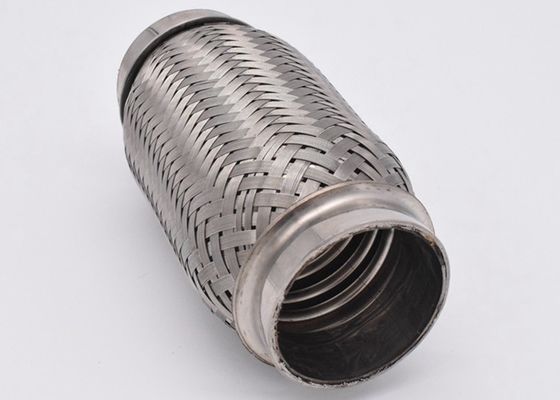

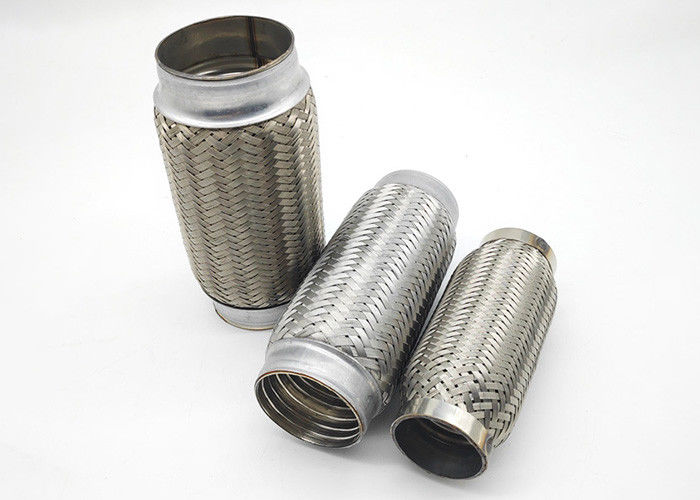

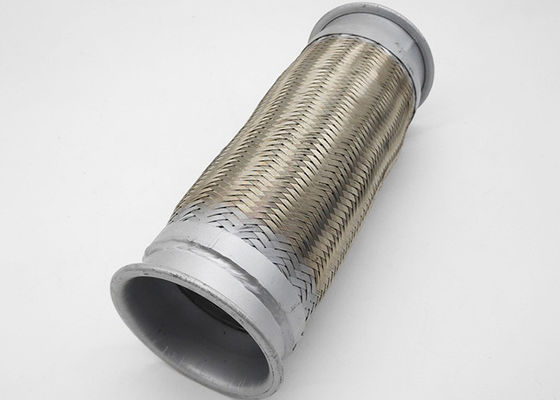

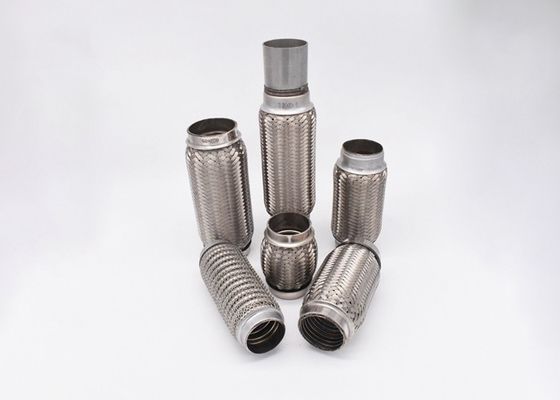

Truck 7 Inch SS409 Flexible Exhaust Bellows

Truck 7 Inch SS409 Flexible Exhaust Bellows
Truck 7 Inch SS409 Flexible Exhaust Bellows Truck 7 Inch SS409 Flexible Exhaust Bellows Truck 7 Inch SS409 Flexible Exhaust Bellows Truck 7 Inch SS409 Flexible Exhaust Bellows

Large Image :  Truck 7 Inch SS409 Flexible Exhaust Bellows

Product Details:
Place of Origin: Hebei , China
Brand Name: YP
Model Number: YP13404-YP70200
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$ 1.5--8.99 /PC
Packaging Details: carton
Delivery Time: 10-14 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80000PCS/MONTH
Detailed Product Description
Product Name: Truck Double Braided Flexible Exhaust Bellows Flexible Tail Car Make: Universal
Application: Vehicle Exhaust System Warranty: 1 Year
Function: Reduce Vibration And Noise Product Material: SS 304 / 409
Delivery Time: 5 Days If Stock, 10-20 If No Stock Model Number: 1.5"-6"
High Light:

SS409 Flexible Exhaust Bellows

,

7 Inch Flexible Exhaust Bellows

,

7 Inch flexible bellow pipe

Truck Double Braided Flexible Exhaust Bellows Flexible Tail in Stainless Steel



♦ Product Description:

Stainless steel exhaust flexible pipes is a part of the engine exhaust system of the car. They're constructed with 1 or 2-ply bellows and together with a seamless, convoluted inner core—increasing flexibility in order to reduce vibrations and prevent exhaust leaks that allows your car to be more comfortable and enjoyable in use. Such flex pipes are provided in a variety of lengths, diameters, and many styles.



For example, the common one is a flex pipe with four layers. The outer and inner layers are made from the weaving stainless wire. Between these layers, there is a double layer bellow, also made of stainless steel. Standard Caps with connectors are installed on both sides of the exhaust flex pipe. They securely fasten all four layers and allow them to install this element using clamps or by the "pipe-to-pipe" welding method and accurately match the right size.



♦ Product Specifications:



Part No. innner dia. inch inner diamater mm Length inch Length mm
YP13404 1-3/4" 45 4" 102
YP13406 1-3/4" 45 6" 152
YP13407 1-3/4" 45 7" 178
YP13408 1-3/4" 45 8" 203
YP13409 1-3/4" 45 9" 230
YP13410 1-3/4" 45 10" 254
YP13411 1-3/4" 45 11" 280
YP13412 1-3/4" 45 12" 305
YP20004 2" 50.8 4" 102
YP20006 2" 50.8 6" 152
YP20008 2" 50.8 8" 203
YP20009 2" 50.8 9" 230
YP20010 2" 50.8 10" 254
YP20011 2" 50.8 11" 280
YP20012 2" 50.8 12" 305
YP21404 2-1/4" 57.2 4" 102
YP21406 2-1/4" 57.2 6" 152
YP21408 2-1/4" 57.2 8" 203
YP21409 2-1/4" 57.2 9" 230
YP21410 2-1/4" 57.2 10" 254
YP21411 2-1/4" 57.2 11" 280
YP21412 2-1/4" 57.2 12" 305
YP21204 2-1/2" / 3" 63.5 / 76.2 4" 102
YP21206 2-1/2" / 3" 63.5 / 76.2 6" 152
YP21208 2-1/2" / 3" 63.5 / 76.2 8" 203
YP21209 2-1/2" / 3" 63.5 / 76.2 9" 230
YP21210 2-1/2" / 3" 63.5 / 76.2 10" 254
YP21211 2-1/2" / 3" 63.5 / 76.2 11" 280
YP21212 2-1/2" / 3" 63.5 / 76.2 12" 305


Drawings and Types:



Truck 7 Inch SS409 Flexible Exhaust Bellows 0



♦ Warehouse and Packing:



Truck 7 Inch SS409 Flexible Exhaust Bellows 1


Advantages / Characteristics :

1.High flexibility with long life
2.For high temperature
3.Anti-corrosion
4.Absorb noise and decouple vibration

♦ About Us:

We make and supply many car accessories like exhaust muffler, exhaust bend pipe, corrugated flexible pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle joint clamp and other exhaust accessories.

Our customers cover Middle-East,Southeast Asia, Asia, USA,Canada, Europe, South America, and so on.
