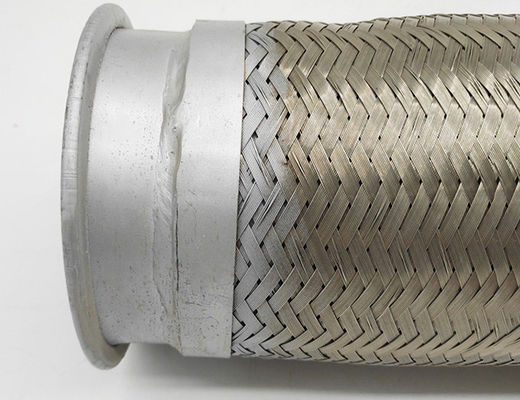

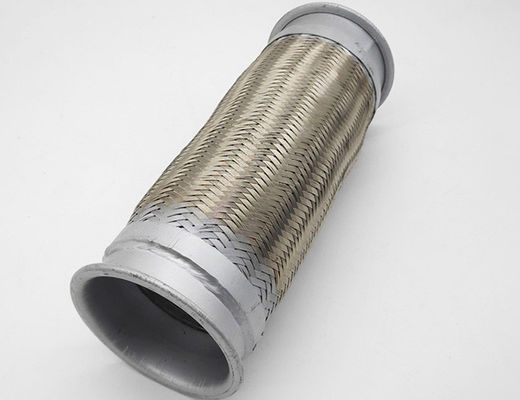

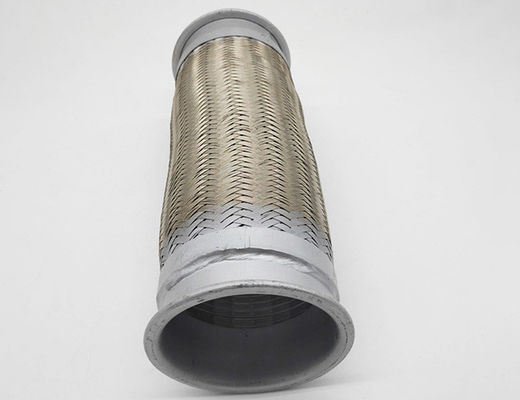

Tractor Corrugated SUS 201 3.5” Flexible Metal Exhaust Hose

Tractor Corrugated SUS 201  3.5” Flexible Metal Exhaust Hose
Tractor Corrugated SUS 201  3.5” Flexible Metal Exhaust Hose Tractor Corrugated SUS 201  3.5” Flexible Metal Exhaust Hose Tractor Corrugated SUS 201  3.5” Flexible Metal Exhaust Hose Tractor Corrugated SUS 201  3.5” Flexible Metal Exhaust Hose

Large Image :  Tractor Corrugated SUS 201 3.5” Flexible Metal Exhaust Hose

Product Details:
Place of Origin: Hebei , China
Brand Name: YP
Model Number: YP13404-YP70200
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$ 1.5--8.99 /PC
Packaging Details: carton
Delivery Time: 10-14 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80000PCS/MONTH
Detailed Product Description
Other Name: Tractor Muffler Flexible Exhaust Pipe Model Size: 1.5"-6"
Collar: Aluminum Delivery: 5-20 Days
Type: Braid With Interlock Quality: Good
Application: Tractor Engine Exhaust System Total Length: 4"- 12”
High Light:

3.5” flexible metal exhaust hose

,

SUS 201 flexible metal exhaust hose

,

SUS 201 flexible auto exhaust pipe

Tractor Muffler Flexible Exhaust Pipe , Exhaust Bellow Pipe for tractor



The flexible exhaust pipe bellow is a common part for engine exhaust system of car or truck. It allows the exhaust system some flexibility. Flex. Pipe are an essential part of any front wheel drive vehicle and on most all wheel drive vehicles. On front wheel cars, since the motor is mounted transversely, when you accelerate the motor rocks and the flex. Pipe protects your exhaust system from breakage and more noise. Without that extra flexibility , the rocking motion would crack the exhaust system and cause a loud leak.



Specifications:



1. ID:1"~6" Length:4"~12" or as requirement


2. To resolve minor deviation because of piping connection and eliminate the pipeline residual stress;


3.Metal bellows to absorb large axial displacement between straight tube and support frame , and small horizontal displacement;



4 Very.Easy to install, clean and maintenance.


5. More types are available


6. Outer braid stainless steel,knitted by 12 units


7. Cap stainless steel or aluminized


8. Working pressure 0~5 Mpa


9. Packaging each one with a PE bag , usually 25 pieces in a carton box as usual or as requirement




 We supply many types, based on different constructions and different material. SUS 201, SUS 202, SUS 304 SUS316, Aluminum are all available, standard sizes like 1.5” / 1.75” / 2.0” / 2.25” / 2.5” / 3.0” / 3.5” / 4.0”, etc.



Regular 6 Types on the market as following:



Type 1 : Outer Braided Flexible pipe with inner bellow

Type 2 : Outer Braided Flexible pipe with braided liner and bellows in the middle

Type 3 : Bellows with interlock

Type 4: Stainless steel Bellows

Type 5 : Braided Flexible pipe with welded nipples

Type 6:  Mesh Braided Flexible Pipe



Tractor Corrugated SUS 201  3.5” Flexible Metal Exhaust Hose 0



See the drawings:



Tractor Corrugated SUS 201  3.5” Flexible Metal Exhaust Hose 1


Standard Sizes of the flexible pipe bellow:



Part No. innner dia. inch inner diamater mm Length inch Length mm
YP13404 1-3/4" 45 4" 102
YP13406 1-3/4" 45 6" 152
YP13407 1-3/4" 45 7" 178
YP13408 1-3/4" 45 8" 203
YP13409 1-3/4" 45 9" 230
YP13410 1-3/4" 45 10" 254
YP13411 1-3/4" 45 11" 280
YP13412 1-3/4" 45 12" 305
YP20004 2" 50.8 4" 102
YP20006 2" 50.8 6" 152
YP20008 2" 50.8 8" 203
YP20009 2" 50.8 9" 230
YP20010 2" 50.8 10" 254
YP20011 2" 50.8 11" 280
YP20012 2" 50.8 12" 305
YP21404 2-1/4" 57.2 4" 102
YP21406 2-1/4" 57.2 6" 152
YP21408 2-1/4" 57.2 8" 203
YP21409 2-1/4" 57.2 9" 230
YP21410 2-1/4" 57.2 10" 254
YP21411 2-1/4" 57.2 11" 280
YP21412 2-1/4" 57.2 12" 305
YP21204 2-1/2" / 3" 63.5 / 76.2 4" 102
YP21206 2-1/2" / 3" 63.5 / 76.2 6" 152
YP21208 2-1/2" / 3" 63.5 / 76.2 8" 203
YP21209 2-1/2" / 3" 63.5 / 76.2 9" 230
YP21210 2-1/2" / 3" 63.5 / 76.2 10" 254
YP21211 2-1/2" / 3" 63.5 / 76.2 11" 280
YP21212 2-1/2" / 3" 63.5 / 76.2 12" 305


Warehouse / Packing  :



Tractor Corrugated SUS 201  3.5” Flexible Metal Exhaust Hose 2



Tractor Corrugated SUS 201  3.5” Flexible Metal Exhaust Hose 3


FAQ:

1. How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.


2. What kind of auto parts we provide?
We have exhaust muffler, exhaust pipe, corrugated flexible pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle joint clamp and other exhaust accessories for your choose.


3. How about the warranty ?
We have 1 year warranty and lifelong maintenance


4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
