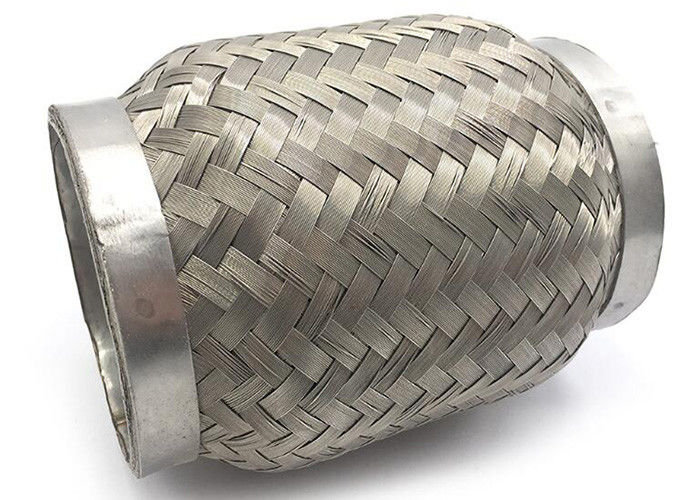

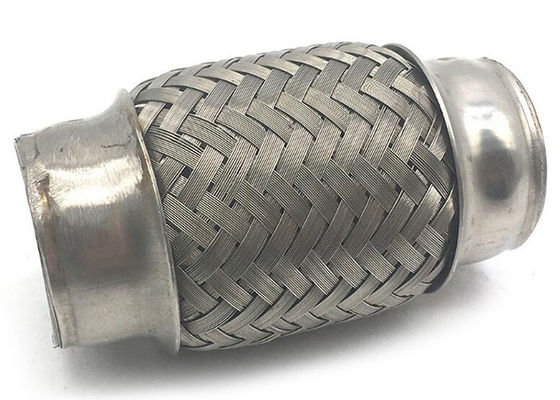

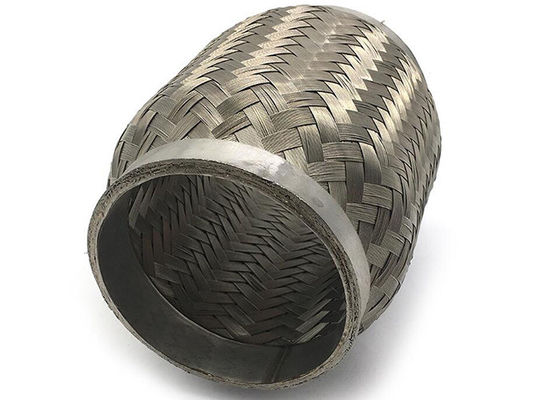

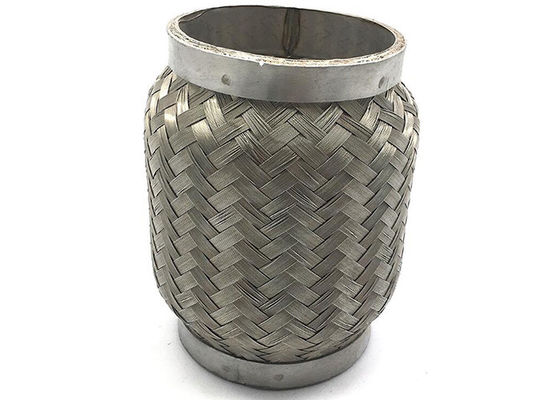

SS409 76mm X 203mm Flexible Exhaust Bellows
76mm x 203mm flexible exhaust bellows
,SS409 flexible exhaust bellows
,76mm x 203mm stainless steel exhaust bellows
High Temperature Resistance Exhaust Flexible Bellow , Flex Exhaust Bellows in Stainless Steel
The flexible exhaust pipe bellow is a flex. piece of pipe that allows the exhaust system some flexibility. It is installed in the exhaust pipe between the engine exhaust manifold and the muffler, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of the exhaust muffler system.
Features and Benefits:
1 . Easily installation. There is no need to remove the whole exhaust system. Only to cut out the failed exhaust flex pipe and install a new spare part using the welding method or clumps instead
2 . Cost-effective. Malfunctioning exhaust flex pipe can be easily replaced with a new one without the necessity to purchase the entire exhaust unit
3 . Applicable to universal Exhaust pipe
4 . Manufactured from stainless steel for durability and corrosion resistance
5 . Many styles and sizes available for your installation needs
6 . 1 Year Warranty
Quick Information:
Product Name | Stainless Steel Exhaust Muffler Flexible Pipe |
Material | Stainless Steel 409 / 304 / 316, Aluminum |
Quality | Genuine / OEM |
Packing | Bubble bag, Wooden Case, Neutral packing or negotiated |
MOQ | 1 pc |
Size / Inner Diameter | 1.5"-6" (1.5” / 1.75” / 2.0” / 2.25” / 2.5” / 3.0” / 3.5” / 4.0” ) |
Length | 4” - 12” |
Wall Thickness | 1.0mm , 1.2mm |
Color | Silver |
Price Term | EXW , FOB , CIF , C&F |
Car Model | Universal |
Application / Usage | Muffler , Car Exhaust System , Turbos , Waste-gates , Blow-off Valves |
Delivery time | 5 days if stock , 10-20 if no stock as per quantity |
Advantage |
|
Warranty | 6 months |
| Sample | Available |
Following common 4 types of exhaust flexible pipe , customized sizes are available on us too.
1.Exhaust Flexible Pipe I
an outer braid + an inner bellow, such type is for light use.
2. Exhaust Flexible Pipe II
an outer braid + bellows in the middle + an inner braid, such type offers more flexibility, for medium use, has longer life
3. Exhaust Flexible Pipe III
Braided Flexible pipe with welded nipples
4. Exhaust Flexible bellow IV (bellow)
an outer braid + a interlock tube with bellows in the middle, for heavy use. The interlock pipe is used to reduce vibration and noise, and make the pipe most longest life.
Warehouse and Packing:
Specifications:
| 1-3/4(45mm) | 4”(102mm) | 2-1/2”(63.5) | 4”(102mm) | 43mm | 120mm |
| 6”(152mm) | 6”(152mm) | 165mm | |||
| 8”(203mm) | 8”(203mm) | 180mm | |||
| 9”(230mm) | 9”(230mm) | 50mm | 120mm | ||
| 10”(254mm) | 10”(254mm) | 165mm | |||
| 11”(280mm) | 11”(280mm) | 54.5mm | 120mm | ||
| 12”(305mm) | 12”(305mm) | 150mm | |||
| 2”(51mm) | 4”(102mm) | 3”(76.2mm) | 4”(102mm) | 180mm | |
| 6”(152mm) | 6”(152mm) | 200mm | |||
| 8”(203mm) | 8”(203mm) | 250mm | |||
| 9”(230mm) | 9”(230mm) | 60mm | 160mm | ||
| 10”(254mm) | 10”(254mm) | 200mm | |||
| 11”(280mm) | 11”(280mm) | 240mm | |||
| 12”(305mm) | 12”(305mm) | 65mm | 150mm | ||
| 2-1/4”(57.2mm) | 4”(102mm) | 3-1/2”(89mm) | 6”(152mm) | 200mm | |
| 6”(152mm) | 8”(203mm) | 70mm | 100mm | ||
| 8”(203mm) | 9”(230mm) | 120mm | |||
| 9”(230mm) | 10”(254mm) | 150mm | |||
| 10”(254mm) | 12”(305mm) | 200mm | |||
| 11”(280mm) | | ||||
| 12”(305mm) | |||||
