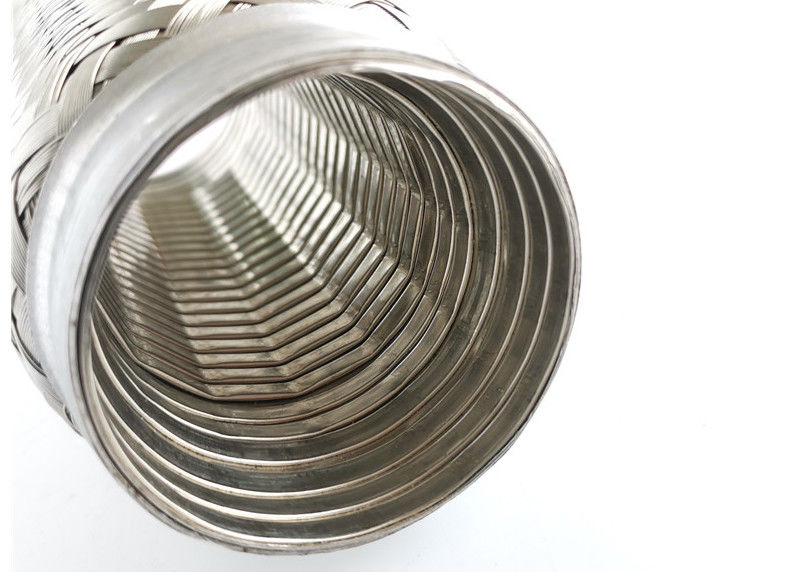

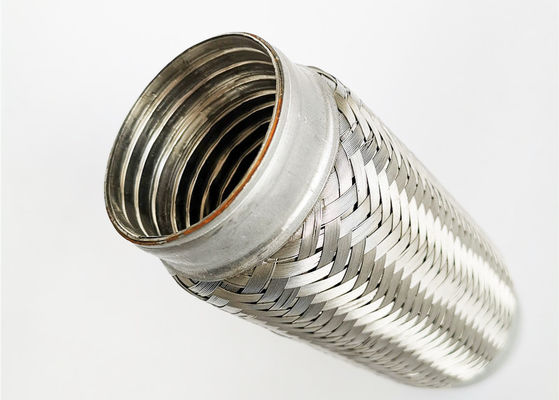

3"X10" SS304 Truck Exhaust Flex Pipe With Interlock Liner
SS304 Truck Exhaust Flex Pipe
,3"X10" Truck Exhaust Flex Pipe
,SS304 flexible steel exhaust pipe
Products Details:
Vehicle Exhaust System Stainless Steel Braided Flexible Pipe With Interlock Liner
Bellow materials: Stainless steel 301 201 202 409 , thinkness between 0.25-0.30mm
Braid and interlock: Stainless steel 304
Collars(cap): Stainless steel or aluminized steel
Nippe(extension pipe): Stainless steel or aluminized steel
Perfect for custom downpipe / exhaust -straight pipe connector, made of high quality steel -heavy duty / tight woven interlock braided pattern -braided (inner and outer) with stainless steel wires ,anodized trumpet opening -eliminating the vibration generated by vehicles engine, therefore relieving stress on exhaust / downpipe system -reducing the risk of cracking manifold / downpipe during vibration cause by vehicles engine / extending life span of vehicles components -extension on both ends for easy welding process.
Keyword: exhaust flex pipe, exhaust corrugated bellow pipe
Structures choice:
1) bellows+out braid+inner braid
2) bellows+out braid+inner braid+nipples
3) Bellow + out braid
4) bellows + out braid + wire mesh
Specification:
|
Diameter (I.D.) |
Pipe Length |
Overall Length (OAL) |
Diameter (I.D.) |
Pipe Length |
Overall Length (OAL) |
Extensions |
| 1-1/2" | 4" | 4" | 1-1/2" | 4" | 8" | 2" |
| 1-1/2" | 6" | 6" | 1-1/2" | 6" | 10" | 2" |
| 1-1/2" | 8" | 8" | 1-1/2" | 8 | 12" | 2" |
| 1-1/2" | 10" | 10" | 1-1/2" | 10" | 14” | 2" |
| 1-3/4" | 4" | 4" | 1-3/4" | 4" | 8" | 2" |
| 1-3/4" | 6" | 6" | 1-3/4" | 6" | 10" | 2" |
| 1-3/4" | 8" | 8" | 1-3/4" | 8" | 12" | 2" |
| 1-3/4" | 10" | 10" | 1-3/4" | 10" | 14" | 2" |
| 1-3/4" | 12" | 12" | 1-3/4" | 12" | 16" | 2" |
| 2" | 4" | 4" | 2" | 4" | 8" | 2" |
| 2" | 6" | 6" | 2" | 6" | 10" | 2" |
| 2" | 8" | 8" | 2" | 8" | 12" | 2" |
| 2" | 10" | 10" | 2" | 10" | 14" | 2" |
| 2" | 12" | 12" | 2" | 12" | 16" | 2" |
| 2-1/4" | 4" | 4" | 2-1/4" | 4" | 8" | 2" |
| 2-1/4" | 6" | 6" | 2-1/4" | 6" | 10" | 2" |
| 2-1/4" | 8" | 8" | 2-1/4" | 8" | 12" | 2" |
| 2-1/4" | 10" | 10" | 2-1/4" | 10" | 14" | 2" |
| 2-1/4" | 12" | 12" | 2-1/4" | 12" | 16" | 2" |
| 2-1/2" | 4" | 4" | 2-1/2" | 4" | 8" | 2" |
| 2-1/2" | 6" | 6" | 2-1/2" | 6" | 10" | 2" |
| 2-1/2" | 8" | 8" | 2-1/2" | 8" | 12" | 2" |
| 2-1/2" | 10" | 10" | 2-1/2" | 10" | 14" | 2" |
| 2-1/2" | 12" | 12" | 2-1/2" | 12" | 16" | 2" |
| 3" | 4" | 4" | 3" | 4" | 8" | 2" |
| 3" | 6" | 6" | 3" | 6" | 10" | 2" |
| 3" | 8" | 8" | 3" | 8" | 12" | 2" |
| 3" | 10" | 10" | 3" | 10" | 14" | 2" |
| 3" | 12" | 12" | 3" | 12" | 16" | 2" |
| 4" | 4" | 4" | 4" | 4" | 8" | 2" |
| 4" | 6" | 6" | 4" | 6" | 10" | 2" |
| 4" | 8" | 8" | 4" | 8" | 12" | 2" |
| 4" | 10" | 10" | 4" | 10" | 14" | 2" |
Packaging and Delivery:
Fast delivery: in 5-8 days
Lead time for new production: No more than 30 days
Shipping terms: EXW FOB CIF
Packing methods: Plastic bag for each product, seaworthy carton and woven bag with pallet or not.
We supplied exhaust flex pipe in hundreds of designs to fit customer's requirement. Please kindly inform us your need. The best offer will be supplied soon.
