Product Details:
|
| Item Name: | Automotive Replacement Band Exhaust Clamp With Semi-Circular Gasket | Material: | Stainless Steel 304 |
|---|---|---|---|
| Structure: | Band Clamp | Type: | Exhaust Clamp |
| Feature: | Easy Installation | Apply For: | Truck, Car, Automobile |
| Vehicle: | Universal | Function: | Pipe Connection |
| High Light: | 4.0” Stainless Steel Exhaust Clamps,31.8mm 4 inch exhaust band clamp,31.8mm 4in v band clamp |
||

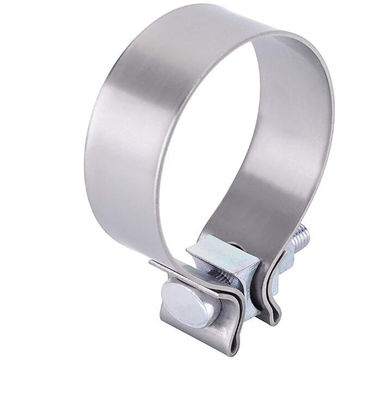

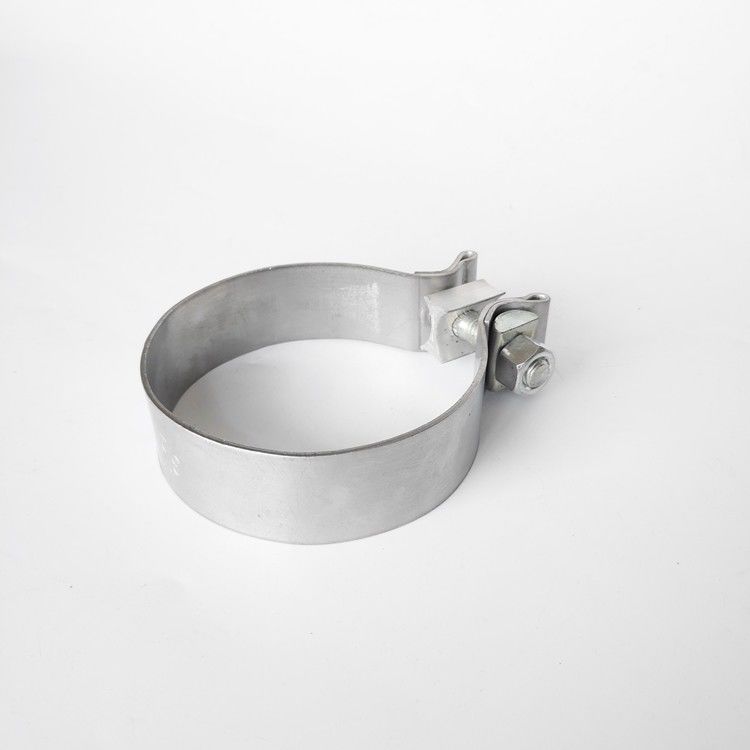

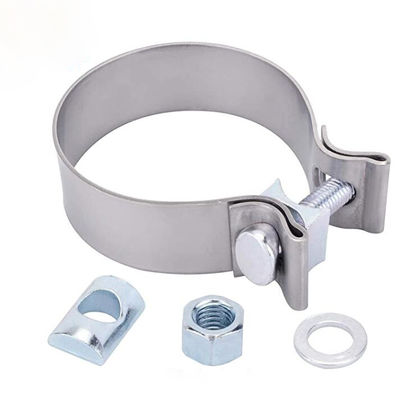

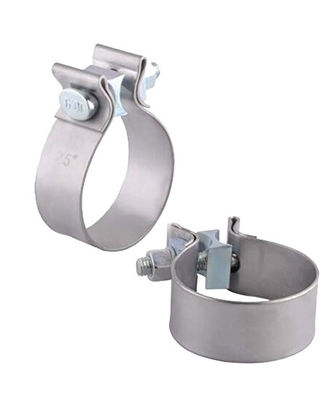

Automotive Replacement Band Exhaust Clamp with Semi-Circular Gasket
Product Quick Details:
Model: Stainless Steel narrow band exhaust clamp
Material: Stainless Stainless steel ( SUS #300 series, SUS #400 series) ; mild steel galvanized
Surface: stainless plain, or polished or galvanized (zinc-plated)
Vehicle Type: All
Features and Benefits:
| Features |
1.The band clamp is a strap of metal, usually stainless or galvanized steel, which will wrap around the exhaust pipe joints easily. Because of the good design structure, this exhaust clamp helps to minimize the part number and maximize the material usage to reduce the weight .
2.I-Block helps to distributes the clamping force evenly over the entire 360° , which prevent any leaks or material distortion or damaging on the pipe.
3.The band is a pre - formed ring, which brings low cost and cheap unit price.
4.304 stainless steel or galvanized material for a long life, and preventing clamps from rusting , corrosion resistant and water resistant.
5.High clamp loads
6.Easy to remove or install
7.Available in a wide range of styles and sizes , customized shape and size are welcome |
| Advantages |
1.Good design structure , 360° sealing
2.No damage or distortion to tube
3.Cheap price
4.No rusting, no corrosion
5.Easy to install or remove
6.High quality performance and best service
7. Widely usage |
This type of narrow band exhaust clamp is a very simple, effective way when connecting your exhaust systems with 360°seal but no damage on the pipe, regular exhaust clamps will distort the tubes when you try to tighten to make it more seal. With an I shape reaction block, which has arc curved face, together with a bolt, the clamp can create a complete "Inner circle Seal", helping avoid any leak of exhaust gas or noise.
The material can be Stainless steel ( SUS #300 series, SUS #400 series) ; mild steel galvanized
Standard Specification:
| Size | Min ID (MM) | Max ID (MM) | Bandwith |
| 2.0” | 50.55 | 55.63 | 31.8mm |
| 2.25” | 56.39 | 60.20 | 31.8mm |
| 2.5” | 62.74 | 66.80 | 31.8mm |
| 3.0” | 74.93 | 79.76 | 31.8mm |
| 4.0” | 100.33 | 104.90 | 31.8mm |
Product Installation:
Pre-attached hardware for fast installation, but no instruction included in the package, professional installation is recommended.
Product Application
Company overview:
With rich experience and the date of art equipment in the field of exhaust system,our monthly production capability up to 80000 pcs. The products we manufactured are popular with their high quality in the overseas markets, such as North America, Africa and Southeast Asia. We can guarantee high quality and reliable quick delivery shipment for you.
Other car accessories like exhaust muffler, exhaust bend pipe, corrugated flexible pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle joint clamp and other exhaust accessories.
Export countries : USA, Canada, UK, Germany, Sweden, Holland, France, Switzerland, Spain, Russia, South America, Middle-East and so on.
