Product Details:
|
| Product Name: | Lap-Joint Exhaust Band Clamp Exhaust Repair Preformed 304 Stainless Steel | Standard Or Not: | Standard |
|---|---|---|---|
| Material: | Stainless Steel 304 | Function: | Connecting Pipe , Tube |
| Application: | Exhaust , Muffler, Pipeline | Usage: | Repair , Aftermarket Service |
| Size: | 2', 2.25’ , 2.5', 2.75’ , 3', 3.5' , 4.0’ , 5.0’, 6.0’etc | Structure: | Clamp Band |
| High Light: | 2.25’ Exhaust Repair Band Clamp,57.15mm Exhaust Repair Band Clamp,57.15mm stainless exhaust band clamps |
||

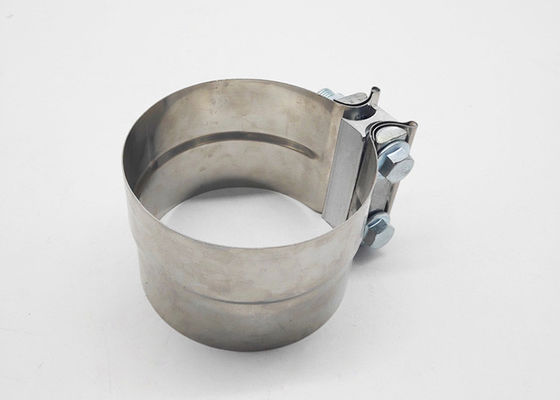

Lap-Joint Exhaust Band Clamp Exhaust Repair Preformed 304 Stainless Steel

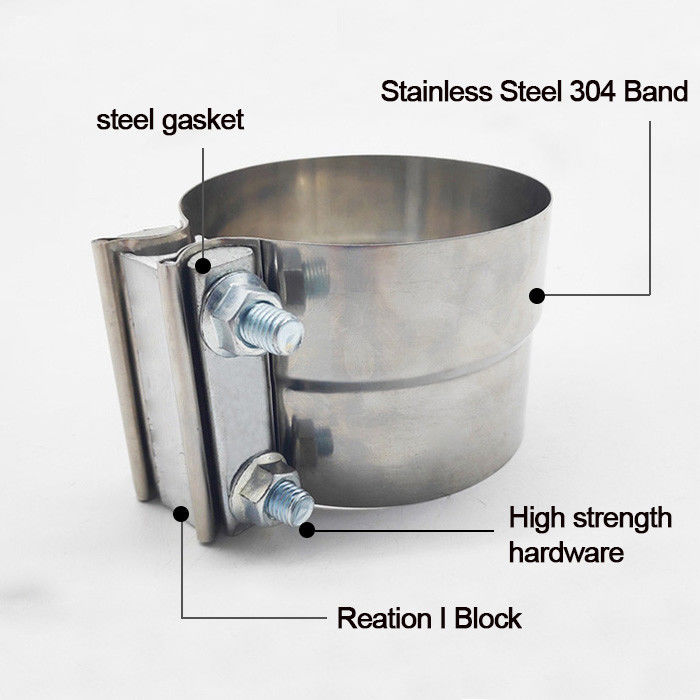

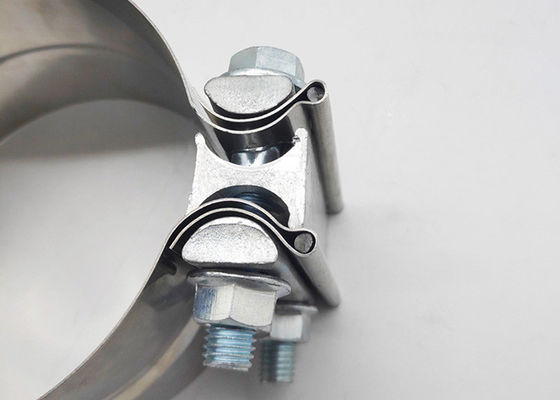

Yunpeng designed Lap joint band exhaust clamp to connect your exhuast system with 360° sealing. Compared with regular exhaust clamps, which will distort the tube easily, the band clamp provides a a very simple, effective way to install or disassemble your exhaust components but without damage them. With an I shape reaction block, which has arc curved face, together with a bolt, the clamp can create a complete "Inner circle Seal", helping avoid any leak of exhaust gas or noise.
The installation is very simple, customer only need to put one of the nut bar on one side and insert the bolts, put another nut bar on, then screw the nuts, and connect two pipes of unequal outside diameters.
Application of Yunpeng Exhaust Band Clamp:
The band exhaust clamp can be used in wide application, like pipes, exhaust tips, tailpipe, catalytic converters, muffler repair projects, catback systems, racing exhaust, show cars, exhaust manifold, exhaust resonator, exhaust flex pipe and so on.
Advantages of the Exhaust Band Clamp :
1. The clamp is constructed stainless steel 304, which has gone through the 100 hours salt spray, so has great anti corrosion performance.
2. Innovated Reation block supplies better protection without distort the pipe ends or exhaust components.
3. High strength fasteners provide the best durability and safety.
Standard Specification:
There're full sizes for Band Exhaust Clamp , pls check and select carefully, if any questions, contact us for suggestion.
|
No. |
Spec.(inch) |
Small end ID(mm) |
Big end ID(mm) |
|
RMBC0056 |
2” |
50.8 |
55.8 |
|
RMBC0057 |
2.1/4” |
57.15 |
62.15 |
|
RMBC0058 |
2.5” |
63.5 |
68.5 |
|
RMBC0059 |
2.3/4” |
69.85 |
74.85 |
|
RMBC0060 |
3” |
76.2 |
81.2 |
|
RMBC0061 |
3.1/2” |
88.9 |
93.9 |
|
RMBC0062 |
4” |
101.6 |
106.6 |
|
RMBC0063 |
4.1/2” |
114.3 |
119.3 |
|
RMBC0064 |
5” |
127 |
132 |
|
RMBC0065 |
6” |
152.4 |
157.4 |
Another butt joint band exhaust clamp for equal pipe OD is available too.
FAQ:
1. How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
2. What kind of auto parts we provide?
We have exhaust muffler, exhaust pipe, corrugated flexible pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle joint clamp and other exhaust accessories for your choose.
3. How about the warranty ?
We have 1 year warranty and lifelong maintenance
4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
We produce many kinds of clamps, standard or as customer design, some other exhaust clamp for your choice. If you had OEM clamp inquiry, don't hesitate to discuss with us.
