Automotive SS304 3 Inch Lap Joint Exhaust Band Clamp

Automotive SS304 3 Inch Lap Joint Exhaust Band Clamp

3 Inch lap joint exhaust band clamp

SS304 exhaust repair band clamp

SS304 3 inch lap joint band exhaust clamp

Place of Origin:

China

CONTACT US
Request A Quote
Product Details
Material:
Stainless Steel, Stainless Steel 304 , Aluminium
Function:
Connect Vehicle Exhaust Pipe
Item Name:
Exhaust Pipe Tube Lap / Butt Joint Band Clamp For Automotive
Standard Or Not:
Standard
Application:
Car Exhaust Muffler Pipe, Pipe Clamp
Usage:
Repair
Size:
2', 2.25’ , 2.5', 2.75’ , 3', 3.5' , 4.0’ , 5.0’, 6.0’etc
Structure:
Band Clamp
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
USD$ 1.5--8.99 /PC
Packaging Details
carton
Delivery Time
5-20 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
100000PCS/MONTH
Product Description

3 Inch Stainless Steel Lap Joint Band Exhaust Clamp for Automotive Motorsports Car Exhaust System



Butt / Lap joint band exhaust clamp provide a very simple, effective way when connecting your exhaust systems with 360°seal . The unique seal and high clamp loads are supplied without distorting your exhaust components, allowing the flexibility to disassemble for service. Regular exhaust clamps will distort the tubes when you try to tighten to make it more seal. With an I shape reaction block, which has arc curved face, together with a bolt, the clamp can create a complete "Inner circle Seal", helping avoid any leak of exhaust gas or noise.

The installation is very simple, customer only need to put one of the nut bar on one side and insert the bolts, put another nut bar on, then screw the nuts, and connect two pipes of unequal outside diameters.



Application:



The band exhaust clamp can be used in wide application, like pipes, exhaust tips, tailpipe, catalytic converters, muffler repair projects, catback systems, racing exhaust, show cars, exhaust manifold, exhaust resonator, exhaust flex pipe and so on.

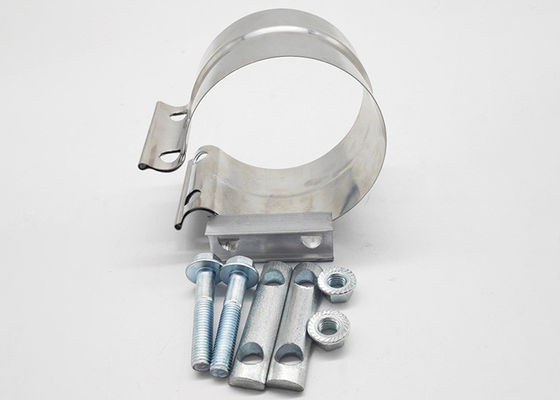

Automotive SS304 3 Inch Lap Joint Exhaust Band Clamp 0



Description of application effect :



Compared with conventional U-clamps and flat band clamps, such high torque clamps offer a much tighter sealing environment by using a reaction block that transfers bolt torque into clamp strength which assures a tight seal.

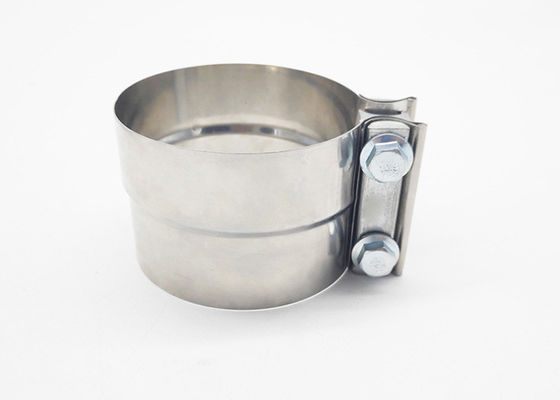

Automotive SS304 3 Inch Lap Joint Exhaust Band Clamp 1



Sizes:



There're full sizes for Band Exhaust Clamp , pls check and select carefully, if any questions, contact us for suggestion.



No.

Spec.(inch)

Small end ID(mm)

Big end ID(mm)

RMBC0056

2”

50.8

55.8

RMBC0057

2.1/4”

57.15

62.15

RMBC0058

2.5”

63.5

68.5

RMBC0059

2.3/4”

69.85

74.85

RMBC0060

3”

76.2

81.2

RMBC0061

3.1/2”

88.9

93.9

RMBC0062

4”

101.6

106.6

RMBC0063

4.1/2”

114.3

119.3

RMBC0064

5”

127

132

RMBC0065

6”

152.4

157.4



Features of Band Exhaust Clamp:

  • The Butt / Lap joint band exhaust clamp is a strap of metal, usually stainless or galvanized steel, which will wrap around the exhaust pipe joints easily. Because of the good design structure, this exhaust clamp helps to minimize the part number and maximize the material usage to reduce the weight .
  • I-Block helps to distributes the clamping force evenly over the entire 360° , which prevent any leaks or material distortion or damaging on the pipe.
  • The band is a pre - formed ring, which brings low cost and cheap unit price.
  • 304 stainless steel or galvanized material for a long life, and preventing clamps from rusting , corrosion resistant and water resistant.
  • High clamp loads
  • Available in a wide range of styles and sizes , customized shape and size are welcome

Pakaging and shipment:



50 pcs or 60 pcs /carton or as requriement

5 days if stock available, large order production leadtime will be 15-30days.



We produce many kinds of clamps, standard or as customer design, some other exhaust clamp for your choice. If you had OEM clamp inquiry, don't hesitate to discuss with us.

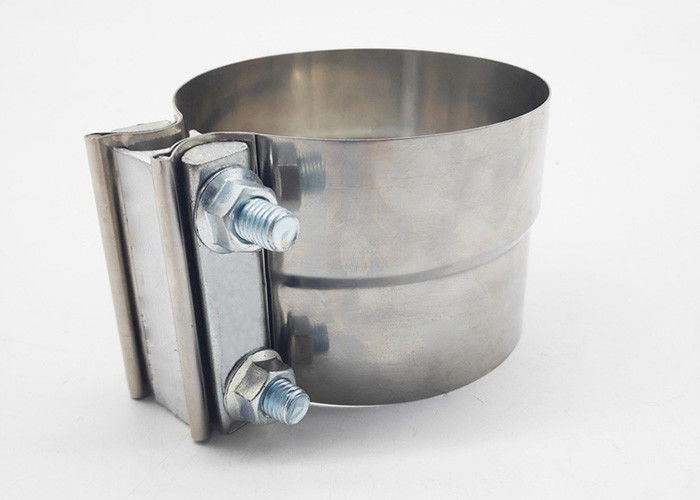

Automotive SS304 3 Inch Lap Joint Exhaust Band Clamp 2

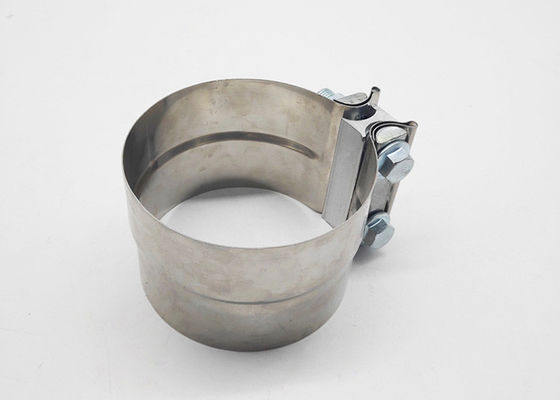

Automotive SS304 3 Inch Lap Joint Exhaust Band Clamp 3
