Product Details:
|
| Product Name: | 3" Stainless Steel Exhaust Clamp With V Band For Automotive | Usage: | Connecting Vehicle Tube |
|---|---|---|---|
| Structure: | V Band Clamp | Standard Or Nonstandard: | Standard |
| Type: | Auto Accessories | Size: | 1.5~6 Inches |
| Other Name: | Stainless Steel Exhaust V Band Clamp | Latch: | Quick Or Bolt |
| High Light: | 98.2mm 3 inch Stainless Steel Exhaust Clamps,98.2mm automotive exhaust clamps,98.2mm car exhaust pipe clamps |
||

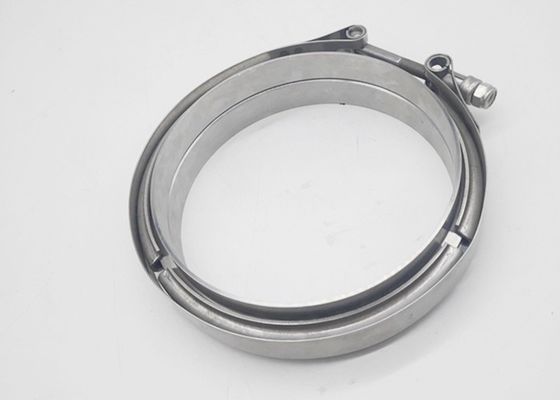

3" Stainless Steel Exhaust Clamp With V Band for Automotive
There’re two common types of auto exhaust V band clamp in Yunpeng, one type is 1 V band clamp + 2 Flanges (Flanges can be M/F style or FF style) ; another type includes 1 V band Clamp (M/F flanges means Male and Female Flanges with grooves , FF flanges means Flat flanges.)
They can be widely used on exhaust system , turbo downpipe , catbacks , diesel engines, intake, intercooler piping and some processing system.
Latch choices:

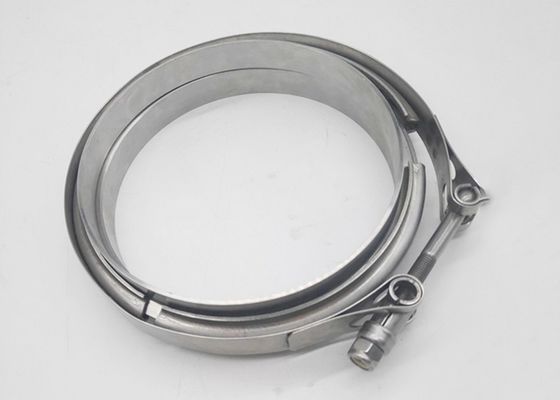

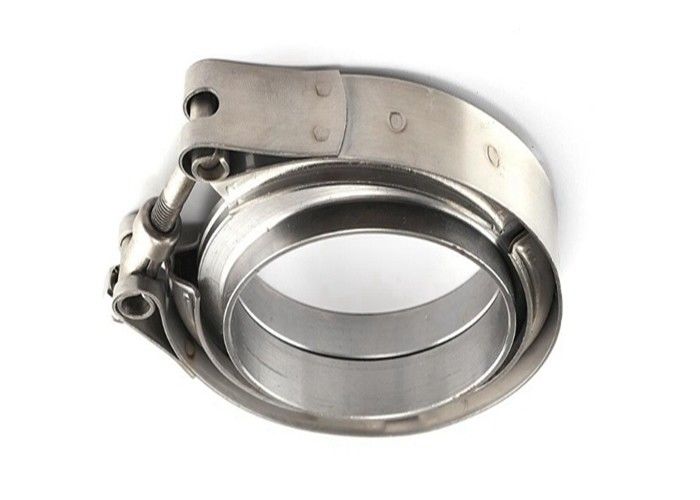

Above picture shows the standard T bolt v band clamp, another quick release latch version is popular too, like below mechanism.
Material Choices:
Usually the V band are stainless steel material, bolt can be galvanised or stainless steel, flange can be mild steel or stainless too.
Some customers try to use the galvanized material for all clamp to reduce the cost, that's acceptable too. Anyway, let's have your idea or requirement.

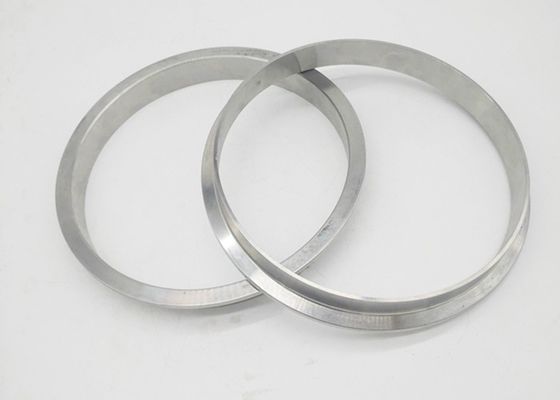

Flanges:
These V-band flanges are machined , designed to slide about 1/8" onto the exhaust pipe before welding , which can keep them centered and ensures a smooth flow of exhaust.
Flanges characteristics:
Beautiful surface
Fit Perfectly
Welded easily
No leaks
Flange Material : Mild Steel or stainless steel
Product Specifications:
|
Item |
Material |
Spec.(inch) |
Clamp ID(mm) |
Flange ID(mm) |
|
V-Band Exhaust Pipe Clamps |
SUS 304 |
1.5” |
60 |
38.9 |
|
1.75” |
66.4 |
45.3 |
||
|
2” |
72.8 |
51.6 |
||
|
2.25” |
79.1 |
57.9 |
||
|
2.36” |
81.6 |
64.3 |
||
|
2.5” |
85.5 |
70.6 |
||
|
2.75” |
91.8 |
77 |
||
|
3” |
98.2 |
83.3 |
||
|
3.25” |
104.5 |
89.7 |
||
|
3.5” |
110.9 |
96.1 |
||
|
4” |
123.5 |
102.4 |
||
|
4.5” |
136.3 |
115.1 |
||
|
5” |
149 |
127.8 |
||
|
6” |
174.4 |
153.2 |
Product Features:
|
|
|
|
|
|
About Yunpeng:
We supply many engine exhaust system products in worldwide range, our products including exhaust muffler, exhaust pipe, corrugated flexible pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle joint clamp and other exhaust accessories.
