Product Details:
|
| Other Name: | Exhaust V Band Grooved Quick Release Clamp | Structure: | V Band |
|---|---|---|---|
| Flange: | Male, Female, Flat | Type: | V Band Clamp |
| Usage: | Pipe Clamp | Latch: | Quick Release Or T Bolt Standard |
| OEM: | Accept | Material: | Stainless Steel, Galvanized |
| Application: | Auto Exhaust Clamp | ||
| High Light: | SS201 Exhaust Pipe Connector Clamp,Galvanized Exhaust Pipe Connector Clamp,SS201 3 inch v band clamp |
||

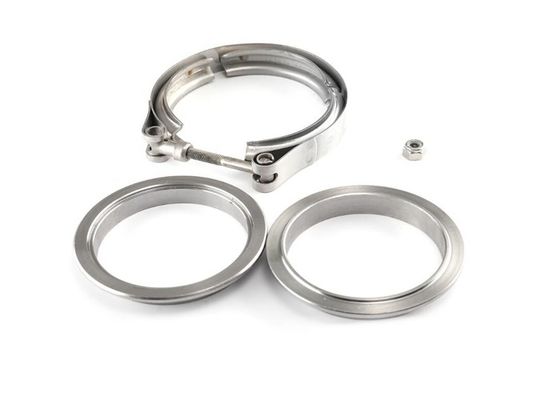

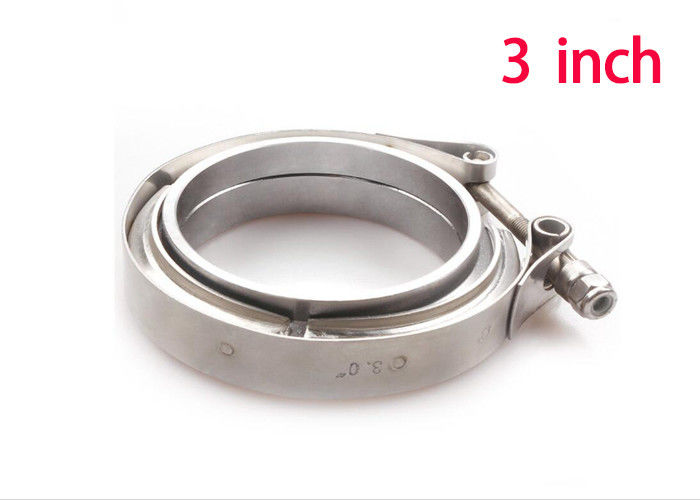

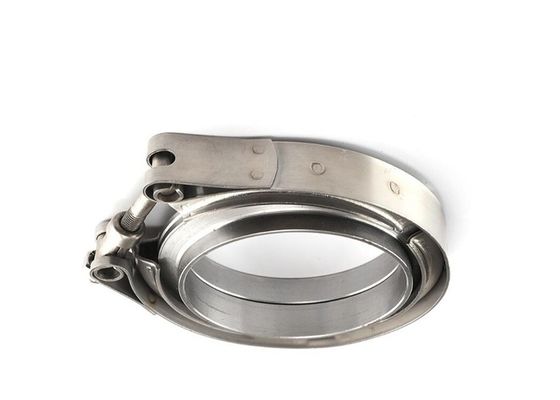

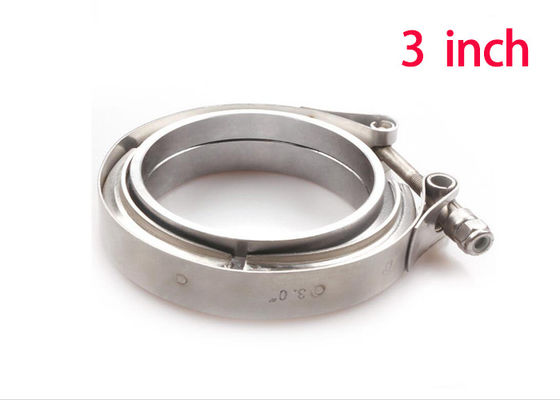

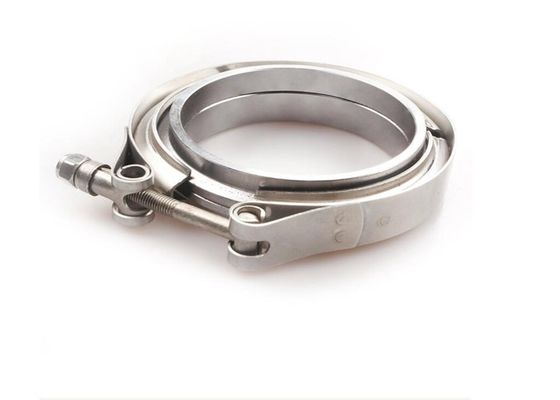

3.0" Auto Exhaust Pipe V-Band Clamp Quick Release Clamp Stainless Steel Material
Table for Product Quick Details:
| Material | Stainless Steel 304 , 201, 316, galvanised |
| Process | Stamped / Forged and CNC machining |
| Surface | Polished, or galvanised hardware |
| Size |
1.5‘, 2.0“,2.75“,3", 3.5" , 4.0" , 5.0" , 6.0", etc. |
| Component | Car accessories / Car components / Exhaust Pipe Clamp |
| Screw | Galvanized , stainless steel M6 , M8 |
| Apply for | Racing exhaust,turbocharger, diesel engines, intercooler piping, intake, Wastegates, Blow-off Valves , etc. |
V Band Clamp Advantages:
Product Details:
Yunpeng V Band Clamps has very Clear screw thread , can match well with various nuts ; Good butt welding, each welding point can bear about 150KGS tension.
►.Clear screw thread & thread galling free.
Types:
Usually , there's two types of such heavy duty V band clamps, construction of quick release locking latch and T bolt standard latch. Other new design is very welcomed by us too.
Product Specifications:
| Item | Material | Size (inch) |
Flange ID(mm) | Bandwidth (mm) |
Screw (mm) |
| V-Band Exhaust Pipe Clamps |
High strength SUS 304 |
2.0' | 51.6 | 19 | M6 |
| 2.25' | 57.9 | ||||
| 2.5' | 64.3 | ||||
| 2.75' | 70.6 | ||||
| 3.0' | 77 | 25 | M8 | ||
| 3.25' | 83.3 | ||||
| 3.5' | 89.7 | ||||
| 4.0' | 102.4 | ||||
| 5.0' | 127.8 |
Packing and Delivery:
We usually put the v band clamps into plastic bags first, then into cartons or as clients' requirements ,
If each product packaged in each box, 0.4-0.5RMB extra charge will be needed to each clamp.
About Yunpeng:
We supply many engine exhaust system products in worldwide range, our products including exhaust muffler, exhaust pipe, corrugated flexible pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle joint clamp and other exhaust accessories.
Export countries : USA, Canada, UK, Germany, Sweden, Holland, France, Switzerland, Spain, Russia, South America, Middle-East and so on.
