Product Details:
|

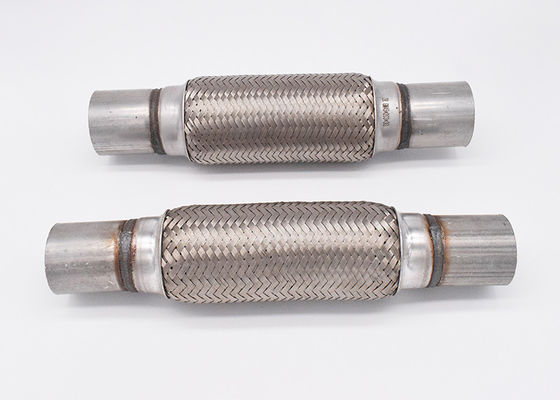

| Item Name: | ID 57mm Overall 252mm Exhaust Pipe Vibration Absorb Truck Connector Stainless Steel Exhaust Bellows Flex Pipe | Inside Diameter: | 51mm 2 Inches |
|---|---|---|---|
| Bellow Materials: | Stainless Steel 201 / 304 | Body Lengh: | 252mm As Customer's Request |
| Structure: | Inner Wire Braided + Outer Wire Braided + Extension Pipe | Cap Materials: | Stainless Steel Or Aluminized |
| Bellow Layers: | Single Layer Or Double Layers | Application: | Auto Exhaust Pipes |
| Feature: | Factory Direct Supp;y | Package: | 25pcs Per Carton |
Brief description of exhaust pipe:
| Discription | Flexible Bellow Pipe | Parts No. | YP-EXF200 |
| Inside diameter Size | 2" / 51mm | Style | flexible pipe with outer braid |
|
Bellow length
|
152mm | Overall length | 252mm |
| Flex pipe Material | Stainless steel 304 201 | Joint Material | aluminized steel or stainless steel |
| Car Make | Universal | Application | Exhaust pipe of various of car, bus, truck, and so on. |
| Packing | Plastic bag and seaworthy box | Package Quantity | 1 pcs |
| Brand | YP | Place of Origin | Tianjin, China |
| Certificate | ISO | Warranty | One Year |
Application of exhaust pipes:
The flexible bellow pipe is an important part of car exhaust system. When you accelerate, The car’s engine moves back and forth on rubber engine mounts. The flexible pipe allows for flexibility in your exhaust system, preventing the engine’s movement and vibrations from damaging and cracking the exhaust pipe.Typical Applications:Passenger Car, Diesel Trucks, Off highway etc.
|
Diameter (I.D.) |
Pipe Length |
Overall Length (OAL) |
Diameter (I.D.) |
Pipe Length |
Overall Length (OAL) |
Extensions |
| 1-1/2" | 4" | 4" | 1-1/2" | 4" | 8" | 2" |
| 1-1/2" | 6" | 6" | 1-1/2" | 6" | 10" | 2" |
| 1-1/2" | 8" | 8" | 1-1/2" | 8 | 12" | 2" |
| 1-1/2" | 10" | 10" | 1-1/2" | 10" | 14” | 2" |
| 1-3/4" | 4" | 4" | 1-3/4" | 4" | 8" | 2" |
| 1-3/4" | 6" | 6" | 1-3/4" | 6" | 10" | 2" |
| 1-3/4" | 8" | 8" | 1-3/4" | 8" | 12" | 2" |
| 1-3/4" | 10" | 10" | 1-3/4" | 10" | 14" | 2" |
| 1-3/4" | 12" | 12" | 1-3/4" | 12" | 16" | 2" |
| 2" | 4" | 4" | 2" | 4" | 8" | 2" |
| 2" | 6" | 6" | 2" | 6" | 10" | 2" |
| 2" | 8" | 8" | 2" | 8" | 12" | 2" |
| 2" | 10" | 10" | 2" | 10" | 14" | 2" |
| 2" | 12" | 12" | 2" | 12" | 16" | 2" |
| 2-1/4" | 4" | 4" | 2-1/4" | 4" | 8" | 2" |
| 2-1/4" | 6" | 6" | 2-1/4" | 6" | 10" | 2" |
| 2-1/4" | 8" | 8" | 2-1/4" | 8" | 12" | 2" |
| 2-1/4" | 10" | 10" | 2-1/4" | 10" | 14" | 2" |
| 2-1/4" | 12" | 12" | 2-1/4" | 12" | 16" | 2" |
| 2-1/2" | 4" | 4" | 2-1/2" | 4" | 8" | 2" |
| 2-1/2" | 6" | 6" | 2-1/2" | 6" | 10" | 2" |
| 2-1/2" | 8" | 8" | 2-1/2" | 8" | 12" | 2" |
| 2-1/2" | 10" | 10" | 2-1/2" | 10" | 14" | 2" |
| 2-1/2" | 12" | 12" | 2-1/2" | 12" | 16" | 2" |
| 3" | 4" | 4" | 3" | 4" | 8" | 2" |
| 3" | 6" | 6" | 3" | 6" | 10" | 2" |
| 3" | 8" | 8" | 3" | 8" | 12" | 2" |
| 3" | 10" | 10" | 3" | 10" | 14" | 2" |
| 3" | 12" | 12" | 3" | 12" | 16" | 2" |
| 4" | 4" | 4" | 4" | 4" | 8" | 2" |
| 4" | 6" | 6" | 4" | 6" | 10" | 2" |
| 4" | 8" | 8" | 4" | 8" | 12" | 2" |
| 4" | 10" | 10" | 4" | 10" | 14" | 2" |
Packing and delivery of exhaust pipes:

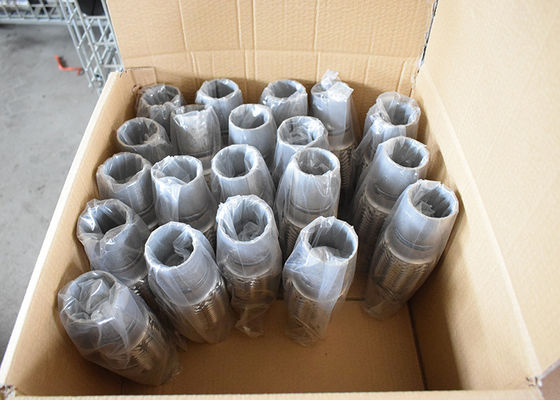

Plastic bag + seaworthy carton
Lead time: 5-8 days if stocks available, otherwise depends on the purchased quantity.
FAQ
1. Q: How about the payment terms?
T/T 100% for order value less than $3000. Otherwise, 30% deposit in advance, the balance against the copy of B/L. It can be also discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 100,00 pcs per month. Normally, 5-8 days if stocks available.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for your quality checking. But the freight fee is in buyer side.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
