Product Details:
|
| Model Number: | 1.5"-6" | Product Name: | Engine Muffler Exhaust Interlocking Pipe Outer Wire Braided And Meshed |
|---|---|---|---|
| Car Model: | Universal | Warranty: | 1 Year |
| Delivery Time: | 5 Days If Stock, 10-20 If No Stock | Type: | Other Accessories |
| Noise Source: | The Noise Of Engine | Application: | Vehicle Exhaust System |
| Length: | 4”-10” | Wall Thickness: | 1.0-1.2mm |
| High Light: | 1.75 inch motorcycle flexible exhaust pipe,SS316 motorcycle flexible exhaust pipe,SS316 1.75 flexible exhaust pipe |
||

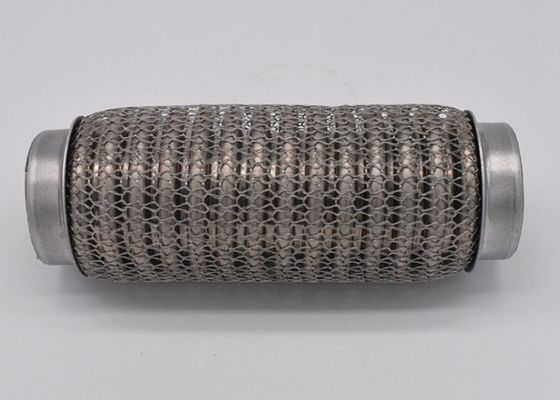

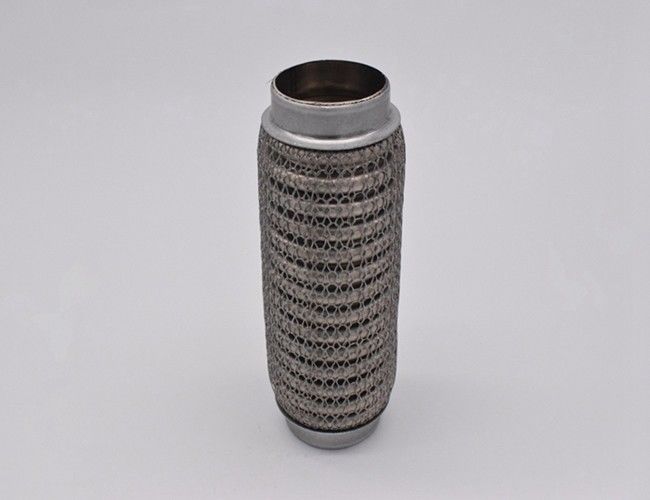

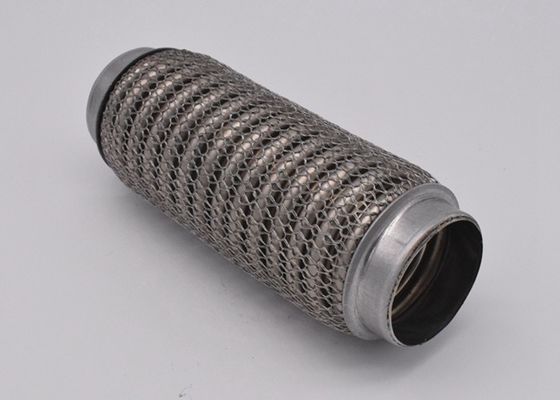

Muffler Exhaust Pipe Outer Wire Braided And Meshed for Motorcycle / Truck / Car Engine
Stainless steel exhaust flexible pipe is a common part for engine exhaust system of car or truck. We supply many types, based on different constructions and different material.
Product Types:
Following common 5 types of such flexible pipe :
1.Exhaust Flexible Pipe I
an outer braid + an inner bellow, such type is for light use.
2. Exhaust Flexible Pipe II
an outer braid + bellows in the middle + an inner braid, such type offers more flexibility, for medium use, has longer life
3. Exhaust Flexible Pipe III
an outer braid + a interlock tube with bellows in the middle, for heavy use. The interlock pipe is used to reduce vibration and noise, and make the pipe most longest life.
4. Exhaust Flexible bellow IV (bellow)
5. Exhaust Flexible Pipe V
Braided Flexible pipe with welded nipples
Product Characteristics
|
Product Name |
Stainless Steel Exhaust Muffler Flexible Pipe |
|
Material |
Stainless Steel 409 / 304 / 316, Aluminum |
|
Quality |
Genuine / OEM |
|
Packing |
Bubble bag, Wooden Case, Neutral packing or negotiated |
|
MOQ |
1 pc |
|
Size / Inner Diameter |
1.5"-6" (1.5” / 1.75” / 2.0” / 2.25” / 2.5” / 3.0” / 3.5” / 4.0” ) |
|
Length |
4” - 10” |
|
Wall Thickness |
1.0mm , 1.2mm |
|
Color |
Silver |
|
Price Term |
EXW , FOB , CIF , C&F |
|
Car Model |
Universal |
|
Application / Usage |
Muffler , Car Exhaust System , Turbos , Waste-gates , Blow-off Valves |
|
Delivery time |
5 days if stock , 10-20 if no stock as per quantity |
|
Advantage |
|
|
Warranty |
6 months |
| Sample | Available |
Specifications:
We can make many specifications, below is the standard size, we can also make as your requirement or drawing, pls feel free to contact us.
Size: Inner diameter from 1.5" to 6"
Length: 4"-10"
Competitive Advantages :
1.High flexibility with long life
2.For high temperature
3.Anti-corrosion
4.Absorb noise and decouple vibration
Company Overview:

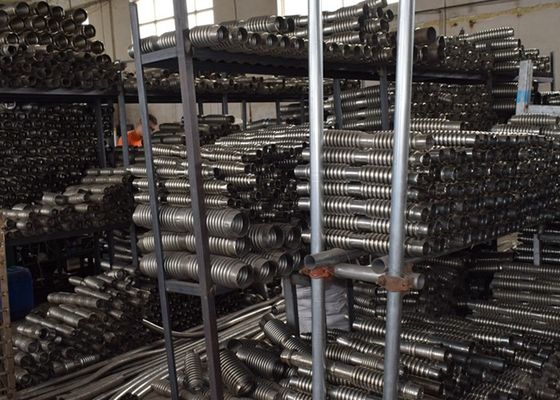

With rich experience and the date of art equipment in the field of exhaust system,our monthly production capability up to 80000 pcs. The products we manufactured are popular with their high quality in the overseas markets, such as North America, Africa and Southeast Asia. We can guarantee high quality and reliable quick delivery shipment for you.
Other car accessories like exhaust muffler, exhaust bend pipe, corrugated flexible pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle joint clamp and other exhaust accessories.
