Place of Origin:
China
Stainless Steel Auto Joint Flex Bellows Interlock Exhaust Muffler Pipe
Product Quick Details:
Stainless steel exhaust flexible pipes is a part of the engine exhaust system of the car. They're constructed with 1 or 2-ply bellows and together with a seamless, convoluted inner core—increasing flexibility in order to reduce vibrations and prevent exhaust leaks that allows your car to be more comfortable and enjoyable in use. Such flex pipes are provided in a variety of lengths, diameters, and many styles.
Types:
Type A : Braided Flexible pipe with inner bellow
Type B : Braided Flexible pipe with braided liner
Type C : Bellows with interlock
Type D: Stainless steel Bellows

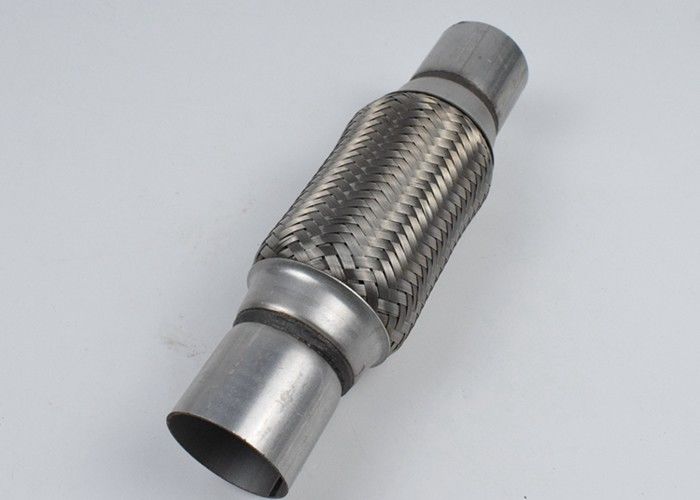

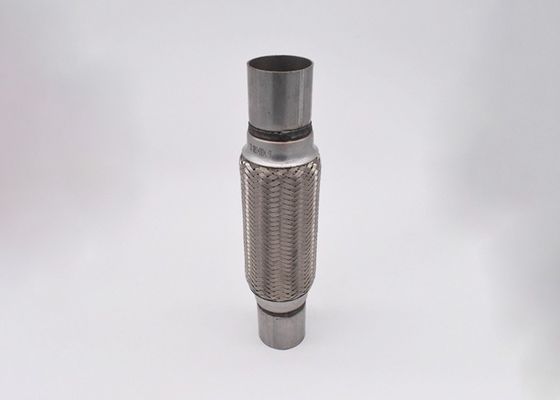

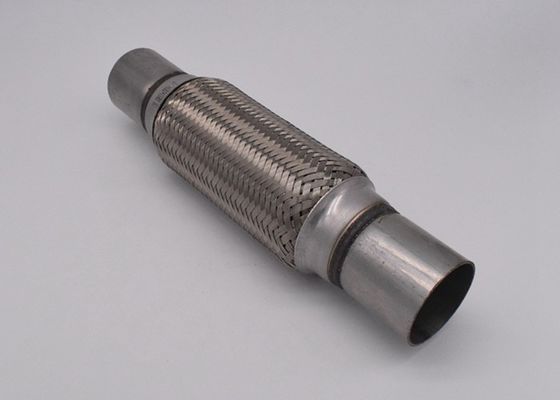

Type E : Braided Flexible pipe with welded nipples
Features:
|
Product Name |
Stainless Steel Exhaust Muffler Flexible Pipe |
|
Material |
Stainless Steel 409 / 304 / 316, Aluminum |
|
Quality |
Genuine / OEM |
|
Packing |
Bubble bag, Wooden Case, Neutral packing or negotiated |
|
MOQ |
1 pc |
|
Size / Inner Diameter |
1.5"-6" (1.5” / 1.75” / 2.0” / 2.25” / 2.5” / 3.0” / 3.5” / 4.0” ) |
|
Length |
4” - 10” |
|
Wall Thickness |
1.0mm , 1.2mm |
|
Color |
Silver |
|
Price Term |
EXW , FOB , CIF , C&F |
|
Car Model |
Universal |
|
Application / Usage |
Muffler , Car Exhaust System , Turbos , Waste-gates , Blow-off Valves |
|
Delivery time |
5 days if stock , 10-20 if no stock as per quantity |
|
Advantage |
|
|
Warranty |
6 months |
| Sample | Available |

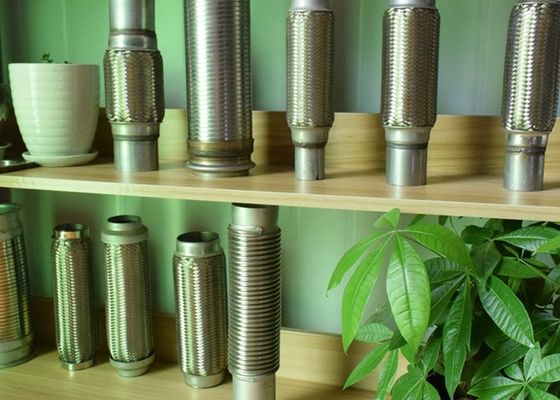

Warehouse and Packing:
Specifications:
| Part No. | innner dia. inch | inner diamater mm | Length inch | Length mm |
| YP13404 | 1-3/4" | 45 | 4" | 102 |
| YP13406 | 1-3/4" | 45 | 6" | 152 |
| YP13407 | 1-3/4" | 45 | 7" | 178 |
| YP13408 | 1-3/4" | 45 | 8" | 203 |
| YP13409 | 1-3/4" | 45 | 9" | 230 |
| YP13410 | 1-3/4" | 45 | 10" | 254 |
| YP13411 | 1-3/4" | 45 | 11" | 280 |
| YP13412 | 1-3/4" | 45 | 12" | 305 |
| YP20004 | 2" | 50.8 | 4" | 102 |
| YP20006 | 2" | 50.8 | 6" | 152 |
| YP20008 | 2" | 50.8 | 8" | 203 |
| YP20009 | 2" | 50.8 | 9" | 230 |
| YP20010 | 2" | 50.8 | 10" | 254 |
| YP20011 | 2" | 50.8 | 11" | 280 |
| YP20012 | 2" | 50.8 | 12" | 305 |
| YP21404 | 2-1/4" | 57.2 | 4" | 102 |
| YP21406 | 2-1/4" | 57.2 | 6" | 152 |
| YP21408 | 2-1/4" | 57.2 | 8" | 203 |
| YP21409 | 2-1/4" | 57.2 | 9" | 230 |
| YP21410 | 2-1/4" | 57.2 | 10" | 254 |
| YP21411 | 2-1/4" | 57.2 | 11" | 280 |
| YP21412 | 2-1/4" | 57.2 | 12" | 305 |
| YP21204 | 2-1/2" / 3" | 63.5 / 76.2 | 4" | 102 |
| YP21206 | 2-1/2" / 3" | 63.5 / 76.2 | 6" | 152 |
| YP21208 | 2-1/2" / 3" | 63.5 / 76.2 | 8" | 203 |
| YP21209 | 2-1/2" / 3" | 63.5 / 76.2 | 9" | 230 |
| YP21210 | 2-1/2" / 3" | 63.5 / 76.2 | 10" | 254 |
| YP21211 | 2-1/2" / 3" | 63.5 / 76.2 | 11" | 280 |
| YP21212 | 2-1/2" / 3" | 63.5 / 76.2 | 12" | 305 |
Company Overview:
With rich experience and the date of art equipment in the field of exhaust system,our monthly production capability up to 80000 pcs. The products we manufactured are popular with their high quality in the overseas markets, such as North America, Africa and Southeast Asia. We can guarantee high quality and reliable quick delivery shipment for you.
Other car accessories like exhaust muffler, exhaust bend pipe, corrugated flexible pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle joint clamp and other exhaust accessories.
If any inquiry, pls contac us any time :
Becky Shao
Email : becky@ypmachinery.com
Whatsapp / Cell / Wechat: +86-15933316077
Send your inquiry directly to us
