Product Details:
|
| Model Number: | 1.5"-6" | Material: | SS 304, SS 409 ,SS201 |
|---|---|---|---|
| Car Make: | Universal | Total Length: | 4”-10” |
| Type: | Exhaust Pipe | Warranty: | 1 Year |
| Delivery: | 5 Days If Stock | Quality: | High |
| MOQ: | 1pc | Wall Thickness: | 1.0-1.2mm |
| High Light: | 3.5 Inch stainless steel flexible exhaust tubing,3.5 Inch flexible muffler tubing,SS201 flexible muffler tubing |
||

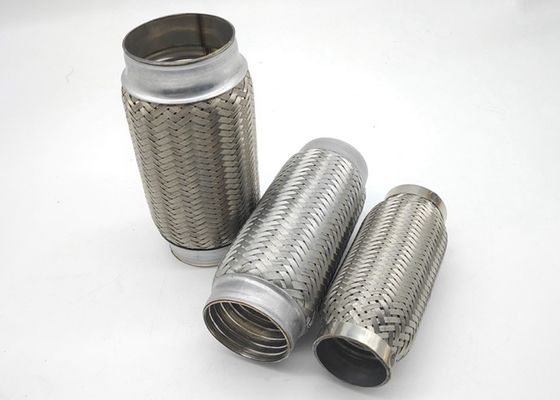

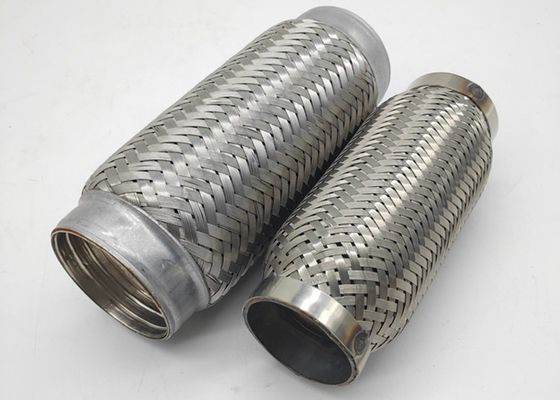

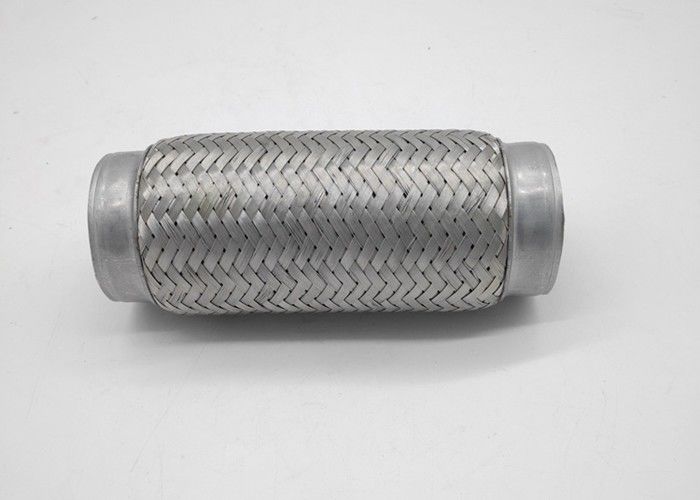

3.5 Inch Automotive Stainless Steel Muffler Bellows Join Flex Connector , Flex Exhaust Bellows
Types:
There are 5 common types of exhaust flexible pipe.
Type A : Braided Flexible pipe with inner bellow
Type B : Braided Flexible pipe with braided liner
Type C : Bellows with interlock
Type D: Stainless steel Bellows
Type E : Braided Flexible pipe with welded nipples
Specifications:
| Part No. | innner dia. inch | inner diamater mm | Length inch | Length mm |
| YP13404 | 1-3/4" | 45 | 4" | 102 |
| YP13406 | 1-3/4" | 45 | 6" | 152 |
| YP13407 | 1-3/4" | 45 | 7" | 178 |
| YP13408 | 1-3/4" | 45 | 8" | 203 |
| YP13409 | 1-3/4" | 45 | 9" | 230 |
| YP13410 | 1-3/4" | 45 | 10" | 254 |
| YP13411 | 1-3/4" | 45 | 11" | 280 |
| YP13412 | 1-3/4" | 45 | 12" | 305 |
| YP20004 | 2" | 50.8 | 4" | 102 |
| YP20006 | 2" | 50.8 | 6" | 152 |
| YP20008 | 2" | 50.8 | 8" | 203 |
| YP20009 | 2" | 50.8 | 9" | 230 |
| YP20010 | 2" | 50.8 | 10" | 254 |
| YP20011 | 2" | 50.8 | 11" | 280 |
| YP20012 | 2" | 50.8 | 12" | 305 |
| YP21404 | 2-1/4" | 57.2 | 4" | 102 |
| YP21406 | 2-1/4" | 57.2 | 6" | 152 |
| YP21408 | 2-1/4" | 57.2 | 8" | 203 |
| YP21409 | 2-1/4" | 57.2 | 9" | 230 |
| YP21410 | 2-1/4" | 57.2 | 10" | 254 |
| YP21411 | 2-1/4" | 57.2 | 11" | 280 |
| YP21412 | 2-1/4" | 57.2 | 12" | 305 |
| YP21204 | 2-1/2" / 3" | 63.5 / 76.2 | 4" | 102 |
| YP21206 | 2-1/2" / 3" | 63.5 / 76.2 | 6" | 152 |
| YP21208 | 2-1/2" / 3" | 63.5 / 76.2 | 8" | 203 |
| YP21209 | 2-1/2" / 3" | 63.5 / 76.2 | 9" | 230 |
| YP21210 | 2-1/2" / 3" | 63.5 / 76.2 | 10" | 254 |
| YP21211 | 2-1/2" / 3" | 63.5 / 76.2 | 11" | 280 |
| YP21212 | 2-1/2" / 3" | 63.5 / 76.2 | 12" | 305 |
Advantages / Characteristics :
1.High flexibility with long life
2.For high temperature
3.Anti-corrosion
4.Absorb noise and decouple vibration
Company Overview:

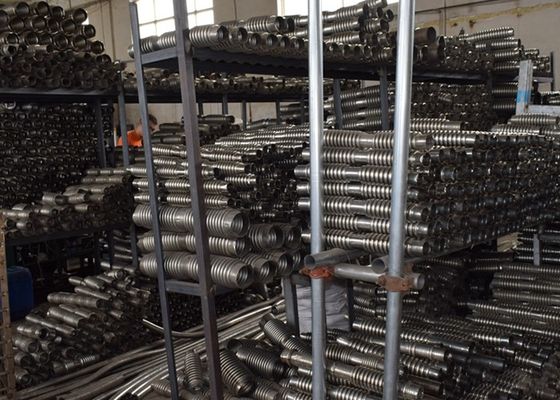

With rich experience and the date of art equipment in the field of exhaust system,our monthly production capability up to 80000 pcs. The products we manufactured are popular with their high quality in the overseas markets, such as North America, Africa and Southeast Asia. We can guarantee high quality and reliable quick delivery shipment for you.
Other car accessories like exhaust muffler, exhaust bend pipe, corrugated flexible pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle joint clamp and other exhaust accessories.
