Product Details:
|
| Materials: | Stainless Steel 201 202 304 | Part Type: | Exhaust Flex Pipes |
|---|---|---|---|
| Product Line: | Exhaust Flex Coupling | Inlet Diameter: | 2 Inch |
| Outlet Diameter: | 2 Inch | Flexible Pipe Overall Length: | 6 Inch |
| Nipple: | 4 Inch | Construction: | Bellow + Outer Braid+ Inner Braid + Nipple |
| Quantity: | Sold Individually | ||
| Highlight: | SS201 Exhaust Flex Coupling,2X6X10 Inch Exhaust Flex Coupling,SS201 flexible exhaust pipe couplings |
||
Product description:

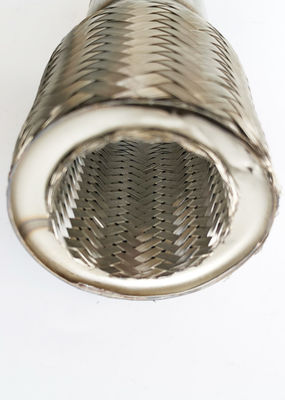

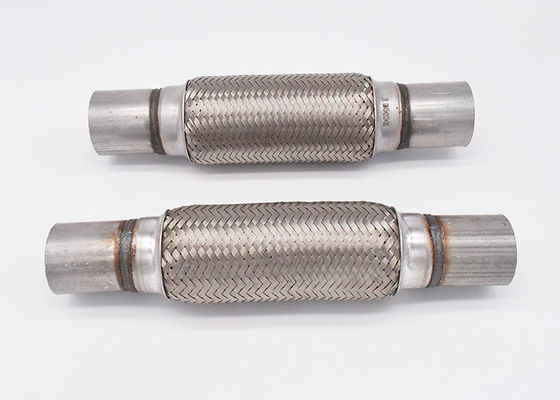

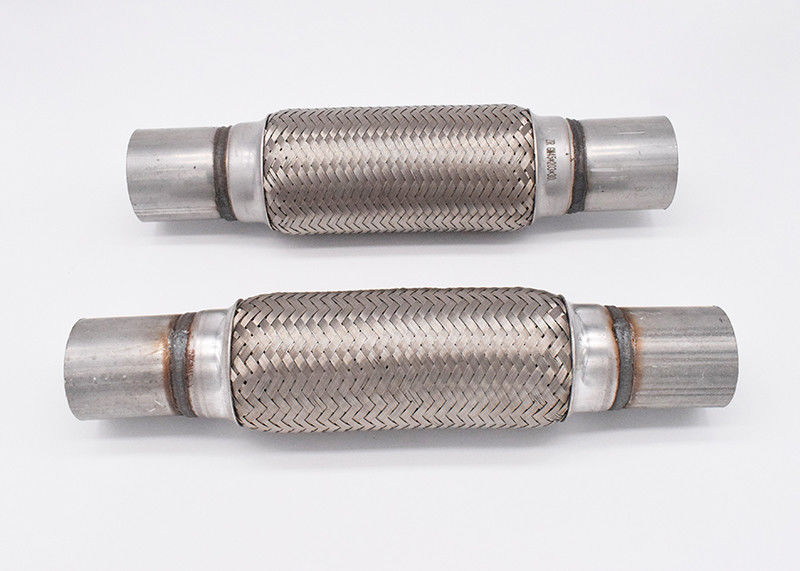

Item name: 2 Inch x 6 Inch x 10 inch Stainless Steel Exhaust Flex Coupling Flex Pipe For Engine Exhaust
Construction: bellow + outer braid + inner braid + nipple
Exhaust flex couplings are stainless steel expansion joints designed for engine exhaust. They're constructed with 2-ply bellows and designed with a seamless, convoluted inner core—increasing flexibility in order to reduce vibrations and prevent exhaust leaks. The flex pipes are offered in a variety of lengths, diameters, and style

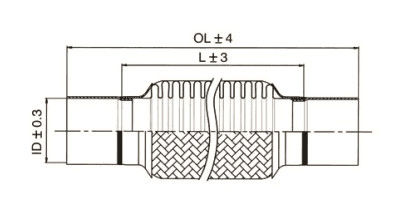

| Inner Diameter (ID) | Flex Length(L) | Overall Length(L) |
| 1-3/4” (45mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 48mm | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2”(50.8mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 54mm | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2-1/4”(57.2mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2-1/2”(63.5mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 3”(76.2mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| Note: Customized size are available | ||
