Product Details:
|
| Aluminum Grade: | 3003 | Temper: | O, H12, H14, H16, H18, H22, H24, H26 |
|---|---|---|---|
| Name: | 3000 Series Aluminum Sheet, Aluminum Alloy Sheet, Anti-rust Aluminum Alloy Sheet | Form: | Aluminum Plain Sheet, 3003 Aluminum Coil, Aluminum 3003-h14 Perforated Sheet |
| Surface Treatment: | Aluminum Bare Sheet, Mill Finish, Mirror Finish, Aluminum Tread Plate | Thickness: | 0.10 Mm-350 Mm |
| Width: | 100 Mm-2600 Mm | Length: | Any Length, According To The Transportation, Usually Less Than 12m. |
| Protection: | Aluminum Sheet With PVC Films Or Paper-interleaved | Alloy: | 3003 |
| Si: | 0.6 | Fe: | 0.7 |
| Cu: | 0.05~0.20 | Mn: | 1.0~ 1.5 |
| Mg: | — | Zn: | 0.1 |
| Al: | Remainder | Alloy: | Aluminum Sheet 3003-H14 |
| Tensile Strength: | Standard Value >195 | Stretch Rate（%）: | Standard Value ≥1 |
| Dimension Control: | Qualified | Surface: | Qualified |
| Property: | Density | Value: | 2.73 G/cm³ |
| Property: | Melting Point | Value: | 655°C (1211°F) |
| Property: | Thermal Conductivity | Value: | 190 W/m·K |
| Property: | Electrical Conductivity | Value: | 40% IACS (International Annealed Copper Standard) |
| Property: | Modulus Of Elasticity | Value: | 69 GPa (10,000 Ksi) |
| Property: | Coefficient Of Thermal Expansion | Value: | 23.6 μm/m·°C (12.5 μin/in·°F) |
| Property: | Hardness (Brinell) | Value: | 45 HB |
| Feature: | Formability | Description: | Excellent Formability, Can Be Easily Shaped, Bent, Or Formed Without Cracking |
| Feature: | Corrosion Resistance | Description: | Good Resistance To Corrosion, Suitable For Humid Or Marine Environments |
| Feature: | Weldability | Description: | Good Weldability, Can Be Easily Joined Using Various Welding Techniques |
| Feature: | Lightweight | Description: | Low Density, Lightweight Material For Weight Reduction Applications |
| Feature: | Versatility | Description: | Widely Used In Automotive, Construction, Packaging, And HVAC Industries |

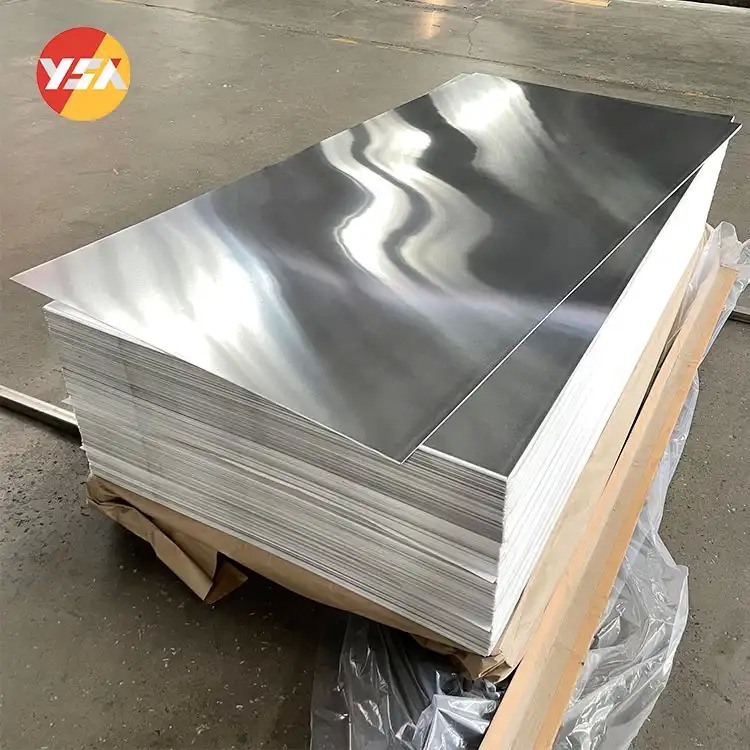

Versatile Aluminum Alloy for Diverse Applications
3003 H14 aluminum sheet is a widely used alloy known for its excellent corrosion resistance, formability, and weldability. It's a popular choice across various industries due to its versatility and cost-effectiveness.
Target Industries and Applications: Roofing and Siding, HVAC Systems, Food and Beverage Packaging, Chemical Equipment, Heat Sinks, General Sheet Metal Fabrication, Cooking Utensils.
| Specification | Value |
|---|---|
| Aluminum Grade | 3003 |
| Temper | O, H12, H14, H16, H18, H22, H24, H26 |
| Name | 3000 Series aluminum sheet, aluminum alloy sheet, Anti-rust aluminum alloy sheet |
| Form | Aluminum Plain sheet, 3003 Aluminum coil, Aluminum 3003-h14 perforated sheet |
| Surface treatment | Aluminum bare sheet, mill finish, mirror finish, aluminum tread plate |
| Thickness | 0.10 mm-350 mm |
| Width | 100 mm-2600 mm |
| Length | Any length, according to the transportation, usually less than 12m. |
| Protection | Aluminum sheet with PVC films or paper-interleaved |
| Alloy | Si | Fe | Cu |
|---|---|---|---|
| 3003 | 0.6 | 0.7 | 0.05~0.20 |
| Mn | Mg | Zn | Al |
| 1.0~ 1.5 | — | 0.1 | remainder |
| Alloy | Tensile strength | Stretch rate（%） | Surface |
|---|---|---|---|
| Aluminum sheet 3003-H14 | Standard Value >195 | Standard Value ≥1 | Qualified |
| Property | Value |
|---|---|
| Density | 2.73 g/cm³ |
| Melting Point | 655°C (1211°F) |
| Thermal Conductivity | 190 W/m·K |
| Electrical Conductivity | 40% IACS (International Annealed Copper Standard) |
| Modulus of Elasticity | 69 GPa (10,000 ksi) |
| Coefficient of Thermal Expansion | 23.6 μm/m·°C (12.5 μin/in·°F) |
| Hardness (Brinell) | 45 HB |
| Feature | Description |
|---|---|
| Formability | Excellent formability, can be easily shaped, bent, or formed without cracking |
| Corrosion Resistance | Good resistance to corrosion, suitable for humid or marine environments |
| Weldability | Good weldability, can be easily joined using various welding techniques |
| Lightweight | Low density, lightweight material for weight reduction applications |
| Versatility | Widely used in automotive, construction, packaging, and HVAC industries |
