Ss304 3 Inch V Band Clamp 2mm Stainless Steel Exhaust Parts With Cnc Flanges

Ss304 3 Inch V Band Clamp 2mm Stainless Steel Exhaust Parts With Cnc Flanges
Ss304 3 Inch V Band Clamp 2mm Stainless Steel Exhaust Parts With Cnc Flanges Ss304 3 Inch V Band Clamp 2mm Stainless Steel Exhaust Parts With Cnc Flanges Ss304 3 Inch V Band Clamp 2mm Stainless Steel Exhaust Parts With Cnc Flanges Ss304 3 Inch V Band Clamp 2mm Stainless Steel Exhaust Parts With Cnc Flanges

Large Image :  Ss304 3 Inch V Band Clamp 2mm Stainless Steel Exhaust Parts With Cnc Flanges

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YPVBC76
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $9.0~$10/PC
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: SS304 Exhaust Parts 3 Inch V Band Clamp 2 Mm Stainless Steel Exhaust Clamp With CNC Flanges Type: V Band Exhaust Clamp
Materials: Stainless Steel 304 Band Width: 3/4"(19mm)
ID: 3" Flange: Male / Female
Surface Finish: Polished Package: Individual Packaging
Application: Auto Exhaust System Feature: Competitive Price And Good Quality
High Light:

ss304 3 inch v band clamp

,

2mm 3 inch v band clamp

,

cnc flanges 3inch band clamp

SS304 Exhaust Parts 3 Inch V Band Clamp 2 Mm Stainless Steel Exhaust Clamp With CNC Flanges



A complete V-band kit is ideal for performance exhaust systems, downpipes, catback exhausts, turbo back exhausts and more. High quality CNC stainless steel flanges provide a leak free exhaust seal with no gasket required. The V-band clamp allows you to quickly connect and disconnect exhaust pipes without having to fumble with nuts or bolts.



Features of V band clamp:



Name Exhaust quick release V-Band Clamp with / without Flange
Material Stainless Steel 304 / 303 /316 /201 , Titanium
Surface Polished
Size available 1.5", 2" , 2.5" , 3” , 3.5" 4", 5" 6"
Screw stainless steel M6 , M8
Application Racing exhaust,turbocharger, diesel engines, intake, intercooler piping,Wastegates, Blow-off Valves , etc.


Advantages of V band clamp:



1. Reduces assembly cost, saves time and ease of accessibility

2.Ideal for applications requiring frequent access for cleaning, inspection or replacement of internal components

3.Smaller envelop dimensions, weight savings and improved appearance

4.Provides additional strength by absorbing circumferential load



V-Band Clamps and Flanges are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, and industrial applications.304 Stainless Quick Release style V-Band Clamp utilize a quick release style latch that allows for quick assembly and disassembly in applications where frequent removal is required. Unlike the "standard" style V-Band Clamps, Quick Release style V-Band Clamps feature a removable and replaceable T-Bolt section, should the user need to do so.

DETAILED SPECIFICATIONS:

Flange ID 3.000"

Clamp Bandwidth
0.750"
Clamp Type V-Band, Quick Release T-Bolt
Material Type 304 Stainless

Provided Fasteners

Metal Lock Nut (QTY: 1)
Non-Locking Nut (QTY: 1)

Fastener Size (Material)

6mm-1.5 (304 Stainless)

V-Band Clamp Properties

V-Band Clamps are designed for challenging, heavy-duty applications where they have proven their high-performance capabilities. They provide high strength, reliability, and corrosion resistance.



V-Band Clamps are engineered and designed for heavy duty trucks, automotive, high performance and racing, generator and marine industries. Their tight design makes them a perfect solution for decreased emissions. Applications include:

  • Pumps
  • Engines
  • Exhaust systems
  • Emissions
  • Diesel particulate filters
  • Muffler assemblies
  • Filters
  • Food and chemical processing equipment
  • Turbochargers
  • Telecommunication equipment and tubing

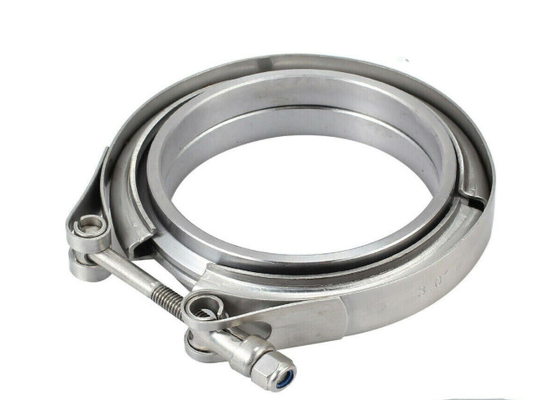

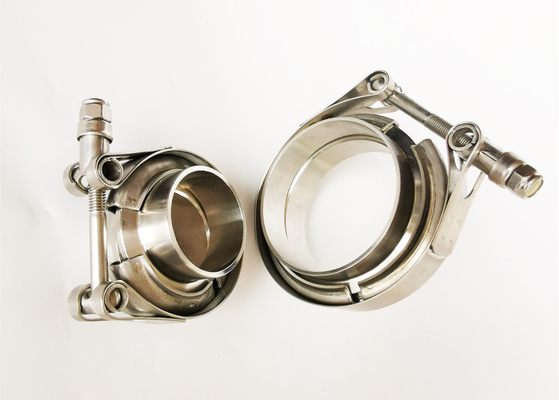

​V-Band clamps with T-Bolt quick release style latches.

Ss304 3 Inch V Band Clamp 2mm Stainless Steel Exhaust Parts With Cnc Flanges 0

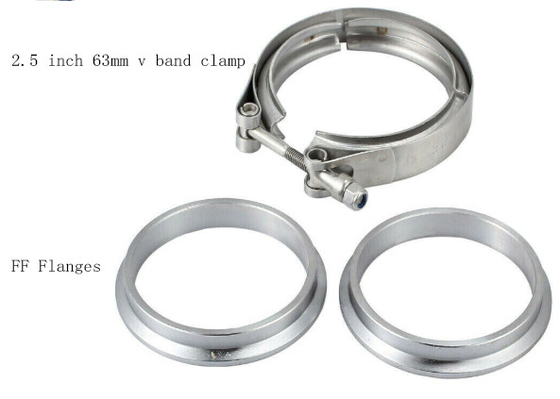

V band clamp with standard T-bolt

Ss304 3 Inch V Band Clamp 2mm Stainless Steel Exhaust Parts With Cnc Flanges 1





Specifications:



Size(Inch) Flange ID(mm) Exhaust pipe OD(mm) Materials
1.5 38.9 38.1 Stainless steel 304
1.75 45.3 44.5
2 51.6 50.8
2.25 57.9 57.1
2.5 64.3 63.5
2.75 70.6 69.8
3 77 76.2
3.25 83.3 82.5
3.5 89.7 88.9
3.75 96.4 95.6
4 102.4 101.6
4.5 115.1 114.3
5 127.8 127
6 153.2 152.4


Advantages of V-band clamps:

When compared to 2 or 3-bolt flanges, the V-band connections are lighter, quicker and easier to take apart. In most cases the V-band clamps are economical when you consider the cost of time in installation and reassembly. V-band connections require a smaller fitment envelope as compared with multi-bolt flanges, and the biggest advantage, the design of the V-band clamp applies uniform force around the flange which maximizes the seal potential of the flanges.

  1. Reduces assembly cost, saves time and ease of accessibility
  2. Ideal for applications requiring frequent access for cleaning, inspection or replacement of internal components
  3. Smaller envelop dimensions, weight savings and improved appearance
  4. Provides additional strength by absorbing circumferential load



Installation:



For a V-band clamp to work optimally, proper installation is critical. Tubes and components of the coupling must be joined and aligned before installing the coupling. The flanges must also be aligned correctly prior to coupling installation for good joint performance.



Tighten the nut to approximately 70% of the required torque (on double-latch assemblies, torque both latches equally). Check to assure the coupling has seated over flanges equally around the periphery. Also, check for correct flange alignment. Radial flange alignment can be checked visually in the gap between adjacent retainer segments.



Ss304 3 Inch V Band Clamp 2mm Stainless Steel Exhaust Parts With Cnc Flanges 2



Packing and delivery:

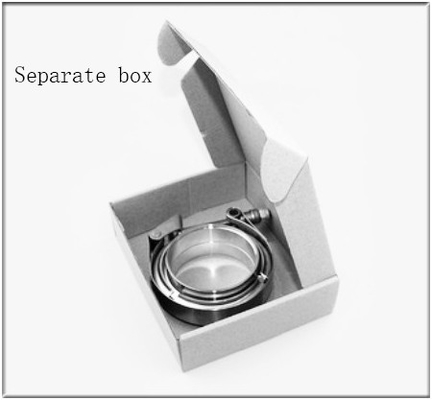

Package method:Separate carton for each, big carton outside or as clients's request

Delivery time:in 3 days if stocks available, new production time depends on ordered quantity

Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)

Shipping terms: FOB, CIF, CNF DDP etc.



Ss304 3 Inch V Band Clamp 2mm Stainless Steel Exhaust Parts With Cnc Flanges 3
