Product Details:
|
| Product: | Chrome 6" Rain Cap Pair For Mitered Cut Exhaust Stacks | Color: | Silver |
|---|---|---|---|
| Dimension: | 2" 2 1/2" 2 3/4" 3" 3/1/4" 3 1/2" 4" 4 1/4" 3/4" 5" 6" Etc | Materials: | Carton Steel |
| Surface Finish: | Chrome Plated / Powder Coating | Usage: | Exhaust Stack Pipe Cap / Weather Cap |
| Block Materials: | Steel / Bakelite | Application: | Trucks, Farm And Off-road Vehicles |
| MOQ: | Sold Individual | Package: | Carton With Pallet |
| High Light: | ISO Stainless Steel Exhaust Parts,sus304 exhaust rain cap,sus304 exhaust Weather Cap |
||

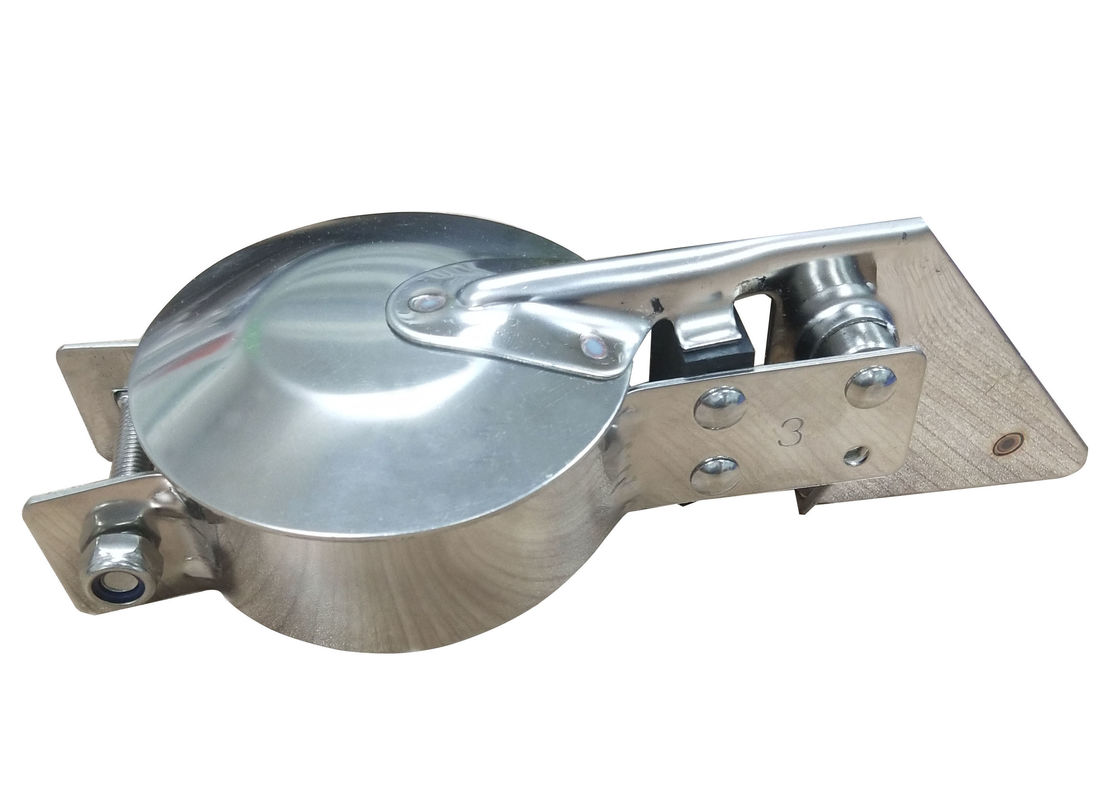

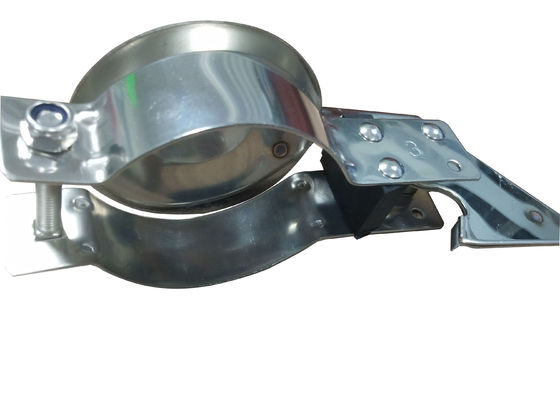

Stainless Steel 304 Mirror Polished Exhaust Rain Cap Weather Cap
These caps can be used to help prevent dirt, dust, debris, snow, and rain from falling into exposed stack pipes. They are designed to open to full vertical position when pressure is inside the stack. They also close instantly when the exhaust pressure stops. Caps can help allow engines to breathe freely while reducing the threat of damage. They are ideal for trucks, farm and off-road vehicles, and equipment with vertical exhaust stack systems.
|
Specification of Goods
|
|
|
Product name
|
Exhaust rain cap / weather cap |
|
Technique
|
Stamping |
|
Body Materials choice
|
Stainless steel, carbon steel |
|
Block materials choice |
Steel, Bakelite
|
|
Surface treatment
|
Zinc plated, chrome plated, polishing, powder painting |
|
Dimensions scope
|
2" 2 1/4" 2 1/2" 2 3/4" 3" 3 1/4" 3 1/2" 3 3/4" 4" 4 1/2" 4 3/4" 5" 5 1/4" 5 3/4" 6" etc |
|
Application
|
Provide max. protection for trucks, farm and off-road vehicles, and equipment with vertical exhaust stack systems.
|
|
Specification sheet
|
|||
| Item Number | Min Exhaust OD | Max Exhuast OD | Color |
| EXRC020 | 2" | 2 3/16" |
Silver Gray Black etc |
| EXRC214 | 2 1/4" | 2 7/16" | |
| EXRC212 | 2 1/2" | 2 11/16" | |
| EXRC234 | 2 3/4" | 2 15/16" | |
| EXRC030 | 3" | 3 3/16" | |
| EXRC314 | 3 1/4" | 3 7/16" | |
| EXRC312 | 3 1/2" | 3 11/16" | |
| EXRC334 | 3 3/4" | 3 15/16" | |
| EXRC040 | 4" | 4 3/16" | |
| EXRC414 | 4 1/4" | 4 7/16" | |
| EXRC412 | 4 1/2" | 4 11/16" | |
| EXRC434 | 4 3/4" | 4 15/16" | |
| EXRC050 | 5" | 5 3/16" | |
| EXRC514 | 5 1/4" | 5 7/16" | |
| EXRC512 | 5 1/2" | 5 11/16" | |
| EXRC534 | 5 3/4" | 5 15/16" | |
| EXRC060 | 6" | 6 3/16" | |
| OEM | Availabe | Available | Available |
If you should need additional Truck Parts and Accessories, please don't hesitate contact Lily zhang who is on line.
Email: market@ypmachinery.com
How do you select the material or finish of the rain cap?
|
|
|
There are several deciding factors on the type of rain cap finish you should select.
|
|
| Price | If you're looking for the most economical type of rain flapper, choose the painted rain caps. The base material is carbon steel and paint is relatively inexpensive. |
| Durability | Will the rain cap be exposed to a corrosive environment such as a chemical plant? Or be see operation on a continuous basis such as a primary gen set?Consider a stainless steel rain cap as its base construction of 304 or 316 stainless steel can withstand a large degree of chemicals and operating conditions. |
| Exhaust temperature | Natural gas engines can have exhaust temperatures exceeding 1200 degrees Fahrenheit. In these applications, consider using a stainless steel rain cap made of 304 or 316. Aluminum rain caps can also be used on higher temperature exhaust systems of 1000 degrees Fahrenheit intermittent. Carbon steel, painted rain caps can operate at exhaust temperature up to 800 degrees Fahrenheit intermittently. The paint on these exhaust flappers are designed for higher operating temperatures. The chrome plating on the chrome rain caps can burn off at higher exhaust temperatures (i.e. above 500 degree Fahrenheit). |
| Aesthetics: | Rain cap going onto a show tractor? Go with a high luster finish such as chrome. A stainless steel rain cap can also be eye pleasing, but doesn't have the high luster finish of a chrome rain cap. |
| Physical properties: | Have an application that requires light weight material? Or need a rain cap that has a short counter weight dimension? Aluminum rain caps are lighter weight than their steel counterparts. And because of the lighter weight, the amount of material required for counter balance the lid is also smaller, leading to a shorter overall foot print. |
