2" 51mm 102mm Flexible Exhaust Pipe Automotive Ss304 With Nipple And Wire Braid

2" 51mm 102mm Flexible Exhaust Pipe Automotive Ss304 With Nipple And Wire Braid
2" 51mm 102mm Flexible Exhaust Pipe Automotive Ss304 With Nipple And Wire Braid 2" 51mm 102mm Flexible Exhaust Pipe Automotive Ss304 With Nipple And Wire Braid 2" 51mm 102mm Flexible Exhaust Pipe Automotive Ss304 With Nipple And Wire Braid 2" 51mm 102mm Flexible Exhaust Pipe Automotive Ss304 With Nipple And Wire Braid

Large Image :  2" 51mm 102mm Flexible Exhaust Pipe Automotive Ss304 With Nipple And Wire Braid

Product Details:
Place of Origin: Hebei
Brand Name: YP
Model Number: YP-EXF51
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2.4
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION MONEYGRAM
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: 2" 51mm Stainless Steel SS304 Automotive Exhaust Flex Pipe With Nipple And Wire Braid Inside Diameter: 51mm / 2"
Materials: SS201, SS304, SS316 Wire Braided Body: 4 Inch / 102mm
Overall Length: 8 Inch / 202mm Structure: Inner Braided + Outer Braided + Nipple / Extension Pipe
Cap / Collar Materials: Aluminized Steel Or SS409 Bellow Layers: Single Layer Or Double Layers
Application: Car / Truck / Freight Liner Exhaust System Feature: Low Cost, No Leak And Suitable Flexibility
Main Market: Lybia, Pakistan, Turkey, Iran, UAE, Southeast Asia Etc
High Light:

2" flexible exhaust pipe automotive

,

51mm flexible exhaust pipe automotive

,

102mm stainless flex exhaust tubing

2" 51mmx102mm Stainless Steel SS304 Automotive Exhaust Flex Pipe With Nipple And Wire Braid


The flexible exhaust pipe is a flexible piece of pipe that allows the exhaust system some flexibility. Flex Pipe are an essential part of any front wheel drive vehicle and on most all wheel drive vehicles. On front wheel cars, since the motor is mounted transversely, when you accelerate the motor rocks and the flex. Pipe protects your exhaust system from breakage and more noise. Without that extra flexibility , the rocking motion would crack the exhaust system and cause a loud leak.



Stainless steel exhaust flexible pipe is a common part for engine exhaust system of car or truck. You can find what you want in our factory. Based on different market, we supply different structures and materials for flex pipe.  SUS 201, SUS 202, SUS 304 SUS316, double layers or single layers. Nipple materials could be aluminized steel or stainless steel. Hot sizes included  1.75” / 2.0” / 2.25” / 2.5” / 3.0” . Flexible pipe resist high temperature, and absorbs muffler pipe thermal expansion, decrease engine noise and vibration, reduce air pollution.


We supply flexible pipe in followed models:


Type A Outer Braided Flexible pipe with inner bellow
Type B Outer Braided Flexible pipe with braided liner and bellows in the middle
Type C Bellows with interlock liner
Type D Typle A B C models  + Nipples
OEM model  Available as request


2" 51mm 102mm Flexible Exhaust Pipe Automotive Ss304 With Nipple And Wire Braid 0

Specification of exhaust flex pipe:



2" 51mm 102mm Flexible Exhaust Pipe Automotive Ss304 With Nipple And Wire Braid 1



Inner Diameter (ID) Flex length(L) Overall length(L)
Inch mm Inch mm Inch mm
1-3/4" 45 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
  48 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
2" 50.8 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
  54 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10 254 14" 356
2-1/4" 57.2 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
2-1/2" 63.5 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
3" 76.2 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356

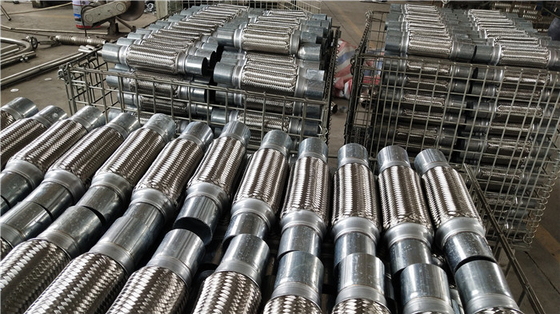

Warehouse of flexible exhaust pipe:


2" 51mm 102mm Flexible Exhaust Pipe Automotive Ss304 With Nipple And Wire Braid 2

2" 51mm 102mm Flexible Exhaust Pipe Automotive Ss304 With Nipple And Wire Braid 3

2" 51mm 102mm Flexible Exhaust Pipe Automotive Ss304 With Nipple And Wire Braid 42" 51mm 102mm Flexible Exhaust Pipe Automotive Ss304 With Nipple And Wire Braid 5


Packaging and Delivery Time of exhaust flexible pipe:

Packaging method: 25pcs per carton, each piece is wrapped with a plastic bag.
Delivery time: in 7 days if stocks available. New production against the order quantity.

2" 51mm 102mm Flexible Exhaust Pipe Automotive Ss304 With Nipple And Wire Braid 6


FAQ



1. Q: How about the payment terms?

T/T 100% for order value less than $3000. Otherwise, 30% deposit in advance, the balance against the copy of B/L. It can be also discussed when we have friendly relationship.

2. How about Delivery time?

We can produce 100,00 pcs per month. Normally, 5-8 days if stocks available.

3. Q:Can I get a sample?

For sure, we are willing to supply samples free for your quality checking. But the freight fee is in buyer side.

4. Q : What's the price?

Reasonable price, competitive price, and acceptable prices, which are all based on good quality.

Contact me on line or by email. We will give you fast and best offer. Thanks.
