Product Details:
|
| Product Name: | SS201 SS409 45mmx152mmx 252mm Stainless Steel Exhaust Flex Pipe Wire Braided Hose Tubing | Inside Diameter: | 45mm / 1.75" |
|---|---|---|---|
| Materials: | SS201, SS304, SS316 | Wire Braided Body: | 6 Inch / 152mm |
| Overall Length: | 10 Inch / 252mm | Structure: | Inner Braided + Outer Braided + Nipple / Extension Pipe |
| Cap / Collar Materials: | Aluminized Steel Or SS409 | Bellow Layers: | Single Layer Or Double Layers |
| Application: | Car / Truck / Freight Liner Exhaust System | Feature: | Low Cost, No Leak And Suitable Flexibility |
| Main Market: | Lybia, Pakistan, Turkey, Iran, UAE, Southeast Asia Etc | ||
| High Light: | 45mm wire braided hose,ss409 wire braided hose,201 stainless steel flex exhaust tubing |
||
The flexible exhaust pipe is a flexible piece of pipe that allows the exhaust system some flexibility. Flex Pipe are an essential part of any front wheel drive vehicle and on most all wheel drive vehicles. On front wheel cars, since the motor is mounted transversely, when you accelerate the motor rocks and the flex. Pipe protects your exhaust system from breakage and more noise. Without that extra flexibility , the rocking motion would crack the exhaust system and cause a loud leak.

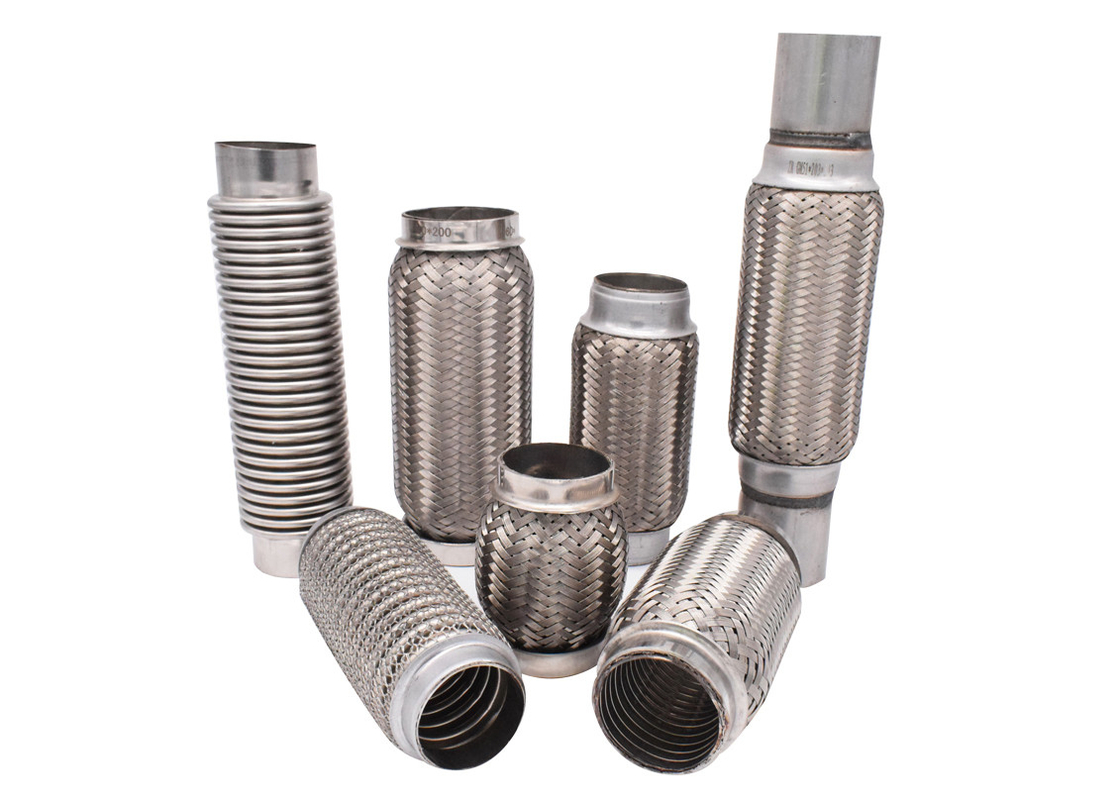

We supply flexible pipe in followed models:
| Type A | Outer Braided Flexible pipe with inner bellow |
| Type B | Outer Braided Flexible pipe with braided liner and bellows in the middle |
| Type C | Bellows with interlock liner |
| Type D | Typle A B C models + Nipples |
| OEM model | Available as request |
Specification of flexible exhaust pipe:
| Inner Diameter (ID) | Flex length(L) | Overall length(L) | |||
| Inch | mm | Inch | mm | Inch | mm |
| 1-3/4" | 45 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 48 | 4" | 102 | 8" | 203 | |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 2" | 50.8 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 54 | 4" | 102 | 8" | 203 | |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10 | 254 | 14" | 356 | ||
| 2-1/4" | 57.2 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 2-1/2" | 63.5 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 3" | 76.2 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 |
||

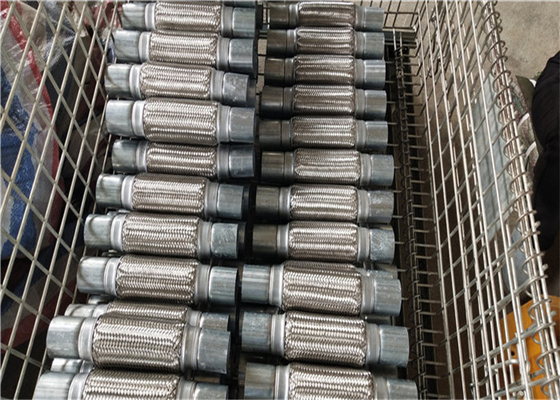

Warehouse of flexible exhaust pipe:
FAQ
1. Q: How about the payment terms?
T/T 100% for order value less than $3000. Otherwise, 30% deposit in advance, the balance against the copy of B/L. It can be also discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 100,00 pcs per month. Normally, 5-8 days if stocks available.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for your quality checking. But the freight fee is in buyer side.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
Contact me on line or by email. We will give you fast and best offer. Thanks.
