Product Details:
|
| Name: | Exhaust Rain Caps | Surface Treatment: | Zinc Plated / Chrome Plated / Powder Coating / Polishing |
|---|---|---|---|
| Material Capabilities: | Carton Steel Or Stainless Steel | Color: | Silver / Black / Gray/ Mirror |
| Block: | Steel Or Black Bakelite | Packing: | Seaworthy Packing , Carton, Pallet |
| Usage: | Exhaust Stack Pipe Cap / Weather Cap | Size: | 1” 1.5” 2.0” 2.5” 3.0” 3.5” 4.0” 4.5” |
| Process: | Metal Stamping | MOQ: | 1 PC |
| High Light: | 139mm exhaust rain cap stainless,galvanized exhaust rain cap stainless,139mm rain cap for exhaust pipe |
||

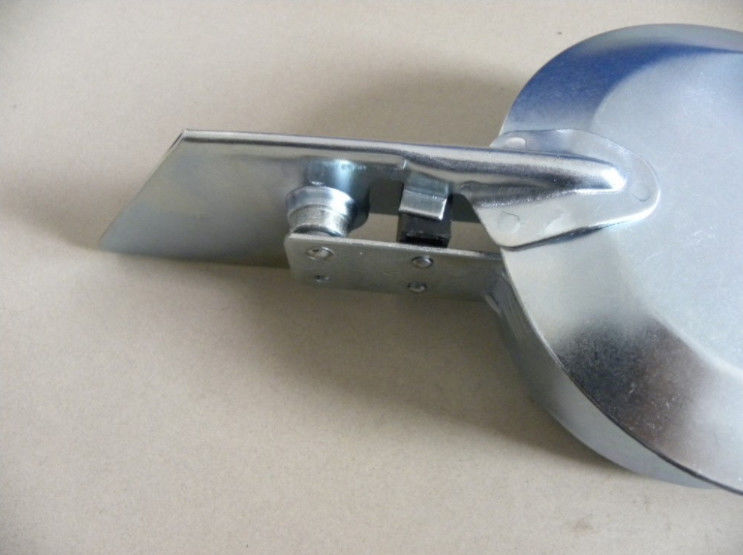

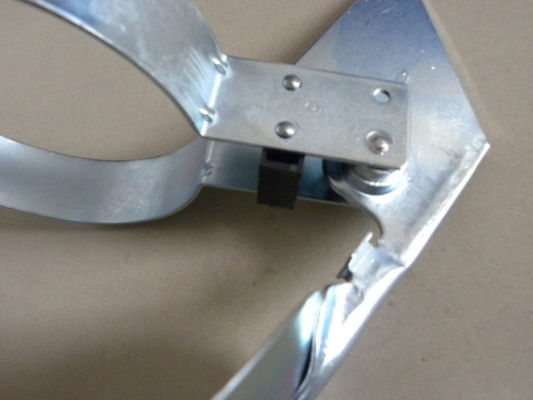

Painted or galvanized exhaust rain cap diam. 139mm for auto exhaust system stack chimney
How to decide Rain Cap size?
The size of the rain cap is determined by the outside diameter of the exhaust stack. Simply apply a tape measure, ruler or caliper to the opening of the exhaust stack and measure the width of the pipe at its furthest points. Make sure to measure the outside of the exhaust pipe, not the inside.
How do you select the material or finish of the rain cap?
There are several deciding factors on the type of rain cap finish you should select.
1.Price: If you're looking for the most economical type of rain flapper, choose the painted rain caps. The base material is carbon steel and paint is relatively inexpensive.
2.Durability: Will the rain cap be exposed to a corrosive environment such as a chemical plant? Or be see operation on a continuous basis such as a primary gen set?Consider a stainless steel rain cap as its base construction of 304 or 316 stainless steel can withstand a large degree of chemicals and operating conditions.
3.Exhaust temperatures: Natural gas engines can have exhaust temperatures exceeding 1200 degrees Fahrenheit. In these applications, consider using a stainless steel rain cap made of 304 or 316. Aluminum rain caps can also be used on higher temperature exhaust systems of 1000 degrees Fahrenheit intermittent. Carbon steel, painted rain caps can operate at exhaust temperature up to 800 degrees Fahrenheit intermittently. The paint on these exhaust flappers are designed for higher operating temperatures. The chrome plating on the chrome rain caps can burn off at higher exhaust temperatures (i.e. above 500 degree Fahrenheit).
4.Aesthetics: Rain cap going onto a show tractor? Go with a high luster finish such as chrome. A stainless steel rain cap can also be eye pleasing, but doesn't have the high luster finish of a chrome rain cap.
Application:
Widely Used in different normal or Refrigerated truck or container, Truck toolbox ,Refrigerated machinery equipmentor cold store room ,Power Generator set canopy ,etc.
Available Dimension:
| CODE | OD (INCH) | COLOR |
| RCYP15 | 1.5" | SILVER |
| RCYP175 | 1.75" | SILVER |
| RCYP200 | 2.00" | SILVER |
| RCYP225 | 2.25" | SILVER |
| RCYP250 | 2.5" | SILVER |
| RCYP275 | 2.75" | SILVER |
| RCYP300 | 3" | SILVER |
| RCYP350 | 3.5" | SILVER |
| RCYP400 | 4" | SILVER |
| RCYP450 | 4.5" | SILVER |
| RCYP500 | 5" | SILVER |
| RCYP550 | 5.5" | SILVER |
| RCYP600 | 6" | SILVER |
Our Advantages:
1. Flexible and Untraceable payment terms.
2. Timely per-sales and after-sale service.
3. 100% custom pass guaranteed.
4. Our products have been exported to USA, Canada, UK, Germany, Sweden, Holland, France, Switzerland, Spain, Russia, South America, Middle-East and many other countries.
5. We offer high quality products at competitive price with prompt delivery.
Auto Parts Packing and Delivery time:
| Packing | 1 pc in a bubble bag, then 50pcs into a carton, or as request |
| Port: | Xingang,Qingdao or other port in China |
| Sample: | Free sample available, freight covered by customer |
| Packing: |
PP bag+Carton+Pallet Sea-Worthy Packing or Air-Worthy Packing |
| Payment Terms: | T/T,L/C at sight,Western Union,Money Gram |
| Delivery: |
5 work days after receipt of payment if stock available 7-20 Days for mass production |
Packing:
Plastic film bag into cartons:
FAQ:
Q1. What material you mainly use ?
We can produce ss304,ss201,ss409 and so on, as clients requests.
Q2. What is the core competition advantage of your factory ?
Advanced equipment,high quality,lowest price, improving after-sales service is our competition advantage.
Q3. Can we make a sample order to check the quality before we plan a large order ?
Sure! Sample order is welcome,sample cost and delivery charges are for your accountant, we would turn back when order confirmed.
Q4. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is the delivery time?
The delivery time depends on your oder quantity and our stock,usually within 25-30 days
Q6. How to send the goods to us?
Quantity orders are shipped by sea,samll whole sales shipped by DHL,TNT,Fedex and so on as our negotiation.
Q7. Do you test all your goods before delivery?
Yes, we have 100% test before delivery
Q8:Can you accept customized making ?
Yeah,of course,we accept the customized making.offering us the drawing or sample.
Yunpeng is a “one-stop” supplier, offering wide coverage of replacement components for popular vehicles market, we supply OEM service to automotive aftermarket parts.
As the leading manufacturer of auto clamps in China, we can ensure an excellent quality, reasonable price and delivery time.
