Product Details:
|
| Product Name: | Stainless Steel 304 V-Band Clamps & Couplings For Flanged Connection | Type: | V Band Exhaust Clamp |
|---|---|---|---|
| Materials: | Stainless Steel 304 | Band Width: | 3/4"(19mm) |
| ID: | 2.5 In. | OD: | 3.08" |
| Flange: | Male / Female | Surface Finish: | Polished |
| Package: | Individual Packaging | Application: | Auto Exhaust System |
| High Light: | 304 stainless steel v band clamps,19mm stainless steel v band clamps,ss304 v band clamps |
||
Stainless steel 304 V-Band Clamps & Couplings for flanged connection
Product description
Our V-Band Clamps are made with high-quality materials and pass extensive testing to ensure your air or liquid connections are held tightly together in a leak-proof clamp.
Our quality control processes ensure you consistently receive a high-quality V-Band Clamp order after order.
V-Band Clamps are designed for challenging, heavy-duty applications where they have proven their high-performance capabilities. They provide high strength, reliability, and corrosion resistance.
We offers custom sizing for V-Band Clamps, manufacturing them in a variety of thicknesses and widths, or with various nut and bolt combinations to fit your exact application.
V-Band Clamps are available in various grades of stainless steel and zinc-plated carbon steel. High performance materials like Inconel can be customized for your application and are available upon request. All materials used are made to AISI and other key global standards.
V-Band Clamps are engineered and designed for heavy duty trucks, automotive, high performance and racing, generator and marine industries. Their tight design makes them a perfect solution for decreased emissions. Applications include:
V-Band clamps can be quickly assembled and disassembled making them an ideal clamp for equipment that requires frequent maintenance. They can be used in any industrial application where a flanged connection is required.
V-Band Clamp Assembly includes one (1) Standard T-Bolt style V-Band Clamp, one (1) "Male" style interlocking V-Band Flange, and one (1) "Female" style interlocking V-Band Flange.
| Flange ID | 2.5" |
| Flange OD | 3.08" |
| Clamp type | Standard T-bolt V band clamp |
| Materials type | Stainless steel 304 |
| Size scope | 1.5" 1.75" 2" 2.25" 2.5" 3" 3.5" 4" 5" 6" |

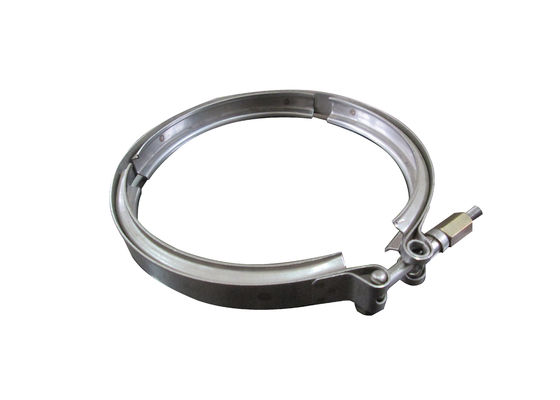

V-Band clamps with T-Bolt quick release style latches.

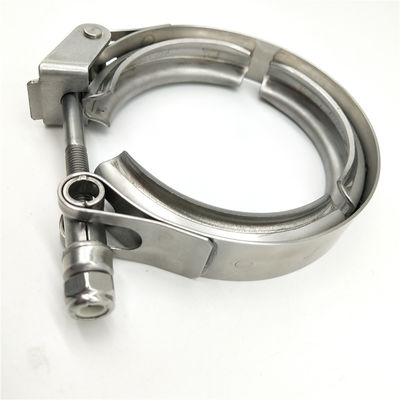

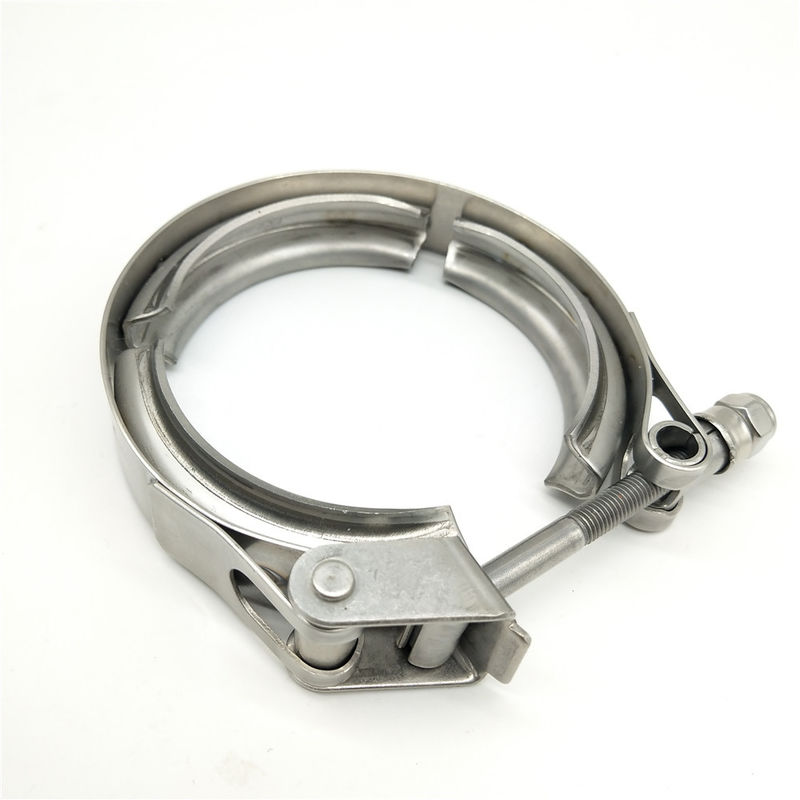

V band clamp with standard T-bolt
Advantages of V-band clamps:
When compared to 2 or 3-bolt flanges, the V-band connections are lighter, quicker and easier to take apart. In most cases the V-band clamps are economical when you consider the cost of time in installation and reassembly. V-band connections require a smaller fitment envelope as compared with multi-bolt flanges, and the biggest advantage, the design of the V-band clamp applies uniform force around the flange which maximizes the seal potential of the flanges.
Installation:
For a V-band clamp to work optimally, proper installation is critical. Tubes and components of the coupling must be joined and aligned before installing the coupling. The flanges must also be aligned correctly prior to coupling installation for good joint performance.
Tighten the nut to approximately 70% of the required torque (on double-latch assemblies, torque both latches equally). Check to assure the coupling has seated over flanges equally around the periphery. Also, check for correct flange alignment. Radial flange alignment can be checked visually in the gap between adjacent retainer segments.
Specifications:
| Size(Inch) | Flange ID(mm) | Exhaust pipe OD(mm) | Materials |
| 1.5 | 38.9 | 38.1 | Stainless steel 304 |
| 1.75 | 45.3 | 44.5 | |
| 2 | 51.6 | 50.8 | |
| 2.25 | 57.9 | 57.1 | |
| 2.5 | 64.3 | 63.5 | |
| 2.75 | 70.6 | 69.8 | |
| 3 | 77 | 76.2 | |
| 3.25 | 83.3 | 82.5 | |
| 3.5 | 89.7 | 88.9 | |
| 3.75 | 96.4 | 95.6 | |
| 4 | 102.4 | 101.6 | |
| 4.5 | 115.1 | 114.3 | |
| 5 | 127.8 | 127 | |
| 6 | 153.2 | 152.4 |
Packing and delivery:
Package method:Separate carton for each, big carton outside or as clients's request
Delivery time:in 3 days if stocks available, new production time depends on ordered quantity
Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)
Shipping terms: FOB, CIF, CNF DDP etc.
