Product Details:
|
| Other Name: | Rain Cap Flap Cover Stack For Vertical Exhaust Or Chimney | Pipe Diameter: | 116mm |
|---|---|---|---|
| Material: | Mild Steel | Thickness: | 2.0mm |
| Process: | Stamping | Other Material Choice: | Stainless , Aluminum |
| Type: | Auto Muffler Parts , Generator Canopy Parts | Packing: | Seaworthy Packing , Carton, Pallet |
| Available Size: | 1"-8" | Customized: | Available |
| High Light: | 116mm Stainless Steel Exhaust Parts,Chimney Stainless Steel Exhaust Parts |
||

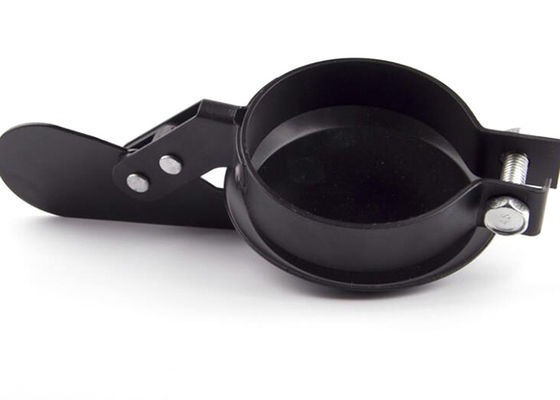

116mm / 4,5" Rain Cap Flap Cover Stack For Vertical Exhaust or Chimney
Product Introduction:
The weather rain cap is used for vertical exhaust stacks, preventing precipitation of foreign objects from entering exhaust. They help to stop moisture and objects from entering exhaust. As we know, the exposed vertical exhaust is very easy to be damaged from foreign objects or bad weather from outside and would reduce the engine performance, with the help of rain cap, the maintenance expense will be reduced much, they save equipment from costly repairs and minimize down time.
|
116mm / 4,5" Rain Cap Flap Cover Stack For Vertical Exhaust or Chimney
|
|
| Diameter | 116mm / 117mm / 4.5" |
| Brand Name | Yunpeng |
| Material | Mild steel, stainless steel 304 |
| Size | 1.0"-8.0" |
| Packing | Carton+pallet |
| Use for | Vertical Exhaust or Chimney |
| Place of Origin | Hebei , China |
| Delivery Time | 5-25 Days |
Specification of Rain Cap
| Product No. | Spec. (mm) | Material | Thickness (mm) |
| YP0050 | Φ50 | Steel , Stainless Steel | 2.0mm , 3.0mm |
| YP0060 | Φ60 | Steel , Stainless Steel | 2.0mm , 3.0mm |
| YP0076 | Φ76 | Steel , Stainless Steel | 2.0mm , 3.0mm |
| YP0080 | Φ80 | Steel , Stainless Steel | 2.0mm , 3.0mm |
| YP0089 | Φ89 | Steel , Stainless Steel | 2.0mm , 3.0mm |
| YP0103 | Φ103 | Steel , Stainless Steel | 2.0mm , 3.0mm |
| YP0114 | Φ114 | Steel , Stainless Steel | 2.0mm , 3.0mm |
| YP0127 | Φ127 | Steel , Stainless Steel | 2.0mm , 3.0mm |
| YP0139 | Φ139 | Steel , Stainless Steel | 2.0mm , 3.0mm |
| YP0160 | Φ160 | Steel , Stainless Steel | 2.0mm , 3.0mm |
| YP0170 | Φ170 | Steel , Stainless Steel | 2.0mm , 3.0mm |
| YP0219 | Φ219 | Steel , Stainless Steel | 2.0mm , 3.0mm |

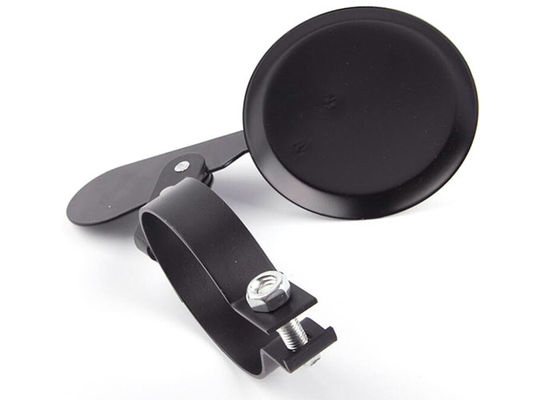

The stainless steel rain cap

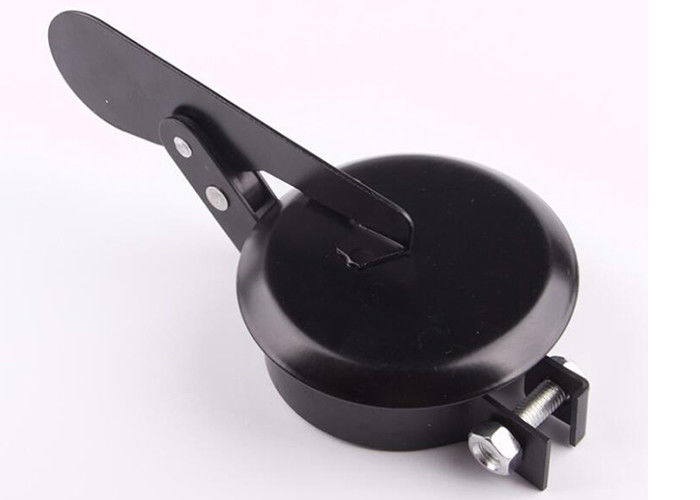

The galvanized rain cap
Applications:
These caps help virtually eliminate intake of dirt, dust, debris, snow, and rain blowing or falling into an exposed stack pipe. Designed to open to full vertical position with the slightest pressure inside the stack and closes instantly when the exhaust pressure stops. Allow the engine to breathe more freely and reduces the threat of damage. Provide max. protection for trucks, farm and off-road vehicles, and equipment with vertical exhaust stack systems.
Packing and Delivery time:
Packing ;1 pc in a bubble bag, then 50pcs into a carton, or as request
Payment Terms:T/T,L/C at sight,Western Union,Money Gram
Delivery: 5 work days after receipt of payment if stock available
7-20 Days for mass production
Choice Guidline:
Yunpeng is a “one-stop” supplier, offering wide coverage of replacement components for popular vehicles market, we supply OEM service to automotive aftermarket parts. If you're looking for the most economical type of rain flapper, choose the painted rain caps. The base material is carbon steel and paint is relatively inexpensive; if natural gas engines can have exhaust temperatures exceeding 1200 degrees Fahrenheit. consider using a stainless steel rain cap made of 304 or 316.If you need a rain cap that has a short counter weight dimension,Aluminum rain caps are the best choice.Take consider of a stainless steel rain cap whose base construction of 304 or 316 stainless steel, if you source a good durability, because stainless steel can withstand a large degree of chemicals and operating conditions.
Customized design and dimensions are welcome at us.
