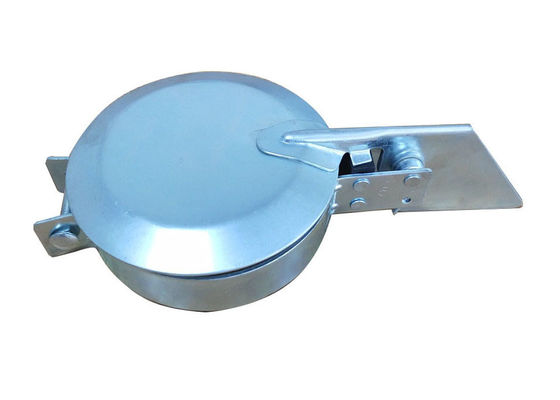

Mild Steel Vertical Galvanizing 2mm Exhaust Rain Cap
Product description: 2mm Mild Steel Vertical Exhaust Stack Weather Cap Galvanized Exhaust Rain Cap Exhaust weather cap / rain cap Help virtually eliminate intake of dirt, dust, debris, snow, and rain blowing or falling into an exposed stack pipe. Designed to open to full vertical position with the slightest pressure inside the stack and closes instantly when the exhaust pressure stops. Allow the engine to breathe more freely and reduces the threat of damage. Provide max.
2mm exhaust rain cap
,2mm exhaust pipe cap
,Galvanizing Exhaust Rain Cap
Product description:
2mm Mild Steel Vertical Exhaust Stack Weather Cap Galvanized Exhaust Rain Cap
Exhaust weather cap / rain cap Help virtually eliminate intake of dirt, dust, debris, snow, and rain blowing or falling into an exposed stack pipe. Designed to open to full vertical position with the slightest pressure inside the stack and closes instantly when the exhaust pressure stops. Allow the engine to breathe more freely and reduces the threat of damage. Provide max. protection for trucks, farm and off-road vehicles, and equipment with vertical exhaust stack systems.
|
Specification of Goods
|
|
|
Product name
|
Exhaust rain cap / weather cap |
|
Technique
|
Stamping |
|
Body Materials choice
|
Stainless steel 304 316, carbon steel, Mild steel, Aluminum |
|
Block materials choice |
Steel, Bakelite
|
|
Surface treatment
|
Zinc plated, chrome plated, polishing, powder painting |
|
Dimensions scope
|
2" 2 1/4" 2 1/2" 2 3/4" 3" 3 1/4" 3 1/2" 3 3/4" 4" 4 1/2" 4 3/4" 5" 5 1/4" 5 3/4" 6" etc |
|
Application
|
Provide max. protection for trucks, farm and off-road vehicles, and equipment with vertical exhaust stack systems.
|
Galvanized exhaust cap
Stainless steel exhaust weather cap
|
Specification sheet
|
|||
| Item Number | Min Exhaust OD | Max Exhuast OD | Color |
| EXRC020 | 2" | 2 3/16" |
Silver Gray Black etc |
| EXRC214 | 2 1/4" | 2 7/16" | |
| EXRC212 | 2 1/2" | 2 11/16" | |
| EXRC234 | 2 3/4" | 2 15/16" | |
| EXRC030 | 3" | 3 3/16" | |
| EXRC314 | 3 1/4" | 3 7/16" | |
| EXRC312 | 3 1/2" | 3 11/16" | |
| EXRC334 | 3 3/4" | 3 15/16" | |
| EXRC040 | 4" | 4 3/16" | |
| EXRC414 | 4 1/4" | 4 7/16" | |
| EXRC412 | 4 1/2" | 4 11/16" | |
| EXRC434 | 4 3/4" | 4 15/16" | |
| EXRC050 | 5" | 5 3/16" | |
| EXRC514 | 5 1/4" | 5 7/16" | |
| EXRC512 | 5 1/2" | 5 11/16" | |
| EXRC534 | 5 3/4" | 5 15/16" | |
| EXRC060 | 6" | 6 3/16" | |
| OEM | Availabe | Available | Available |
If you should need additional Truck Parts and Accessories, please don't hesitate contact Lily zhang who is on line.
Email: market@ypmachinery.com
How do you select the material or finish of the rain cap?
|
|
|
There are several deciding factors on the type of rain cap finish you should select.
|
|
| Price |
If you're looking for the most economical type of rain flapper, choose the painted rain caps. The base material is carbon steel and paint is relatively inexpensive.
|
| Durability |
Will the rain cap be exposed to a corrosive environment such as a chemical plant? Or be see operation on a continuous basis such as a primary gen set?Consider a stainless steel rain cap as its base construction of 304 or 316 stainless steel can withstand a large degree of chemicals and operating conditions.
|
| Exhaust temperature |
Natural gas engines can have exhaust temperatures exceeding 1200 degrees Fahrenheit. In these applications, consider using a stainless steel rain cap made of 304 or 316. Aluminum rain caps can also be used on higher temperature exhaust systems of 1000 degrees Fahrenheit intermittent. Carbon steel, painted rain caps can operate at exhaust temperature up to 800 degrees Fahrenheit intermittently. The paint on these exhaust flappers are designed for higher operating temperatures. The chrome plating on the chrome rain caps can burn off at higher exhaust temperatures (i.e. above 500 degree Fahrenheit).
|
| Aesthetics: |
Rain cap going onto a show tractor? Go with a high luster finish such as chrome. A stainless steel rain cap can also be eye pleasing, but doesn't have the high luster finish of a chrome rain cap.
|
| Physical properties: |
Have an application that requires light weight material? Or need a rain cap that has a short counter weight dimension? Aluminum rain caps are lighter weight than their steel counterparts. And because of the lighter weight, the amount of material required for counter balance the lid is also smaller, leading to a shorter overall foot print.
|
Packaging and delivery:
- Packaging :Carton with pallet or Wooden crate
- In 7 days if dimension and quantitly available in stocks
- Usually 25-30 days for new mass production.
- Delivery method :By sea, By air, by Train, Ay Express. Any way customer prefered.
Contact me:
Lily zhang
Sales deptartment
Email: market@ypmachinery.com
Whatsapp:008613472162077
-
