Galvanised Automatic Blast Gate Sliding Damper For Dust Collection Filtration

Recommedation is good. Reception is professional. Wish to place more orders with flexible exhaust pipe.

—— Rodrigo Favaro

Good company with nice service and high quality for exhaust muffler.

—— John Hermans

Thanks for your good after-sale service. Popular design for the exhaust pipe and muffler system.

—— Aidyn Hadiev

Good support. High quality of exhaust clamps. We'll reorder soon.

—— OAKANTSE Lucas

I'm Online Chat Now

Galvanised Automatic Blast Gate Sliding Damper For Dust Collection Filtration

Galvanised Automatic Blast Gate Sliding Damper For Dust Collection Filtration
Galvanised Automatic Blast Gate Sliding Damper For Dust Collection Filtration

Large Image :  Galvanised Automatic Blast Gate Sliding Damper For Dust Collection Filtration

Product Details:
Place of Origin: Hebei , China
Brand Name: YP
Model Number: YP13404-YP70200
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $11.2-$681.8
Packaging Details: carton , wooden case
Delivery Time: 1-3days if stock available, 15-30days for mass production
Payment Terms: L/C, T/T
Supply Ability: 3000PCS/MONTH
Detailed Product Description
Product Name: Duct Blast Gate Sliding Damper Material: Carbon Steel With Galvanized Surface
Process: Stamping, Welding , Assemble Diameter: 50mm To 650mm
Function: Energy Saving For Duct Collection System Other Material: Stainless Steel 304
Application: Dust Collection, Dust Extraction, Filtration Packing: Plastic Bag + Wooden Case
Connection: Flange Ducting, Spiral Hose MOQ: 1pc
High Light:

galvanised automatic blast gate

,

galvanised automated blast gate

,

automatic blast gates for dust collection systems

Galvanised automatic blast gate sliding damper for dust collecion, filtration



A blast gate is a valve used to isolate separate parts of a vacuum extraction system. These blast gates are usually very simple and typically consist of a sliding or rotating plate which blocks off the vacuum line. We're very professional in design and produce many types blast gates, or sliding damper, both manual and pneumaticly.

They are most commonly encountered in dust extraction systems installed in wood working shops to keep all the vacuum lines to unused machines closed to maximize the vacuum pressure. Blast gates are usually fitted near the machine suction point, generally hand operated or pneumatic operated.

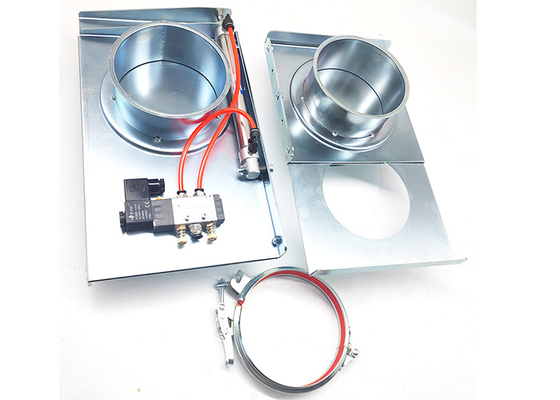

Name Automatic/pneumatic/manual blast gate sliding damper
Diameter 50mm - 650mm
Material Mild steel with zinc plating or stainless steel material
Application Dust extraction system / dust collection system /Air filtration/ Air handling/ Particle conveying
Thickness 1mm steel for connection sleeve, 2mm or 2.5mm for housing and blade
Cylinder No.  1 or 2
Solenoid 24v / 110v /220v
Relative product Duct bends, ductwork clamps, straight pipe, light duty cut-offs, flange, etc.



Features:



1.Sealing available to reduce air loss and friction

2.Easy to operate

2.Strong welding

3.Beautiful appearance and galvanisation surface

4.Optional 24V or 220V mostly



Connetion ways:



Flange ends for flange ducting, straight end for spiral hose connection

Most 3 common models:

Manual blast gate, pneumatic blast gate, light duty sliding damper



Galvanised Automatic Blast Gate Sliding Damper For Dust Collection Filtration 0

Galvanised Automatic Blast Gate Sliding Damper For Dust Collection Filtration 1



Packing:



Into cartons or wooden crates

Galvanised Automatic Blast Gate Sliding Damper For Dust Collection Filtration 2



Our advantage:



1. We have a team of excellent designers and engineers who are well-versed in the styles and trends of high quality products.
2. We have our own factory with competitive prices.
3. 16 years of exporting experience
4. Good pre-sale and after-sale services, if any defective products due to us, all of them will be replaced by free.
5. Flexible payment terms.



Company Overview:



We develop and manufacture modular ducting, circular ductwork in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. Our ducting system adopts the flanged/lip edge quick connection way, allowing rapid installation with no special tools needed. Products including pressed bends ; straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.



Galvanised Automatic Blast Gate Sliding Damper For Dust Collection Filtration 3
