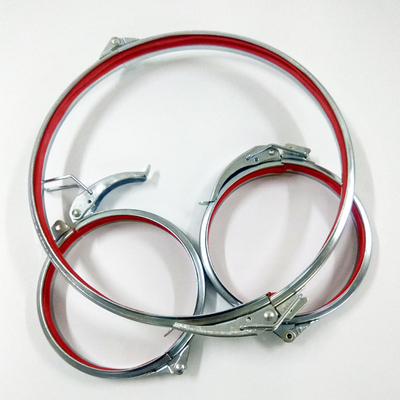

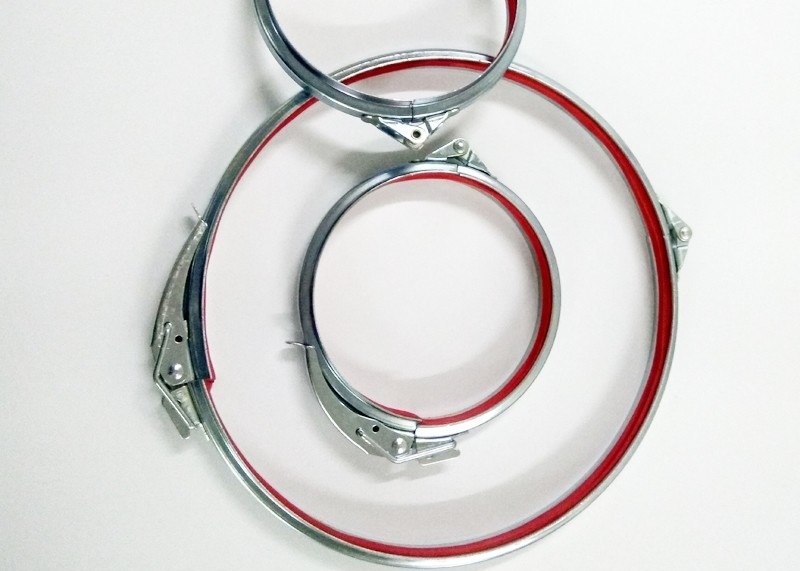

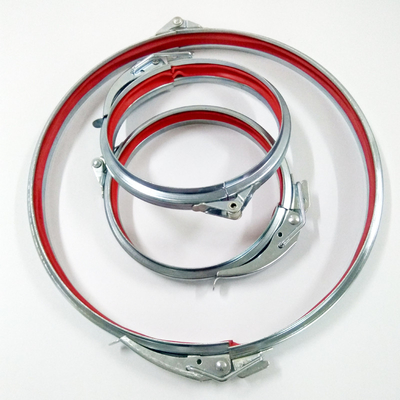

V Band 80-600mm Quick Connector Hose Clamp Carbon Steel
v band quick connector hose clamp
,600mm quick connector hose clamp
,600mm quick release v band clamp
80-600mm Air duct galvanized steel duct pipe system ventilation release quick lock ducting clamps
Product Description:
Ring Material: Carbon steel with superior galvanization or stainless steel 304 Galvanized steel quick lock air duct clamp provides quick and easy connections for our quick ductwork. Quick-Fit Ducting is ideal for dust collection and process ventilation systems, saving time and money on installation, future relocations, and cleanouts. Clamps come standard with seals and bridge pin for locking clamp into closed position.
Pin: Galvanized supplied with galvanized bridge pin. SS supplied with SS bridge pin.
Gasket: Silicone, EPDM, TFE are optional seal materials for applications where temperature requires.
| Material | Carbon Steel |
| Surface | Galvanization |
| Diameter | DN80-DN600 |
Specification:
Our standard available sizes are from 80mm(3") to 600mm (24") , customized design and size requirement are welcome.
|
Galvanized steel quick lock air duct clamp for dust collection system
|
||||
| Φ Diameter mm | Product Code | A mm | H mm | Thickness mm |
| 80 | BMG80 | 28 | 8 | 1.0 |
| 100 | BMG100 | 28 | 8 | 1.0 |
| 120 | BMG120 | 28 | 8 | 1.0 |
| 125 | BMG125 | 28 | 8 | 1.0 |
| 140 | BMG140 | 28 | 8 | 1.0 |
| 150 | BMG150 | 28 | 8 | 1.0 |
| 160 | BMG160 | 28 | 8 | 1.0 |
| 180 | BMG180 | 28 | 8 | 1.0 |
| 200 | BMG200 | 28 | 8 | 1.0 |
| 225 | BMG225 | 28 | 8 | 1.0 |
| 250 | BMG250 | 28 | 8 | 1.0 |
| 275 | BMG275 | 28 | 8 | 1.0 |
| 300 | BMG300 | 28 | 8 | 1.0 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Our another popular similar duct clamp are provided with adjustable bolt lever.
Application:
Quick lock duct clamp could be used for standard modular ducting for dust collection, dust extraction, air filtration and particle transport system.
And any other pipeline which needs the air tight requirement.
Packing of air duct clamp:
Cartons or wooden cases for mixed sizes.
Company:
We develop and manufacture modular ducting, circular ductwork in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. Our ducting system adopts the flanged/lip edge quick connection way, allowing rapid installation with no special tools needed. Products including pressed bends / segmented bends( R=1.5D, R=2D , material involving hot dip galvanised steel sheet DX51D + 275 , mild steel , stainless steel,in thickness 0.75mm, 1.0mm, 1.2mm,2.0mm,3.0mm, diameters from 80mm to 300mm, at 15, 30, 45, 60 and 90 degrees angles ); straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.
Contact Becky for more information if you have requirement on this clamp:
