Product Details:
|
| Name: | Adjustable Clamp | Width: | 28mm |
|---|---|---|---|
| Industry: | Dust Collection, Air Handling, Particle Transportation | Surface: | Galvanised |
| Material: | Carbon Steel (or Stainless Steel 304) | Diameter: | 150mm |
| Lock Mechanism: | Adjustable Bolt | Sealing Gasket: | TPE Or EPDM |
| Feature: | Air Tight , Quick Lock | Thickness: | 1.0mm 1.2mm |
| High Light: | adjustable v band clamp 3.5 inch,ducting v band clamp 3.5 inch,industrial ducting 3.5 v band clamp |
||

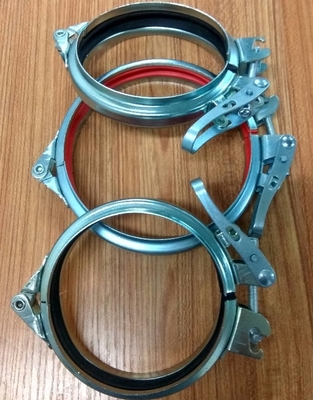

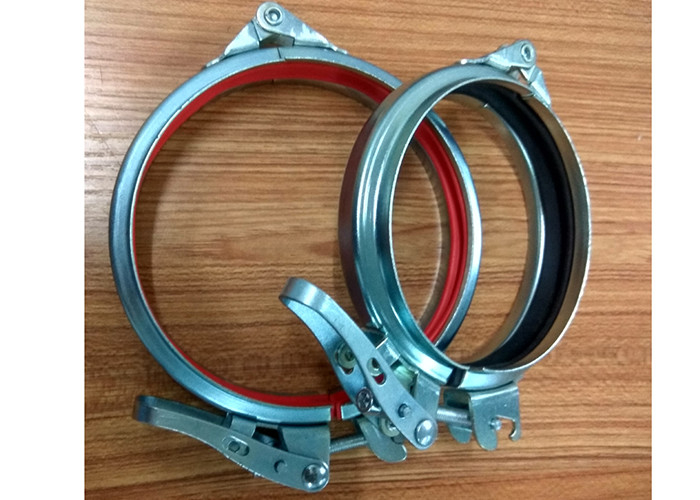

Adjustable galvanized steel lever lock ring quick release clamp for industrial ducting
Product Description:
Round duct clamp hvac ducting flange clamps
This is a new design quick release latch air duct clamp developed by Yunpeng, also called the bolted duct clamp, usually it’s used for connecting 1.0mm/1.2mm modular ducts,like modular bends, straight pie, but also applied to 0.5-0.8mm HVAC system ventilation ducting, particle transport system, animal feed industry pipework system which has lipped pipe ends, another quick release lever adjustable duct clamp is also available.
There is a V groove at the clamping joint of the pipe clamp which makes the operation convenient and the clamping very tight.
If you have different clamp design or idea, please feel free to discuss with us, we have many years’ experience on various types of clamps.
| Material | Mild Steel or stainless steel 304 for food grade industry |
| Surface | Galvanised or natual stainless surface |
| Diameter | 80mm-600mm or 3"-24" |
| Thickness | 1.0mm / 1.2mm |
| Lock set | Adjustable bolts |
Specification:
Our standard available sizes are from 80mm(3") to 600mm (24") , customized design and size requirement are welcome.
|

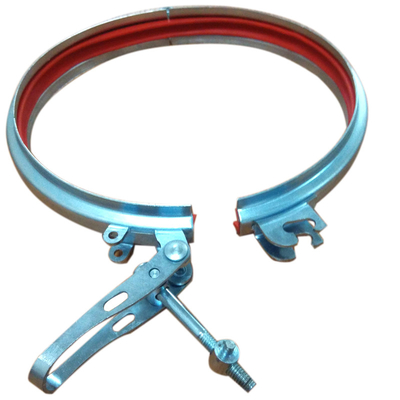

Adjustable Bolt Quick Release Pipe Clamp
|
||||
| Φ Diameter mm | Product Code | A mm | H mm | Thickness mm |
| 80 | LMG80 | 28 | 8 | 1.0 |
| 100 | LMG100 | 28 | 8 | 1.0 |
| 120 | LMG120 | 28 | 8 | 1.0 |
| 125 | LMG125 | 28 | 8 | 1.0 |
| 140 | LMG140 | 28 | 8 | 1.0 |
| 150 | LMG150 | 28 | 8 | 1.0 |
| 160 | LMG160 | 28 | 8 | 1.0 |
| 180 | LMG180 | 28 | 8 | 1.0 |
| 200 | LMG200 | 28 | 8 | 1.0 |
| 225 | LMG225 | 28 | 8 | 1.0 |
| 250 | LMG250 | 28 | 8 | 1.0 |
| 275 | LMG275 | 28 | 8 | 1.0 |
| 300 | LMG300 | 28 | 8 | 1.0 |
| 315 | LMG315 | 28 | 8 | 1.2 |
| 350 | LMG350 | 28 | 8 | 1.2 |
| 400 | LMG400 | 28 | 8 | 1.2 |
| 450 | LMG450 | 28 | 8 | 1.2 |
| 500 | LMG500 | 28 | 8 | 1.2 |
| 550 | LMG550 | 28 | 8 | 1.2 |
| 600 | LMG600 | 28 | 8 | 1.2 |
LMG TYPE:
BMG TYPE:
Application:
Quick lock duct clamp could be used for standard modular ducting with flange or rolled edge for dust collection, dust extraction, air filtration and particle transport system.
And any other pipeline which needs the air tight requirement.
Packing of air duct clamp:
Cartons or wooden cases for mixed sizes.
We accept many OEM clamp production:
Company:
We develop and manufacture modular ducting, circular ductwork in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. Our ducting system adopts the flanged/lip edge quick connection way, allowing rapid installation with no special tools needed. Products including pressed bends / segmented bends( R=1.5D, R=2D , material involving hot dip galvanised steel sheet DX51D + 275 , mild steel , stainless steel,in thickness 0.75mm, 1.0mm, 1.2mm,2.0mm,3.0mm, diameters from 80mm to 300mm, at 15, 30, 45, 60 and 90 degrees angles ); straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.
