Product Details:
|
| Product Name: | Adjustable Pipe Clamp Quick Release Round Duct Clamp SS/ Galvanized Materials 80-600m | Usage: | Duct Clamp / Pipe Clamp / Tube Clamp |
|---|---|---|---|
| Materials: | Stainless Steel 304 Or Galvanized Steel | Band Width: | 25mm |
| ID: | 150mm / 6" | Gasket: | TPE Or Rubber |
| Surface Finish: | Zinc Plated Or Polished | Package: | Carton Or Wooden Case |
| Application: | Fume Extraction / Dust Collection / Air Filtration / Pneumatic Conveying | Market: | USA. Europe, Australia Etc. |
| Diameter Scope: | 80mm-600mm | Relative Product: | Duct Elbow / Sliding Damper / Blast Gate / Hanging Bracket Etc. |
| Unit Price: | $1.5-$6.0 According To Sizes | ||
| High Light: | tpe gasket ss pipe clamp,80mm ss pipe clamp,v band clamp 600mm |
||

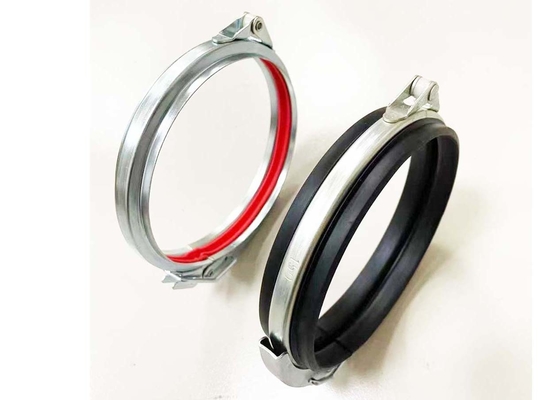

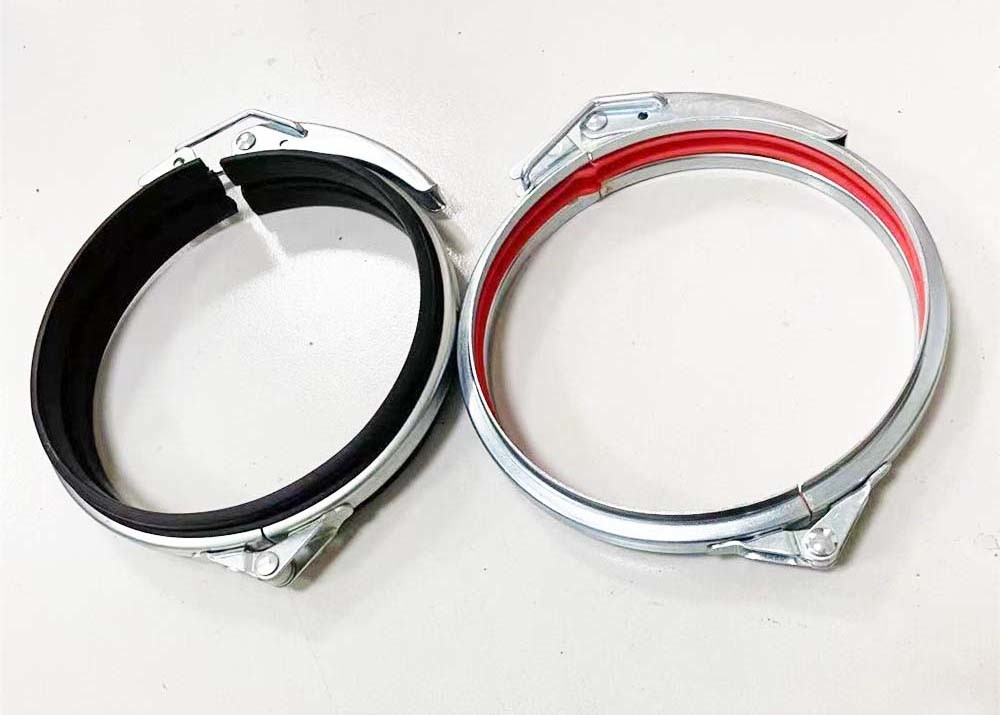

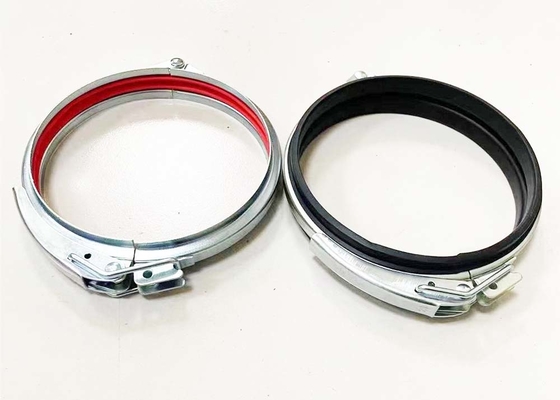

Adjustable Pipe Clamp Quick Release Round Duct Clamp SS/ Galvanized Materials 80-600mm
The use of quick release clamping ring creates a sealed joint and reduces installation time to almost half that of conventional methods of ducting. It provide optimal protection for pipe applications. The lever machenism designs are for applications where joints need to be closed and released frequently and quickly. The red rubber ring plays the role of sealing.
Short description of duct clamps:
| Materials choice | Carbon steel or stailess steel 304 |
| Thickness | 1mm for smaller diameter, 1.2mm for bigger ones. |
| Diameter size | 80mm~600mm |
| Feature | Quick connect and release, durable |
| Application | HVAC systen, dust collection system, particle conveying system etc. |
Specification of clamp-together duct clamp:
| ɸDiameter inch | Product code | A mm | H mm | Thickness mm |
| 3 | BMG80 | 28 | 8 | 1 |
| 4 | BMG100 | 28 | 8 | 1 |
| 5 | BMG125 | 28 | 8 | 1 |
| 6 | BMG150 | 28 | 8 | 1 |
| 8 | BMG200 | 28 | 8 | 1 |
| 10 | BMG250 | 28 | 8 | 1 |
| 12 | BMG300 | 28 | 8 | 1 |
| 14 | BMG350 | 28 | 8 | 1 |
| 16 | BMG400 | 28 | 8 | 1 |
| 18 | BMG450 | 28 | 8 | 1 |
| 20 | BMG500 | 28 | 8 | 1 |
| 22 | BMG550 | 28 | 8 | 1 |
| 24 | BMG600 | 28 | 8 | 1 |
Raltive clamps for modular ducting:
We produce different designs of clamps according to customers' usage, such as lever clamp, heavy duty bolted clamp, adjustable clamp, v band clip etc. We are committed to all kinds of metal pipe connecting clamps. Welcome your OEM inquiry.
Packing and delivery of rapid lock pipe clamp:
Package method:Carton box for small quantity. Wooden case for big quantity
Delivery time:in 3 days if stocks available, new production time depends on ordered quantity
Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)
Shipping terms: FOB, CIF, CNF DDP etc.
About Us:
As a leading manufacturer of metal products, we aim to supply the perfect products to customers. Today we are more specialized on
the pipe fittings, especially duct clamps, pipe clamps, tube clamps and relative products like tube, elbow, tee, damper and so on.
We are pleased to offer you one-stop service from design, manufacturing, technology solution, and market developing. We win good
reputation worldwide with our principle that put customer’s satisfaction on top priority.
