Product Details:
|
| Name: | Lever Mechanism Clamp Ducting Pull Rings | Width: | 28mm |
|---|---|---|---|
| Industry: | Dust Collection, Air Handling, Particle Transportation | Sealing Shape: | V Band Or U Band |
| Material: | Carbon Steel (or Stainless Steel 304) | Diameter: | 80mm-600mm |
| Lock Mechanism: | Quick Release Handle Lock | Sealing Gasket: | TPE Or EPDM |
| Feature: | Air Tight , Quick Lock | Thickness: | 1.0mm 1.2mm |
| High Light: | custom 3.0 v band clamp,galvanised 3.0 v band clamp,seal 3 inch v band clamp |
||

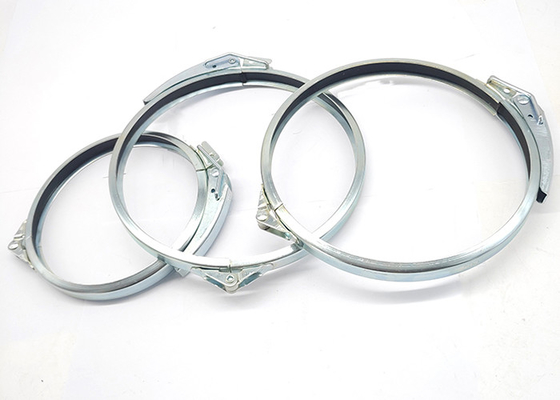

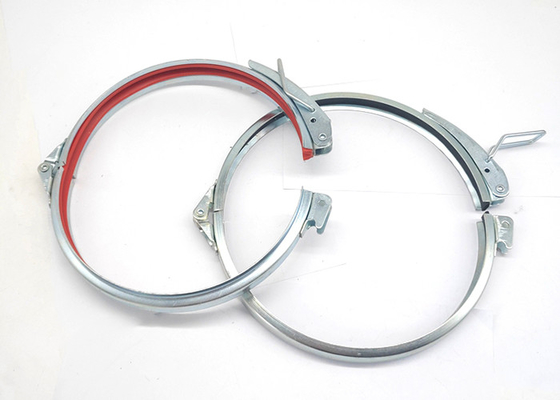

Custom dimension galvanised steel lever mechanism clamp ducting pull rings with seal
Product Description:
Quick release clamping ring for connecting pipes with wall thickness of 1mm or 2mm, it it two-part clamping ring when it comes to fast assembly times and subsequent revision of the pipe sections.
The quick-release fastener and its newly designed fixed joint make it be opened and closed quickly, easily and without any tools.
This clamping ring can be simply retightened in the closed state. It is easy to be installed by fitters.
In addition, this clamping ring is leak-free in the diameters of 80-600mm.
Specification:
Our standard available sizes are from 80mm(3") to 600mm (24") , customized design and size requirement are welcome.
|
Galvanized steel quick lock air duct clamp for dust collection system
|
||||
| Φ Diameter mm | Product Code | A mm | H mm | Thickness mm |
| 80 | BMG80 | 28 | 8 | 1.0 |
| 100 | BMG100 | 28 | 8 | 1.0 |
| 120 | BMG120 | 28 | 8 | 1.0 |
| 125 | BMG125 | 28 | 8 | 1.0 |
| 140 | BMG140 | 28 | 8 | 1.0 |
| 150 | BMG150 | 28 | 8 | 1.0 |
| 160 | BMG160 | 28 | 8 | 1.0 |
| 180 | BMG180 | 28 | 8 | 1.0 |
| 200 | BMG200 | 28 | 8 | 1.0 |
| 225 | BMG225 | 28 | 8 | 1.0 |
| 250 | BMG250 | 28 | 8 | 1.0 |
| 275 | BMG275 | 28 | 8 | 1.0 |
| 300 | BMG300 | 28 | 8 | 1.0 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
BMG TYPE:
LMG TYPE:
Our another popular similar duct clamp are provided with adjustable bolt lever.
Application:
Quick lock duct clamp could be used for standard modular ducting for dust collection, dust extraction, air filtration and particle transport system.
And any other pipeline which needs the air tight requirement.
Packing of air duct clamp:
Cartons or wooden cases for mixed sizes.
We accept many OEM clamp production:
Company:
We develop and manufacture modular ducting, circular ductwork in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. Our ducting system adopts the flanged/lip edge quick connection way, allowing rapid installation with no special tools needed. Products including pressed bends / segmented bends( R=1.5D, R=2D , material involving hot dip galvanised steel sheet DX51D + 275 , mild steel , stainless steel,in thickness 0.75mm, 1.0mm, 1.2mm,2.0mm,3.0mm, diameters from 80mm to 300mm, at 15, 30, 45, 60 and 90 degrees angles ); straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.
