150mm Sealing Gasket V Band Flange Clamp For Dedust Industry

150mm Sealing Gasket V Band Flange Clamp For Dedust Industry

150mm v band clamp

150mm v band flange clamp

dedust industry v band flange clamp

Place of Origin:

China

CONTACT US
Request A Quote
Product Details
Name:
Round Ducting Clamps With Seals
Width:
28mm
Industry:
Dust Collection, Air Handling, Particle Transportation
Surface:
Galvanised
Material:
Carbon Steel (or Stainless Steel 304)
Diameter:
80mm-600mm
Lock Mechanism:
Quick Release Handle Lock
Sealing Gasket:
TPE Or EPDM
Feature:
Air Tight , Quick Lock
Thickness:
1.0mm 1.2mm
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
USD$ 2.01 /PC
Packaging Details
carton , wooden case
Delivery Time
5-7days if stock, 20-25days for mass order
Payment Terms
L/C, T/T, Western Union
Supply Ability
10000PCS/MONTH
Product Description

150mm Round Ducting Clamps Quick Release Pipe Clamp With Sealing Gasket for Dedust Industry



Product Description:



Rapid lock pull rings with hinge and handle, galvanised. The rapid lock pull rings are equipped with an insert specially designed for duct systems made from 1-3 mm steel plate. The rapid lock pull rings are electro-galvanised and used for fast and tight assembly of the duct systems. Rapid lock pull rings with hinge and handle diameter: 80 - 600 mm. Clamp ring is made of Carbon steel with superior galvanization or stainless steel 304 ; Gasket: Silicone, EPDM, TFE are optional seal materials for applications where temperature requires.



Specification:

Our standard available sizes are from 80mm(3")  to 600mm (24") , customized design and size requirement are welcome.



Galvanized steel quick lock air duct clamp for dust collection system



Φ Diameter mm Product Code A mm H mm Thickness mm
80 BMG80 28 8 1.0
100 BMG100 28 8 1.0
120 BMG120 28 8 1.0
125 BMG125 28 8 1.0
140 BMG140 28 8 1.0
150 BMG150 28 8 1.0
160 BMG160 28 8 1.0
180 BMG180 28 8 1.0
200 BMG200 28 8 1.0
225 BMG225 28 8 1.0
250 BMG250 28 8 1.0
275 BMG275 28 8 1.0
300 BMG300 28 8 1.0
315 BMG315 28 8 1.2
350 BMG350 28 8 1.2
400 BMG400 28 8 1.2
450 BMG450 28 8 1.2
500 BMG500 28 8 1.2
550 BMG550 28 8 1.2
600 BMG600 28 8 1.2

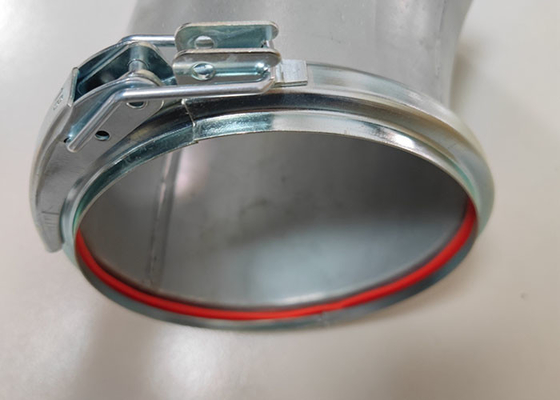

BMG TYPE:

150mm Sealing Gasket V Band Flange Clamp For Dedust Industry 0

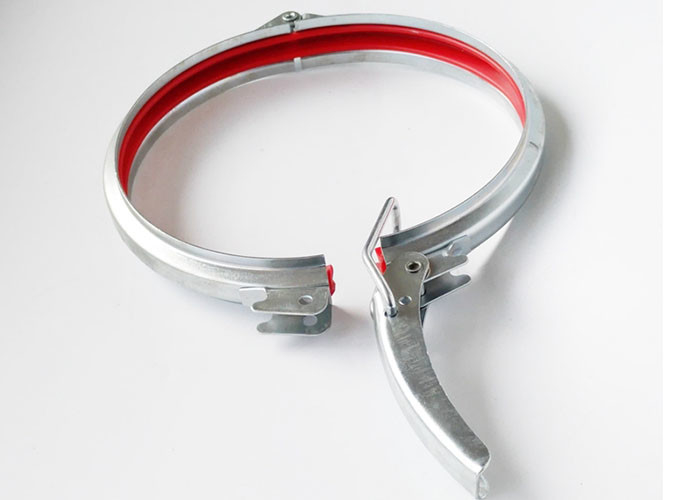

LMG TYPE:

Our another popular similar duct clamp are provided with adjustable bolt lever.

150mm Sealing Gasket V Band Flange Clamp For Dedust Industry 1

Application:



Quick lock duct clamp could be used for standard modular ducting for dust collection, dust extraction, air filtration and particle transport system.

And any other pipeline which needs the air tight requirement.

150mm Sealing Gasket V Band Flange Clamp For Dedust Industry 2



Packing of air duct clamp:



Cartons or wooden cases for mixed sizes.



150mm Sealing Gasket V Band Flange Clamp For Dedust Industry 3

150mm Sealing Gasket V Band Flange Clamp For Dedust Industry 4

150mm Sealing Gasket V Band Flange Clamp For Dedust Industry 5

We accept many OEM clamp production:

150mm Sealing Gasket V Band Flange Clamp For Dedust Industry 6

Company:



We develop and manufacture modular ducting, circular ductwork in galvanised steel, mild steel and stainless steel, along with a full range of ancillary fittings and components. Our ducting system adopts the flanged/lip edge quick connection way, allowing rapid installation with no special tools needed. Products including pressed bends / segmented bends( R=1.5D, R=2D , material involving hot dip galvanised steel sheet DX51D + 275 , mild steel , stainless steel,in thickness 0.75mm, 1.0mm, 1.2mm,2.0mm,3.0mm, diameters from 80mm to 300mm, at 15, 30, 45, 60 and 90 degrees angles ); straight duct pipe, rapid lock pull ring , wide rings, slim rings, flanges,sliding dampers/blast gate in manual and pneumatic, butterfly dampers, clip bands, branch and trouser pieces, throttle valves, diverters, pipe couplings, and many other customized clamps etc.

150mm Sealing Gasket V Band Flange Clamp For Dedust Industry 7



Contact Becky for more information if you have requirement on this clamp:

150mm Sealing Gasket V Band Flange Clamp For Dedust Industry 8

150mm Sealing Gasket V Band Flange Clamp For Dedust Industry 9
