Dust Collection System 150mm Pipe Quick Release Clamp

Dust Collection System 150mm Pipe Quick Release Clamp
Dust Collection System 150mm Pipe Quick Release Clamp Dust Collection System 150mm Pipe Quick Release Clamp Dust Collection System 150mm Pipe Quick Release Clamp

Large Image :  Dust Collection System 150mm Pipe Quick Release Clamp

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YPVBC150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2.5
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: 150mm Quick Release Pipe Clamp For Dust Collection System Type: Duct Clamp / Pipe Clamp
Materials: Carton Steel Or Stainless Steel 304 Band Width: 25mm
ID: 150mm / 6" Gasket: TPE Or Rubber Materials
Surface Finish: Zinc Plated Or Plished Package: Carton Or Wooden Case
Application: Dust Collection / Air Filtration / Pneumatic Conveying Market: USA. Europe, Australia Etc.
High Light:

pipe quick release clamp 150mm

,

dust collection pipe quick release clamp

,

v band clamp 150mm

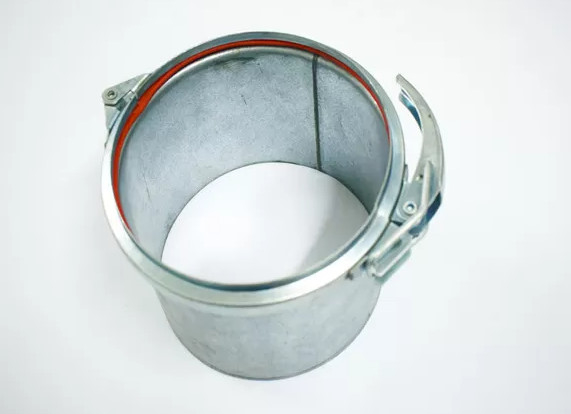

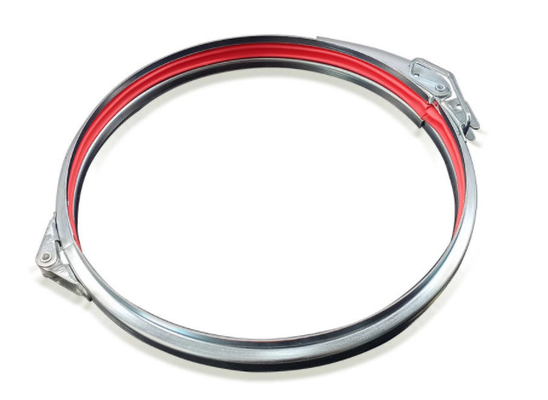

150mm Quick Release Pipe Clamp For Dust Collection System



Description of quick release pipe clamp



This quick release clamp is used to connect and fasten two flanged pipes in dust collection and air filtration. EPDM gasket ring is adhered to the inner wall of the clamp for sealing of ducting, which is fast and convenient to use and install. Rapid lock and quick release design greatly save work time and improve work efficiency.

The material of clamp band is available at carbon steel with galvanzing or stainless steel 304. So the antiseptic is extremely good.

The standard metric size form 80mm up o 600mm. We also supply inch sizes from 4" up to 24".

According to the customer`s requirements and design drawing ,Our factory accept OEM order. We make the tools, arrange the production and guarantee the quality.



Usage: The product applied to the ducting of industrial dust collection and air pollution cleaning, widely used in chemical industry and furniture factory, woodworking factoryand so on.

Lead time of order: in 7 days if stocks available. Mass order depends on the order quantity

Package: We have standard package for clamp. Use carton for smaller quantity, and wooden cases for dozen sizes.



Specification of Quick release pipe clamp:

ΦD/mm
A/mm
H/mm
Thickness/mm
80
28
8
1
100
28
8
1
120
28
8
1
125
28
8
1
140
28
8
1
150
28
8
1
160
28
8
1
180
28
8
1
200
28
8
1
225
28
8
1
250
28
8
1
275
28
8
1
300
28
8
1
315
28
8
1.2
350
28
8
1.2
400
28
8
1.2
450
28
8
1.2
500
28
8
1.2
550
28
8
1.2
600
28
8
1.2



Package of quick release pipe clamp:



  • Carton box for smaller order



Dust Collection System 150mm Pipe Quick Release Clamp 0

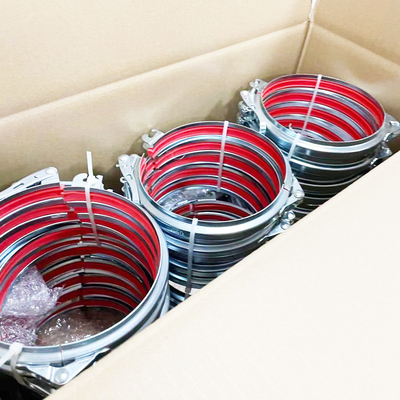

  • Wooden case for big order with dozen of sizes.

Dust Collection System 150mm Pipe Quick Release Clamp 1



Relative pipe / duct clamp for dust collection and particle conveying:



GI rapid lock pipe clamp, wide / slim pull rings, heavy duty bolted clamp, quick release V vand clamp, hanging bracket etc.



Dust Collection System 150mm Pipe Quick Release Clamp 2
