Product Details:
|
| Product Name: | High Temperature Powder Coated 4 Inch 102mm Rain Cap / Exhaust Flapper For Straight Top Stack | Application: | Tractor Bulldozer Farm Truck Roller Exvacator Etc |
|---|---|---|---|
| Usage: | Slilencer Weather Flap Rain Cap Muffler Cover | Materials: | Carbon Steel |
| Size: | 102mm | Thickness: | 1mm 1.5mm |
| Surface Finish: | Black Powder Coating/ Painted | Color Choice: | Black/ Grey / Silver |
| Block Materials: | Steel / Bakelite | MOQ: | 1 Piece |
| Package: | Plastic Bag + Carton + Pallet | ||
| High Light: | 102mm 4 inch rain cap,carbon steel 4 inch rain cap,102mm 4 inch exhaust flapper |
||
Key words: Weather Caps for Truck Top Stack / Exahst stack Rain cap / Silent flapper
|

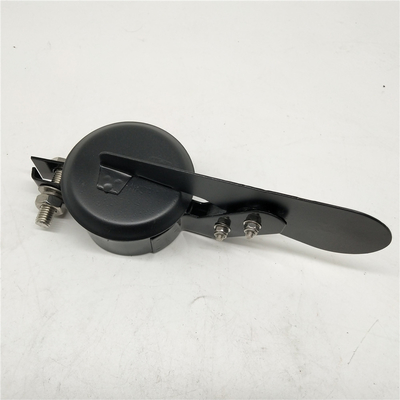

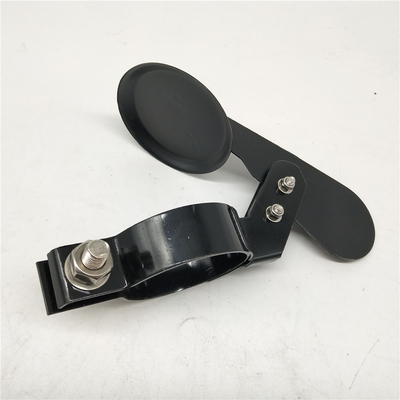

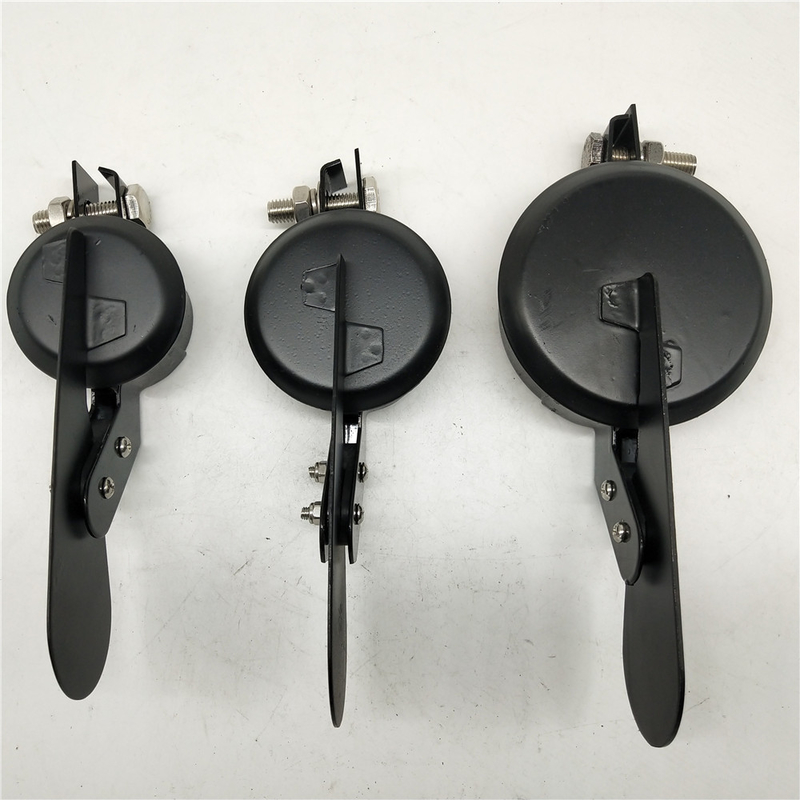

Black Color High Temperature Powder Coated Rain Cap / Exhaust flapper for Straight Top Stack
|
|
| Material | Carton steel |
| Thickness | 1.5mm 2mm |
| Finishing | Black Powder Coated |
| Technique | Metal Stamping |
| MOQ: | 1 pcs |
| Port: | Tianjin port in China |
| Sample: | Free sample available, freight covered by customer |
| Packing: | PP bag+Carton+Pallet |
| Payment Terms: | T/T,L/C at sight,Western Union,Money Gram |
| Brand: | Blank or As customer's brand |
| Delivery: | 5-8 work days after receipt of payment |
Description of exhaust pipe cap:
Besides preventing damage, these caps can also add a touch of class to your exhaust system. Whether you want a chrome rain cap to match your chrome stack or need to find an aluminized zinc rain cap for a straight stack, we have an array of stock to meet your needs and fit your rig. These caps are designed to be rust resistant, further adding to the benefits they provide. Caps are available in various sizes, including 3, 5, 6, 7, 8 and 9 inches. Products are available for straight, muffler or single stacks. For dual stacks, kits are available that make installation easy and simple. These kits have no moving parts and come with two stack hats, an extension pole and storage bag. If you are hauling other equipment, consider getting a hook-and-strap cover for extra protection on your priceless cargo.
Application of exhaust rain cap:
Suitable for: wheel loaders, excavators, roller, harvester, tractor, emergency generators, construction machinery, trucks. Reliably prevents water from entering the exhaust pipe and engine. Weather cap to prevent water snow and debris from entering your exhaust pipe. Universal fit for many exhausts on tractors skidsteers dozers and other heavy equipment. We have many other sizes available.
Specification of exhaust pipe rain cap / weather cover:
| Item Number | Min Exhaust OD | Max Exhuast OD | Color choice |
| EXRC125 | 1.25" | 1 7/16" | Sliver, black, grey or as request |
| EXRC150 | 1.5" | 1 11/16" | |
| EXRC020 | 2" | 2 3/16" | |
| EXRC214 | 2 1/4" | 2 7/16" | |
| EXRC212 | 2 1/2" | 2 11/16" | |
| EXRC234 | 2 3/4" | 2 15/16" | |
| EXRC030 | 3" | 3 3/16" | Surface treatment |
| EXRC314 | 3 1/4" | 3 7/16" | Zinc-plated, Chrome plated, powder painted etc. |
| EXRC312 | 3 1/2" | 3 11/16" | |
| EXRC334 | 3 3/4" | 3 15/16" | |
| EXRC040 | 4" | 4 3/16" | |
| EXRC414 | 4 1/4" | 4 7/16" | |
| EXRC412 | 4 1/2" | 4 11/16" | |
| EXRC434 | 4 3/4" | 4 15/16" | |
| EXRC050 | 5" | 5 3/16" | |
| EXRC514 | 5 1/4" | 5 7/16" | |
| EXRC512 | 5 1/2" | 5 11/16" | |
| EXRC534 | 5 3/4" | 5 15/16" | |
| EXRC060 | 6" | 6 3/16" | |
| OEM design | Availabe | Available | Available |
High temperature powder coated ran cap:
Galvanized flap cover:
Stainless steel 304 flap cover:
There are several deciding factors on the type of rain cap finish you should select.
1.Price: If you're looking for the most economical type of rain flapper, choose the painted rain caps. The base material is carbon steel and paint is relatively inexpensive.
2.Durability: Will the rain cap be exposed to a corrosive environment such as a chemical plant? Or be see operation on a continuous basis such as a primary gen set?Consider a stainless steel rain cap as its base construction of 304 or 316 stainless steel can withstand a large degree of chemicals and operating conditions.
3.Exhaust temperatures: Natural gas engines can have exhaust temperatures exceeding 1200 degrees Fahrenheit. In these applications, consider using a stainless steel rain cap made of 304 or 316. Aluminum rain caps can also be used on higher temperature exhaust systems of 1000 degrees Fahrenheit intermittent. Carbon steel, painted rain caps can operate at exhaust temperature up to 800 degrees Fahrenheit intermittently. The paint on these exhaust flappers are designed for higher operating temperatures. The chrome plating on the chrome rain caps can burn off at higher exhaust temperatures (i.e. above 500 degree Fahrenheit).
4.Aesthetics: Rain cap going onto a show tractor? Go with a high luster finish such as chrome. A stainless steel rain cap can also be eye pleasing, but doesn't have the high luster finish of a chrome rain cap.
Packaging and delivery of exhaust rain cap:
|
Packaging
|
Plastic bag + carton + pallet / wooden crate |
| Lead time |
|
|
Shipment terms
|
EXW, FOB, CIF, CIF etc |
|
Payment terms
|
T/T, western union, L/C at sight |
Please be free to contact me for details.
