Stainless Muffler Clamp 2 Inch 31.8mm Width Band

I'm Online Chat Now

Stainless Muffler Clamp 2 Inch 31.8mm Width Band

Stainless Muffler Clamp 2 Inch 31.8mm Width Band
Stainless Muffler Clamp 2 Inch 31.8mm Width Band Stainless Muffler Clamp 2 Inch 31.8mm Width Band Stainless Muffler Clamp 2 Inch 31.8mm Width Band Stainless Muffler Clamp 2 Inch 31.8mm Width Band

Large Image :  Stainless Muffler Clamp 2 Inch 31.8mm Width Band

Product Details:
Place of Origin: China
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD0.8-1.0 PER PIECE
Packaging Details: Plastic bag + seaworthy carton
Delivery Time: In 3 days if stocks available
Payment Terms: L/C T/T WESTERN UNION MONEYGRAM
Supply Ability: 10000 Pieces Per Month

Stainless Muffler Clamp 2 Inch 31.8mm Width Band

Description
Product Name: SS304 Exhaust Seal Clamp 2 Inch With 31.8mm Width Band For Muffler / Exhaust Tip / Tailpipe / Catalytic Converters Type: Exhaust Clamp
Dimension Choice: 2" 2.25" 2.5" 2.75" 3" 3.5" 4" 4.5" 5" 6" Band Materials: Stainless Steel 304 Or Galvanized Steel
Band Width: 31.8mm Band Thickness: 1.8mm
Application: Universal Muffler / Downpipe /catback Pipe Finishing: Cleaning And Polishing
Bloack Materials: Aluminum Style: Band Clamp
Feature: Low Cost And High Performance
High Light:

2 inch stainless muffler clamp

,

31.8mm stainless muffler clamp

,

31.8mm stainless steel exhaust band clamp

SS304 Exhaust Seal Clamp 2 Inch With 31.8mm Width Band For Muffler / Exhaust Tip / Tailpipe / Catalytic Converters

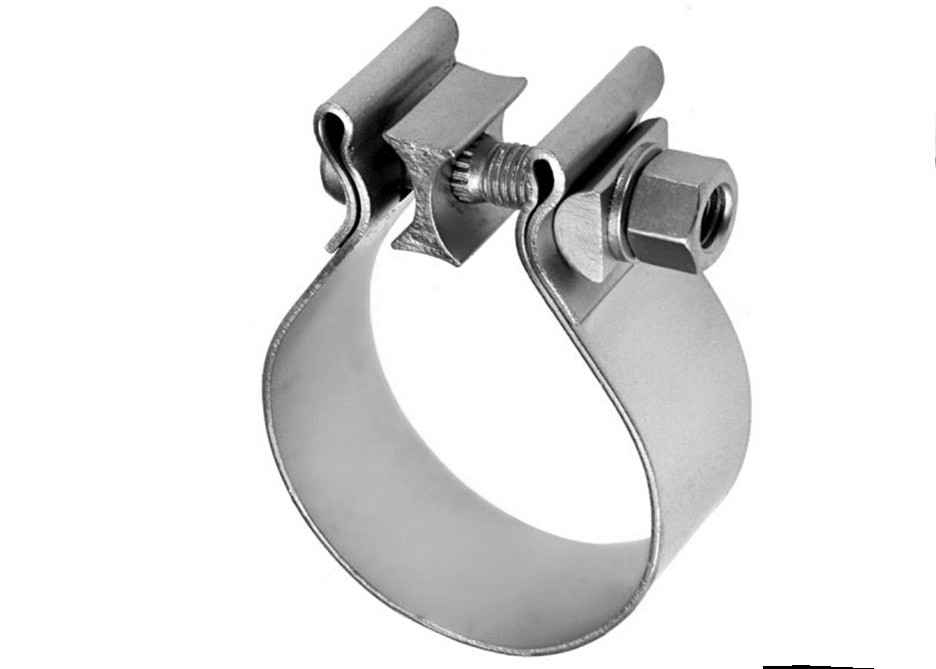

Stainless Steel Narrow band exhaust clamps provide simple and effective way to connect the exhaust system, with the help of I shape reaction block , such clamp will tighten the exhaust components but without any damage to the pipe. It has advantages of good design structure, 360° sealing environment, low cost and corrosion resistance. Applied for universal automotives.

1)material: zinc plated steel or 304 stainless steel / SUS304
2)bandwidth:31.8mm
3)thickness:1.8mm
4)finishing:cleaning and polishing
5)usage:for sliencer exhaust muffler downpipe

Feature of narrow band clamp

1)The band clamp is a strap of metal, usually stainless or galvanized steel, which will wrap around the exhaust pipe joints easily. Because of the good design structure, this exhaust clamp helps to minimize the part number and maximize the material usage to reduce the weight.High-strength fastener hardware with corrosive resistant coating.
2)Easy to assemble only one assembly torque point.
The band is a pre - formed ring, which brings low cost and cheap unit price.

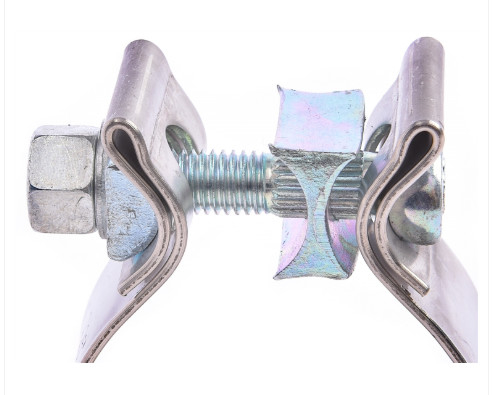

3)Exclusive reaction block, the reaction block provides a full 360°equal distribution of stretching forces, prohibiting pipe
distortion while completing a seal around the joined exhaust components.



Specification of muffler band clamp:



Available in a wide range of sizes, customized dimension are welcome.



Model Number
ID Metric dimension
ID Inch dimension
Thickness
YP-EXFBCN200
51mm
2"
1.8mm
YP-EXFBCN225
57mm
2.25"
YP-EXFBCN250
64mm
2.5"
YP-EXFBCN275
70mm
2.75"
Materials
YP-EXFBCN300
76mm
3"
Galvanized steel or SUS 304 stainless steel
YP-EXFBCN350
89mm
3.5"
YP-EXFBCN400
102mm
4"
YP-EXFBCN450
114mm
4.5"
Finishing
YP-EXFBCN500
127mm
5"
Cleaning and polishing
YP-EXFBCN600
152mm
6"



Application of narrow band clamp:



Stainless Steel Narrow band exhaust clamp can be used in many industries, pipes, exhaust tips, tailpipe , catalytic converters , muffler repair projects, catback systems, racing exhaust ,show cars, exhaust manifold, exhaust resonator, exhaust flex pipe and more.

Stainless Muffler Clamp 2 Inch 31.8mm Width Band 0





Packaging & Delivery of exhaust clamp



To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.



Usually packaging Seaworthy carton w/wo pallet
Particular packaging As customer's request, but have additional fee



Stainless Muffler Clamp 2 Inch 31.8mm Width Band 1



Company information:



As a leading producer of exhaust clamps in China, we aim to supply best price and high-qualited products on the market to our clients.There are many designs and dimensions for your choice. Our exhaust clamp included stainless steel V band clamp, clamp kits, butt joint band clamp,  lap jointed clamp,  galvanized U bolted clamp, sleeve coupling, mounting bracket etc.

Stainless Muffler Clamp 2 Inch 31.8mm Width Band 2



Stainless Muffler Clamp 2 Inch 31.8mm Width Band 3

Please be free to contact me for details. Thanks.
