1.75 X 8 X 12 Inch Braided Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch

1.75 X 8 X 12 Inch Braided Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch
1.75 X 8 X 12 Inch Braided Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch 1.75 X 8 X 12 Inch Braided Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch 1.75 X 8 X 12 Inch Braided Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch

Large Image :  1.75 X 8 X 12 Inch Braided Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch

Product Details:
Place of Origin: Hebei
Brand Name: YP
Model Number: YP-EXF175
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD2.85 PER PIECE
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION MONEYGRAM
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Item Name: 1.75 X 8 X 12 Inch Exhaust Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch Double Braids Welded Extension Pipe Inside Diameter: 1.75 Inch /45mm
Bellow Materials: Stainless Steel 201 Or SUS304 Wire Braided Body: 8 Inch / 200mm

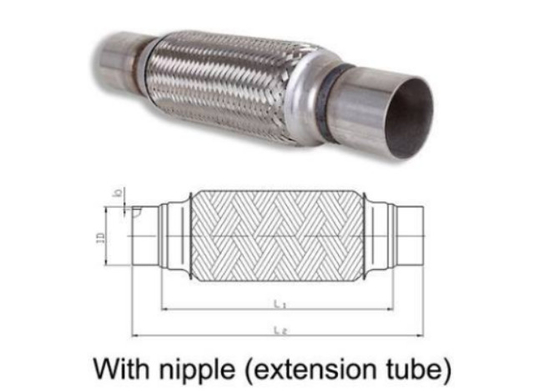

Overall Length: 12 Inch / 300mm Structure: Inner Braided + Outer Braided + Nipple / Extension Pipe
Cap / Collar Materials: Aluminized Steel Or Stainless Steel For Alternative Bellow No.: Single Layer Or Double Layers
Application: Car / Truck Exhaust System Feature: No Leak And Suitable Flexibility
Main Market: Lybia, Pakistan, Turkey, Iran, UAE, Southeast Asia Etc
High Light:

1.75 x 8 x 12 inch braided flex pipe

,

overall 12 inch braided flex pipe

,

1.75 inch stainless steel exhaust flex pipe

1.75 x 8 x 12 Inch Exhaust Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch Double Braids Welded Extension Pipe



Diameter (IN) : 1-3/4 Inch Length (IN) : 12 Inch  Finish : Natural  Color : Silver  Material : Stainless Steel Mesh With Aluminized Tubing

  • Applicable to Exhaust pipe Inlet: 1.75 inch
  • Exhaust pipe with Double Braided provides a highly flexible tube design
  • Manufactured from stainless steel for durability and corrosion resistance
  • Please confirm the size before you purchase.Offered in a variety of styles and sizes for your installation needs
  • way to install : Welded



Usage:



1) Flexible pipe, automobile exhaust system component
2) Installed between engine and muffler
3) Used to decrease engine noise and vibration
4) Absorbs exhaust pipe thermal expansion





Short introduction of exhaust flexible pipe:



Discription Exhaust Flexible Pipe Parts No. YP-EXF175
Inside diameter 1.75" / 45mm Style Exhaust pipe with double wire braid

Bellow length



8 inch / 200mm Overall lenth 12 inch / 300mm
Flex pipe Material Stainless steel 304 201 Joint Material Aluminized steel or stainless steel for alternative
Car Make Universal Application Flexible Exhaust pipe for various brand car, bus, truck, and so on.
Packing Plastic bag and seaworthy box Package Quantity 1 pcs
Brand YP Place of Origin Tianjin, China
Certificate ISO Warranty



One Year




1.75 X 8 X 12 Inch Braided Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch 0



Flex pipe are used to isolate engine vibration to your exhaust components, and prevent cracks in your downpipes, cat-backs headers and turbo manifolds. We have introduced Stainless Steel Flex Couplers that have bellows with interlocking lining to help increased exhaust flow through the coupler, and prevent excessive back pressure to build. These are the only type of flex coupler that can withstand high pre-turbo exhaust temperatures, meaning you can use these flex couplers when complex turbo header designs are needed to prevent turbo header cracks. Perfect for turbo downpipes! We use stainles throughout which means it will NEVER rust! Competitiors products that don't mention this use stainless that will rust!

What is a Flex Pipe?

A flex pipe, also sometimes known as a flex coupling, is a section of bellowed steel that is designed to absorb vibrations from the engine and from the motion of the vehicle, which prevents other components from being broken or cracked. Some parts of the exhaust system such as exhaust manifolds, (which are often made of cast iron) are brittle and easily break. Flex pipes prevent these components from being exposed to excessive stress.

How to use this Flex Pipe

Measure the outside diameter (OD) of your exhaust pipe where you will be installing the flex pipe. Then, measure the length of the flex pipe that you are replacing (do not only measure the visible flex portion, flex pipes are always measured from weld to weld). Once you have these dimensions, use the chart above to determine the proper part # to purchase. Some flex pipes come with the option of pipe extensions already welded on to the flex. Extensions give you the option to expand the pipe size, if needed, for those odd-ball sized exhaust systems. Extensions allow for easier installation in some situations, and also allow for clamping. However, we always recommend welding to ensure a proper seal. Please note: flex pipes without extensions CANNOT be clamped, and must be welded. If your application requires a flex pipe next to an exhaust flange, DO NOT weld the flex pipe directly to the flange. Instead, weld it to exhaust pipe and weld the pipe to the flange. Flex pipes are NOT intended to replace bends such as those found in tailpipes. Flex pipes are NOT intended to be installed near the engine as it will cause it to overheat. Such use is likely to damage the flex and is NOT covered by warranty.


Bear River Flex Pipes

Flex pipes can be made from a variety of different materials and can also differ in their construction techniques. Some companies use ordinary steel and/or may use aluminized steel (ordinary steel with an aluminum-based coating) which can rust and corrode. These materials typically do not last very long compared to stainless steel. Additionally, many competitors will crimp the fittings together, which allows water to become trapped in the crimped joint, encouraging corrosion. Some flex bellows are formed as a continuous helix, which can create exhaust turbulence and, in general, indicates that poor construction techniques are used. Competitors also have a loose braid pattern on the outer coverings (and inner coverings, if even present), which allows the flex to stretch too far, causing premature failure.




Hot sale Specification of exhaust flexible pipe:



Inner Diameter (ID) Flex Length(L) Overall Length(L)
1-3/4” (45mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
48mm 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
2”(50.8mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
54mm 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
2-1/4”(57.2mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
2-1/2”(63.5mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
3”(76.2mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
Note: Customized size are available



Packaging of exhaust flexible pipe:



25pcs per carton. film bag for each product. Mark as request.

1.75 X 8 X 12 Inch Braided Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch 1



1.75 X 8 X 12 Inch Braided Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch 2



We are a leading supplier of exhaust flexible pipe / connectors in China. You can find any models and sizes you need in our facxtory.
Also welcome OEM/ODM service.

1.75 X 8 X 12 Inch Braided Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch 31.75 X 8 X 12 Inch Braided Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch 4
1.75 X 8 X 12 Inch Braided Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch 51.75 X 8 X 12 Inch Braided Flex Pipe 1 3/4 Inch Inside Diameter Overall 12 Inch 6
